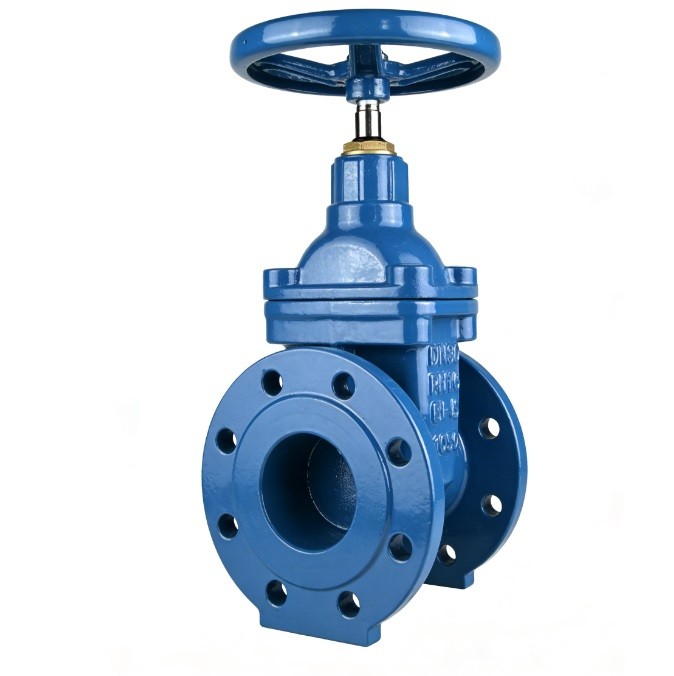

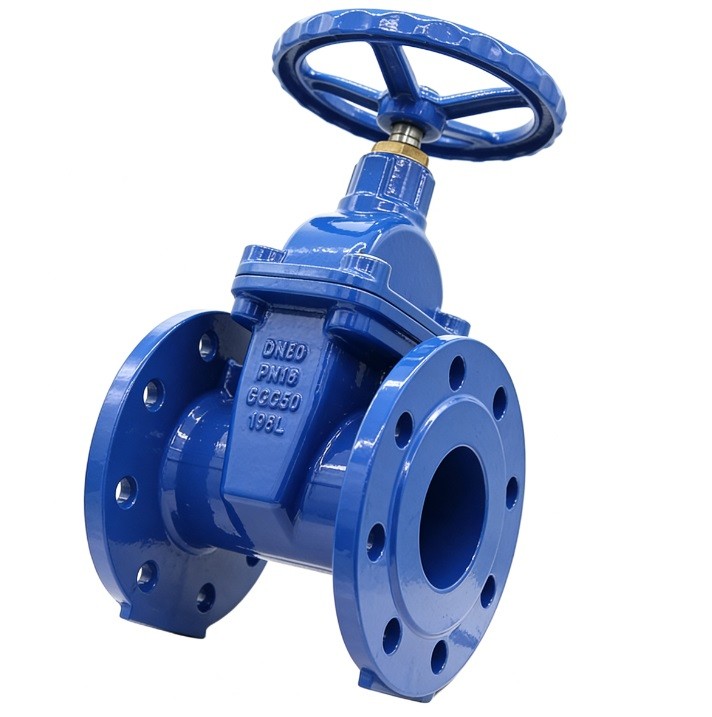

DIN F4 NRS Resilient Seated Gate Valve

A DIN F4 NRS Resilient Seated Gate Valve is a specialized industrial valve used primarily for isolating flow in water, wastewater, and sewage systems. It is designed according to German (DIN) standards, emphasizing a compact design and a leak-proof seal.

Here is a brief breakdown of its key components and features:

1. Key Terminology
DIN F4: Refers to the "Face-to-Face" dimension standard (DIN 3202-F4). This signifies a short-body design, making it ideal for installations where space is limited compared to the longer "F5" version.

NRS (Non-Rising Stem): The stem (the screw that moves the gate) rotates but does not move up or down physically. This is beneficial for underground installations or tight spaces because the valve's height remains constant during operation.

Resilient Seated: Unlike traditional metal-seated valves, the gate (wedge) is fully encapsulated in a high-grade elastomer (usually EPDM or NBR). This rubber-to-metal contact ensures a "bubble-tight" seal and allows the valve to seal over small debris.
