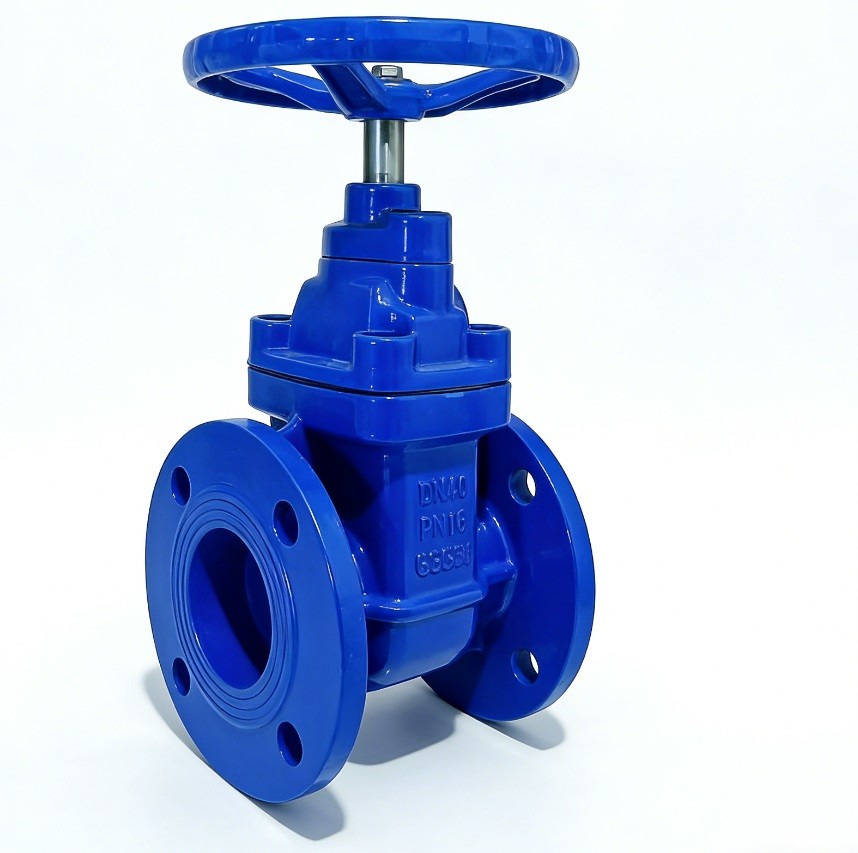

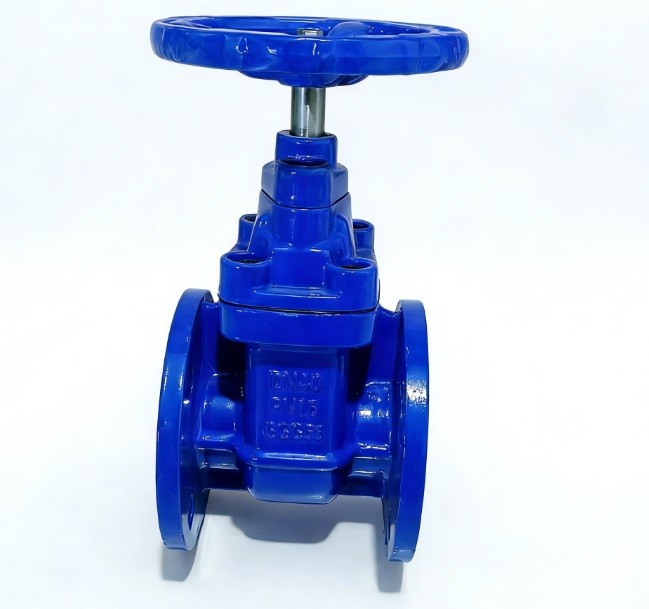

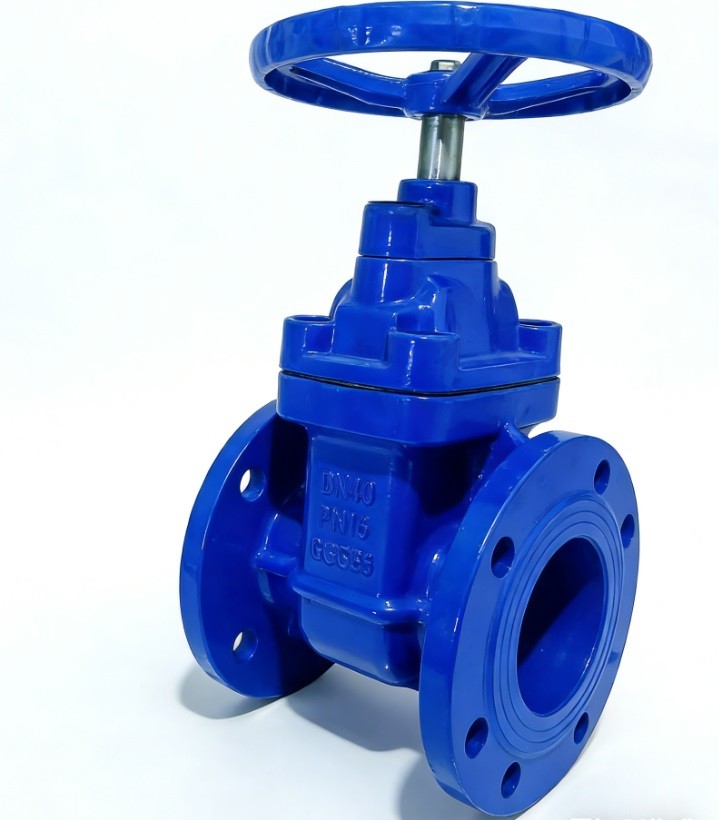

A DIN 3202 F4 NRS Metal Seated Gate Valve is a robust isolation valve designed for industrial and utility applications where high durability is required. Unlike resilient seated valves that use rubber, this valve relies on high-precision metal-to-metal contact between the gate and the body seats to achieve a shut-off.
1. Key Terminology
DIN 3202 F4: Refers to the "Short Series" face-to-face length standard. This compact design saves space in tight piping arrangements.
NRS (Non-Rising Stem): The stem rotates to move the gate but does not move vertically. This makes it the preferred choice for underground service or areas with limited overhead space.
Metal Seated: The sealing surfaces are made of metals (usually brass, bronze, or stainless steel). This design is more resistant to wear, high temperatures, and abrasive fluids than rubber-seated versions.
Technical Attributes
1,Design Standard,DIN 3352 Part 2 / EN 1171
2,Face-to-Face Length,DIN 3202 F4 (Short Series) / EN 558 Series 14
3,Stem Type,NRS (Non-Rising Stem) / Inside Screw
4,Pressure Class,PN10 / PN16
5,Body Material,Cast Iron (GG25) or Ductile Iron (GGG40/50)
6,Bonnet Material,Same as Body (GG25 or GGG40/50)
7,Wedge Material,Cast Iron or Ductile Iron with Metal Facing
8,Seat Ring Material,"Brass, Bronze, or Stainless Steel"
9,Wedge Ring Material,"Brass, Bronze, or Stainless Steel"
10,Stem Material,Stainless Steel AISI 420 / 304 or Brass
11,Stem Sealing,Gland Packing (Graphite/PTFE) or O-rings
12,Tightness Class,EN 12266-1 Rate B / Rate C (Metal-to-Metal)
13,Flow Passage,Full Bore (Straight through)
14,Bottom Design,Sump/Groove at the base for wedge seating
15,Flange Drilling,EN 1092-2 / DIN 2501
16,Shell Test Pressure,"1.5×PN (e.g., 24 Bar for PN16)"
17,Seat Test Pressure,"1.1×PN (e.g., 17.6 Bar for PN16)"
18,Operation,"Handwheel, Square Nut, or Gearbox"
19,Temperature Range,0°C to +120°C (Higher with special packing)
20,Coating,Anti-corrosive primer or Blue Epoxy coating
21,Stem Nut,High Tensile Brass / Bronze
