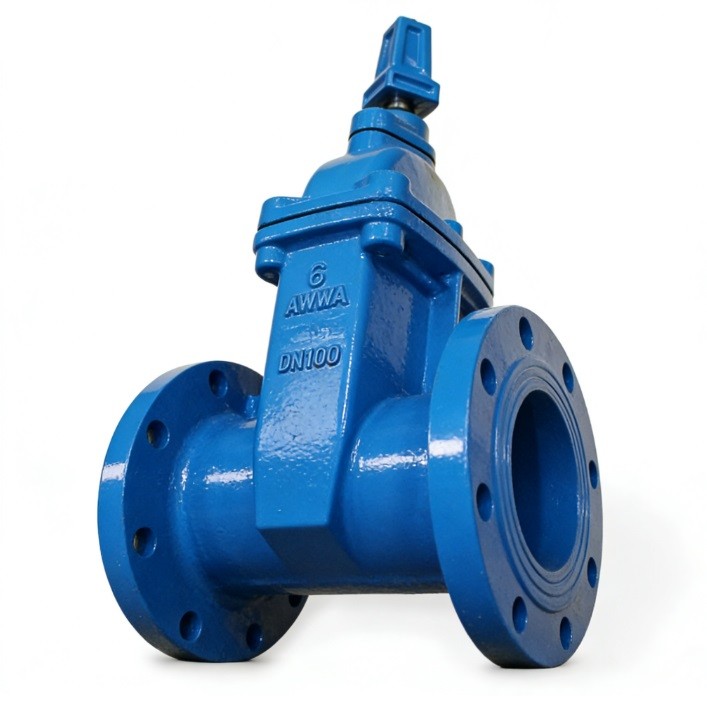

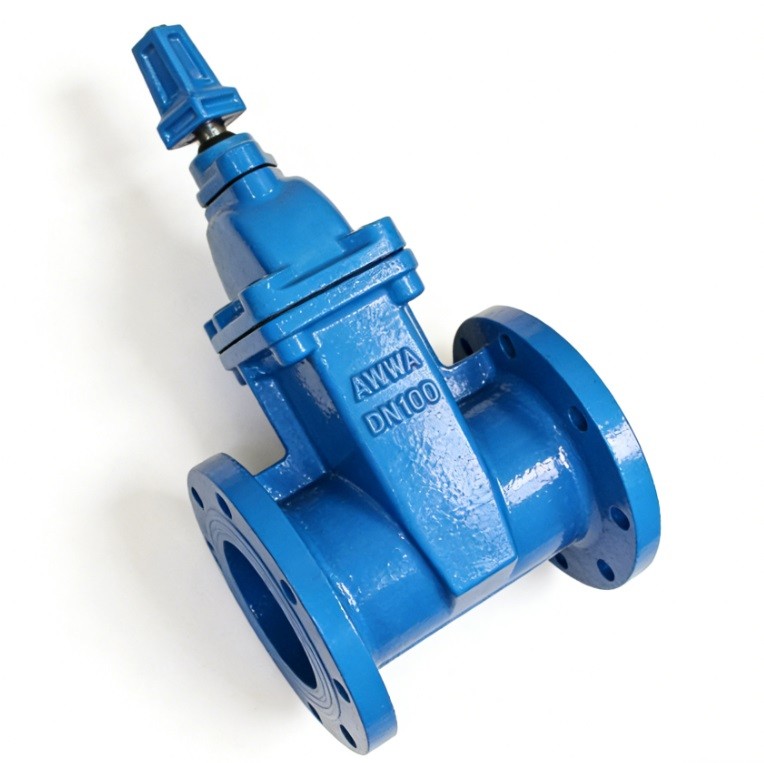

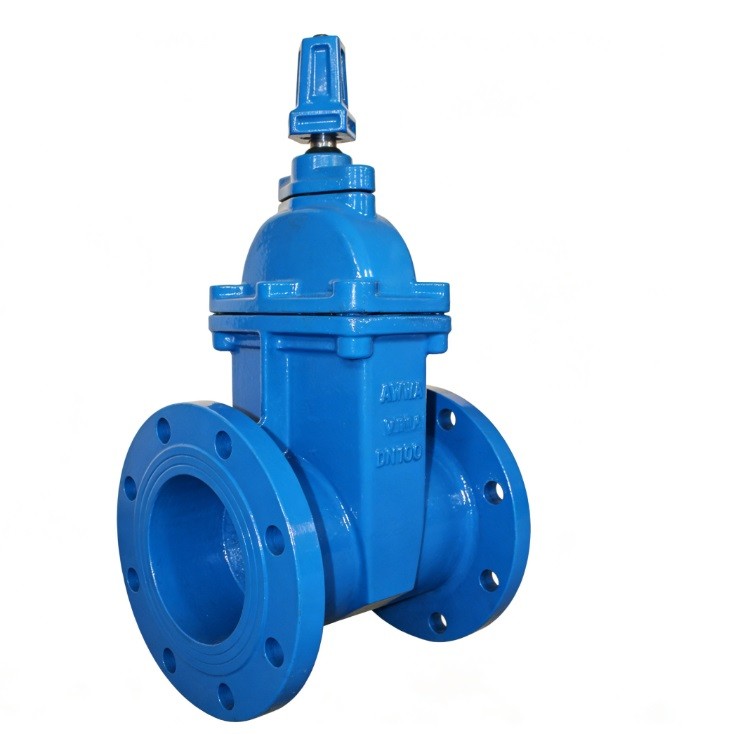

An AWWA Resilient Seated Gate Valve is a heavy-duty isolation valve designed according to the standards set by the American Water Works Association (AWWA), specifically the C509 or C515 specifications. These valves are the industry standard for North American water distribution, fire protection, and wastewater systems.
The "resilient seat" design replaces the older metal-to-metal contact with a rubber-encapsulated wedge, providing a high-performance seal and a zero-leakage guarantee.
1. Key AWWA Standards
AWWA C509: Covers resilient-seated gate valves with a Cast Iron or Ductile Iron body (standard wall thickness).
AWWA C515: Covers Reduced Wall Ductile Iron resilient-seated gate valves. This is the more modern, lightweight, yet high-strength standard widely used today.
UL/FM Approval: Many AWWA valves are also UL Listed and FM Approved, making them suitable for fire protection main headers and hydrant systems.
Technical Attributes incluld
1,Design Standard,AWWA C515 (Ductile Iron) / AWWA C509 (Cast Iron)
2,Size Range,"2"" to 24"" (Standard); up to 48"" for large scale"
3,Pressure Rating,200 psi / 250 psi / 300 psi
4,Sealing Type,Resilient Seated (Zero Leakage)
5,Body & Bonnet,Ductile Iron ASTM A536 (65-45-12)
6,Wedge Material,Ductile Iron fully encapsulated in EPDM or SBR
7,Stem Type,NRS (Non-Rising Stem) or OS&Y (Rising Stem)
8,Stem Material,Stainless Steel (Type 304/316) or Bronze
9,Stem Sealing,"Triple O-ring seals (Two above, one below thrust collar)"
10,Internal/External Coating,Fusion Bonded Epoxy (FBE) per AWWA C550
11,Coating Thickness,10-12 Mils (Minimum)
12,Face-to-Face Dim.,Per ASME B16.10
13,End Connections,"Flanged, Mechanical Joint (MJ), or Threaded"
14,Flange Standard,ASME B16.1 / B16.42 (Class 125/150)
15,Testing Standard,AWWA C515 / MSS SP-70
16,Operation,"2"" Square Nut (for T-key) or Handwheel"
17,Stem Nut,Bronze (ASTM B584)
18,Bore Type,Full Bore / Smooth Way (No bottom pocket)
19,Working Temp,Up to 140°F (60°C) for potable water
20,Bolting,Stainless Steel 304/316 (Zinc plated or encapsulated)
21,Approvals,"NSF/ANSI 61 & 372, UL Listed, FM Approved"
