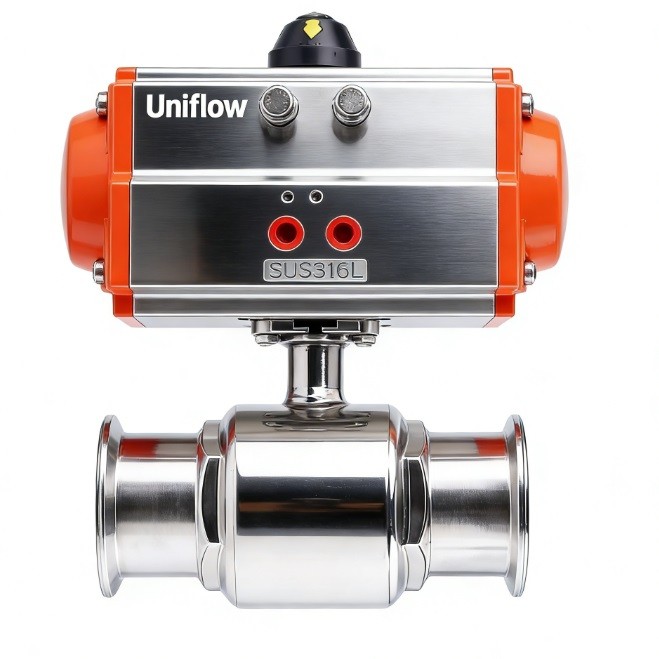

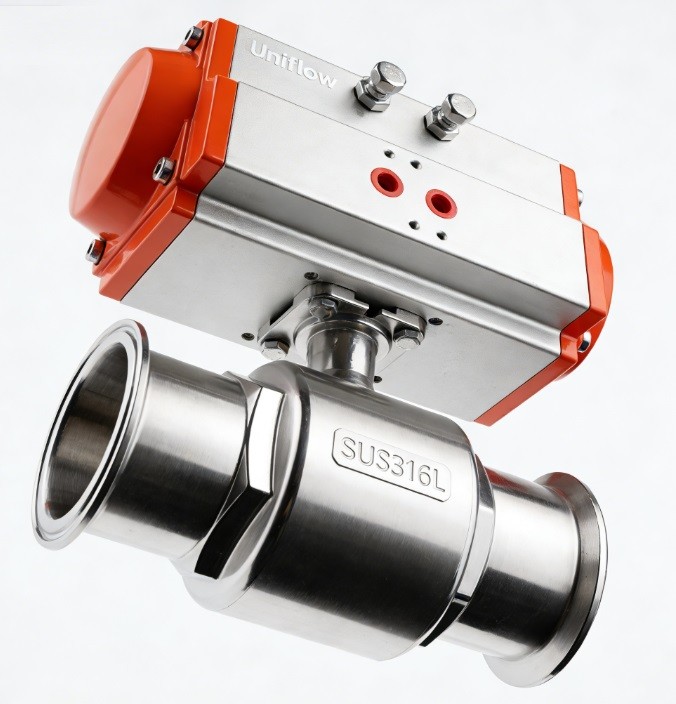

The Hygienic Tri-Clamp Pneumatic Ball Valve is an automated, high-precision valve designed for critical sanitary processes. It combines a SS316L ball valve body with a pneumatic actuator for remote flow control. Featuring Tri-Clamp ends for easy maintenance and fully encapsulated PTFE seats to eliminate bacterial "dead zones," it is the industry standard for automated systems handling viscous fluids. It is 3A/FDA compliant and fully CIP/SIP compatible.
Technical Attributes: Hygienic Tri-Clamp Pneumatic Ball Valve
1,Size Range,1/2" to 4" (DN15 – DN100)
2,Body Material,Forged or Investment Cast Stainless Steel 316L
3,Actuator Type,Rack & Pinion (Stainless Steel or Anodized Aluminum)
4,Connection,Tri-Clamp (ASME BPE / ISO 2852)
5,Flow Design,Full Bore (Zero pressure drop; piggable)
6,Seat Material,Fully Encapsulated PTFE (Cavity Filler)
7,Internal Finish,Mirror Polish Ra≤0.4μm
8,External Finish,Satin or Bright Polish Ra≤0.8μm
9,Operation Mode,Spring Return (Fail-Safe) or Double Acting
10,Control Medium,Compressed Air (5.0 to 7.0 bar)
11,Max Line Pressure,10 bar (145 psi) standard
12,Temp. Range,−20∘C to +150∘C (Sterilization to +180∘C)
13,Mounting Standard,ISO 5211 Direct Mount (No brackets required)
14,Compliance,"3-A Sanitary, FDA 21CFR177.1550, USP Class VI"
15,Accessories,"Optional Solenoid, Limit Switch Box, or C-Top"
