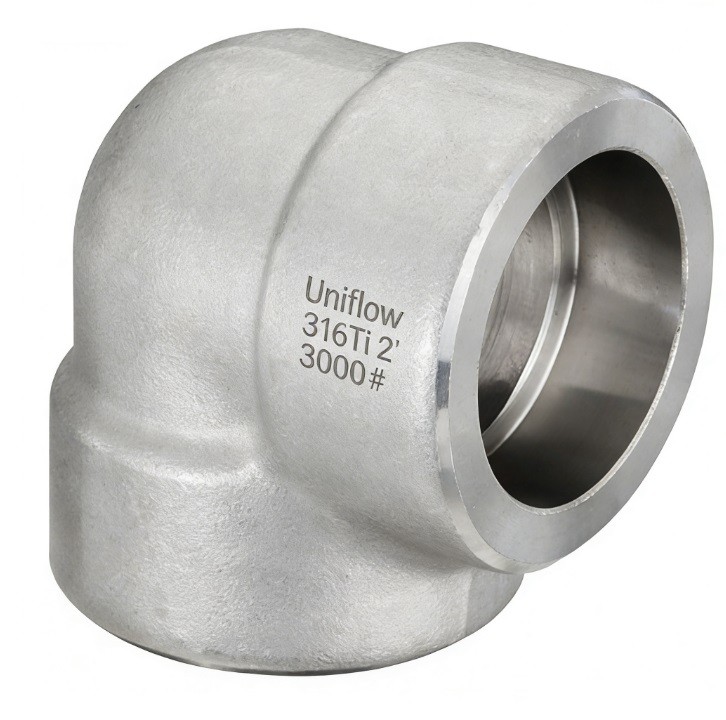

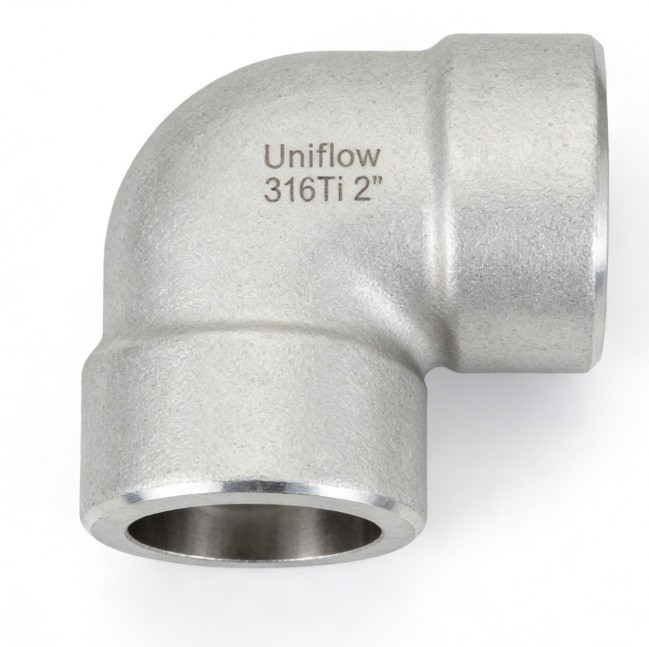

The ASME B16.11 Forged Stainless Steel 3000# Socket Weld Elbow is a heavy-duty fitting used for high-pressure, small-bore piping. Forged from premium grades like 316L or 304L, it provides exceptional corrosion resistance and hygienic integrity. The socket weld design allows for easy pipe insertion and rapid welding, creating a permanent, leak-proof joint. Rated for 3000 PSI, it is a staple in pharmaceutical, chemical, and offshore sectors where safety and resistance to aggressive media are critical.
Technical Attributes: 3000# SS Socket Weld Elbow
Standard,ASME B16.11 / BS 3799
Material Grades,"ASTM A182 F304/L, F316/L, F321, F347"
Fitting Type,90° or 45° Socket Weld Elbow
Pressure Rating,3000 LBS (Class 3000)
Size Range,1/8" to 4" (NPS)
Manufacturing,"Forged, Solution Annealed, Machined"
End Connection,Socket Weld (SW)
Chromium Content,16.0%–20.0%
Nickel Content,8.0%–14.0%
Molybdenum (316L),2.0%–3.0%
Tensile Strength,≥485 MPa (70 ksi)
Yield Strength,≥170–205 MPa
Heat Treatment,Solution Annealing & Water Quench
Testing Standard,"PMI, UT, PT (Liquid Penetrant), Hydro"
Hardness,≤192 HBW
Surface Finish,Pickled and Passivated
Certification,EN 10204 3.1 / MTR
Marking,"Grade, Rating, Size, Heat No, B16.11"
Primary Use,"Sanitary, Chemical, & High-Pressure Fluid"
