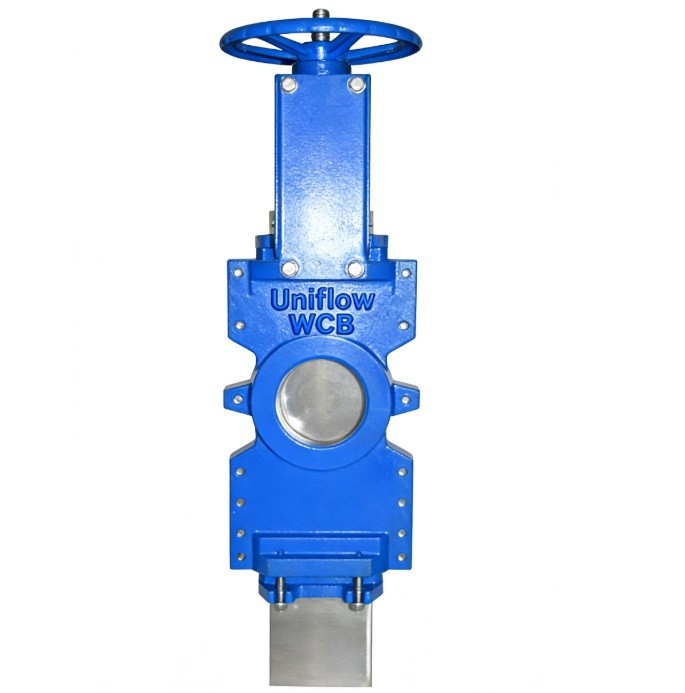

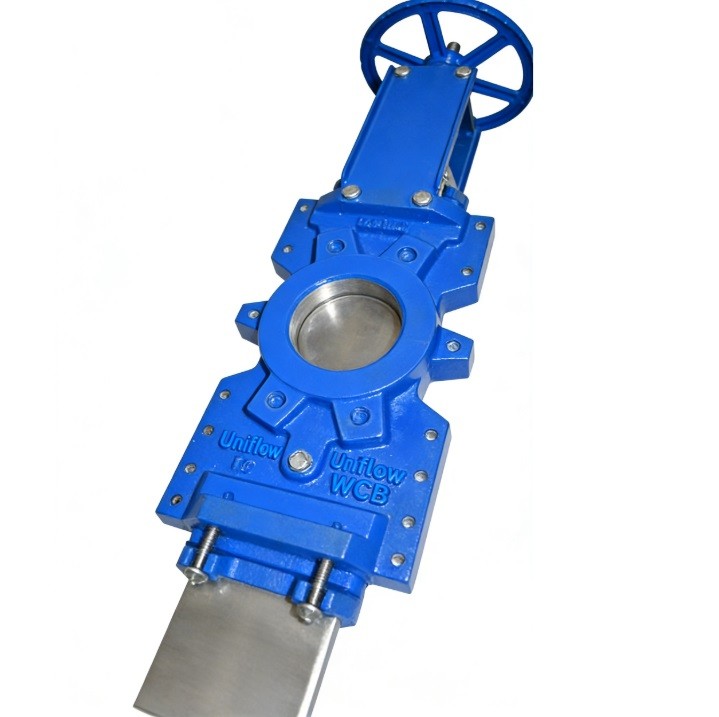

The Through Conduit Knife Gate Valve features a unique "O-port" gate design where a circular opening is machined into the sliding plate. Unlike standard gates, the plate is always in contact with the seats, protecting them from the media flow. When open, the conduit provides a smooth, unobstructed bore, making it the premier choice for high-concentration slurries, recycled paper pulp, and heavy mining fluids where clogging or seat erosion must be avoided.
Technical Attributes: Through Conduit Knife Gate Valve
Body Material,WCB / CF8 / CF8M / Ductile Iron
Gate Type,Through Conduit (O-Port / Slider)
Sealing Type,Bidirectional (Dual Seat)
Bore Design,Full Bore / Circular Port
Pressure Rating,PN10 / PN16 / Class 150
Size Range,DN50 - DN1200 (2" to 48")
Seat Material,EPDM / NBR / PTFE / Metal-to-Metal
Gate Material,AISI 304 / 316 / 316L (Polished)
Operation,Manual / Pneumatic / Electric / Hydraulic
Design Standard,MSS SP-81 / ASME B16.34
Face-to-Face,MSS SP-81 / Manufacturer Standard
Connection,Wafer / Lug / Flanged
Packing,PTFE / Synthetic Fiber with NBR Core
Temperature Range,−29℃ to +200℃ (Seat dependent)
Testing Standard,API 598 / MSS SP-81
Coating,Epoxy Powder Coating (Carbon Steel Body)
Stem Type,Rising or Non-Rising Stem
Applicable Media,"High-density Slurry, Pulp, Bulk Solids"
