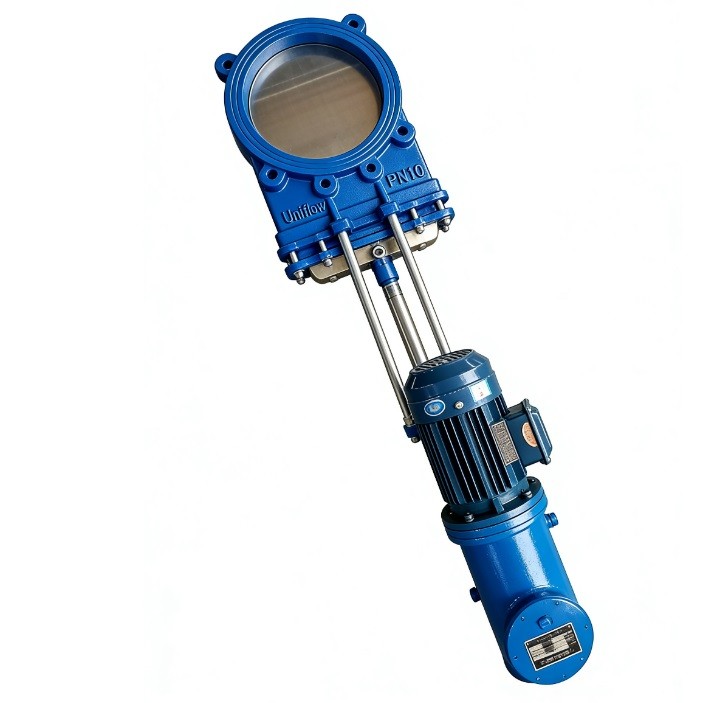

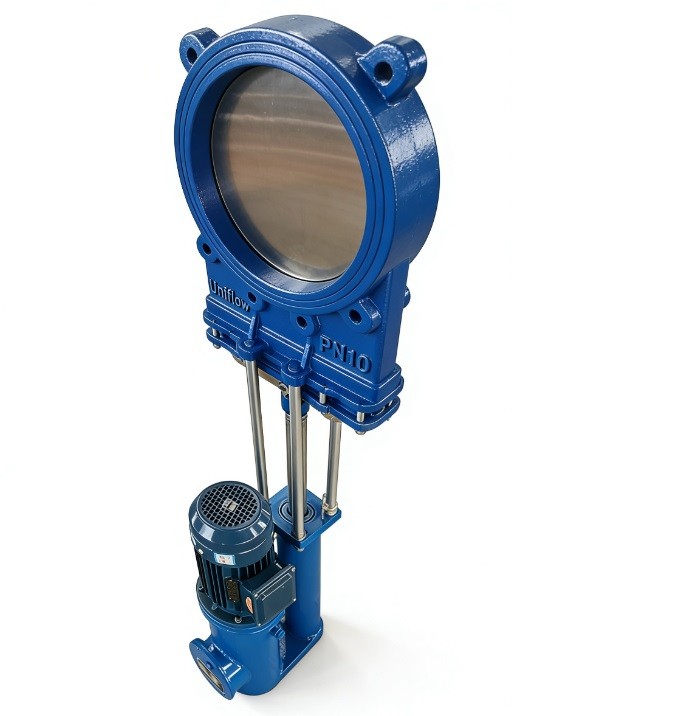

The Electric Hydraulic Bi-directional Knife Gate Valve is a heavy-duty automation solution for high-cycle slurry and wastewater service. It utilizes an integrated electro-hydraulic actuator to provide massive thrust for cutting through thick media while maintaining a bubble-tight seal in both flow directions. The bi-directional design prevents seat displacement under backpressure, making it ideal for complex piping networks, mining tailings, and pump stations requiring remote, high-torque operation.
Technical Attributes: Electric Hydraulic Knife Gate Valve
Actuation Type,Electro-Hydraulic (Self-contained Pump/Cylinder)
Sealing Type,Bi-directional (Dual-seat Sealing)
Power Supply,220V / 380V / 440V AC (Standard 3-Phase)
Body Material,Ductile Iron GGG50 / WCB / CF8 / CF8M
Gate Material,AISI 304 / 316 / 316L (Hardened Edge)
Seat Material,NBR / EPDM / Viton / Metal-to-Metal
Pressure Rating,PN6 / PN10 / PN16 / Class 150
Size Range,DN50 - DN1200 (2" to 48")
Design Standard,MSS SP-81 / JB/T 8691
Face-to-Face,MSS SP-81 / Manufacturer Standard
Control Signal,4-20mA (Modulating) or Passive Contact (On/Off)
Protection Class,IP65 / IP67 / Explosion-proof (Optional)
Working Temp,−20∘C to +120∘C (Resilient Seat)
Operating Speed,Adjustable (Standard 10-25 mm/s)
Fail-Safe Mode,Stay-put / Fail-Open / Fail-Close (Accumulator)
Packing Type,High-density PTFE / Synthetic with NBR Core
Coating,Fusion Bonded Epoxy (250-300 microns)
Manual Override,Hand-pump or Handwheel
