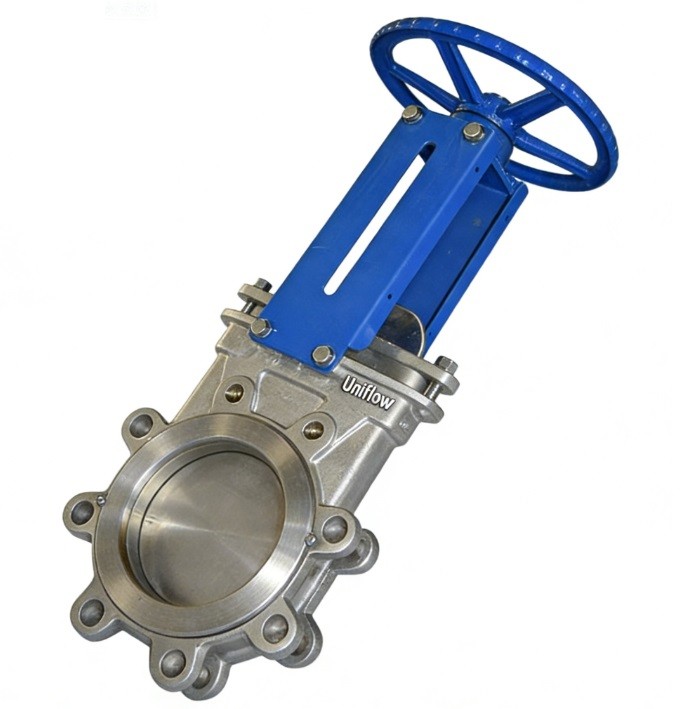

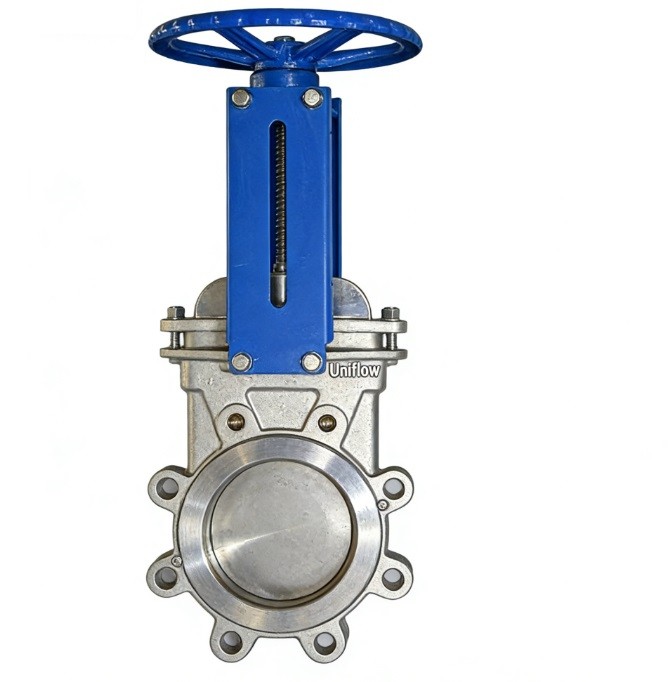

The Stainless Steel Manual Lug Knife Gate Valve is a corrosion-resistant isolation valve designed for abrasive and corrosive slurries. Its SS304 (CF8) or SS316 (CF8M) body provides maximum chemical longevity, while the Lug-style design enables secure bolting and dead-end service. Operated by a manual handwheel, its sharp, beveled gate slices through solids and fibers, ensuring a tight seal in chemical processing, paper pulp, and wastewater applications.
Technical Attributes: Stainless Steel Manual Lug Knife Gate Valve
Body Material,ASTM A351 CF8 (SS304) / CF8M (SS316)
Operation,Manual Handwheel / Bevel Gear (for large sizes)
End Connection,Lug Type (Threaded Bolt Holes)
Pressure Rating,PN10 / PN16 / Class 150
Gate Material,AISI 304 / 316 Stainless Steel (Polished)
Seat Material,EPDM / NBR / Viton / Metal-to-Metal
Size Range,"DN50 - DN600 (2"" to 24"")"
Sealing Type,Unidirectional (Standard) / Bidirectional
Stem Design,Rising Stem / Non-rising Stem
Stem Material,SS304 / SS316 / ASTM A182 F6a
Design Standard,MSS SP-81 / ASME B16.34
Flange Drilling,ASME B16.5 / EN 1092-1 / JIS
Packing Material,PTFE / Braided Graphite / Aramid Fiber
Face-to-Face,MSS SP-81 (Short Pattern)
Temperature Range,−29℃ to +150℃ (Soft) / +425℃ (Metal)
Testing Standard,API 598 / MSS SP-81
Surface Finish,Natural Stainless (Pickled & Passivated)
Service Media,"Corrosive Slurry, Pulp, Food & Beverage, Acids"
Nut Material,Brass / Bronze (Anti-galling)
