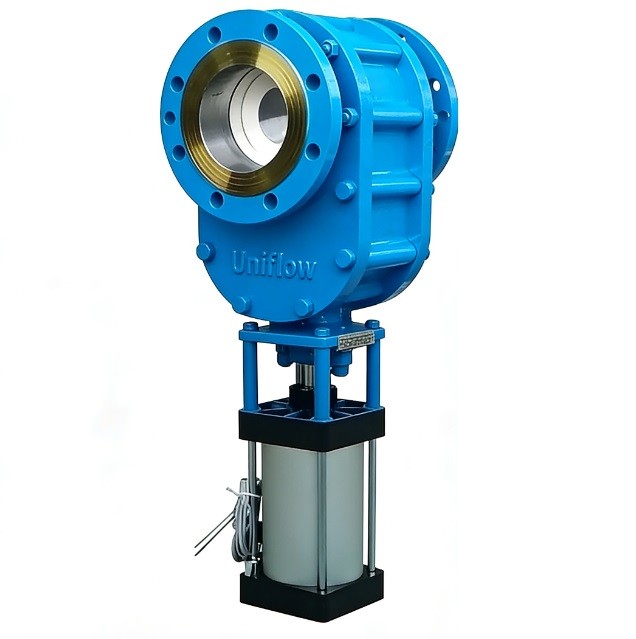

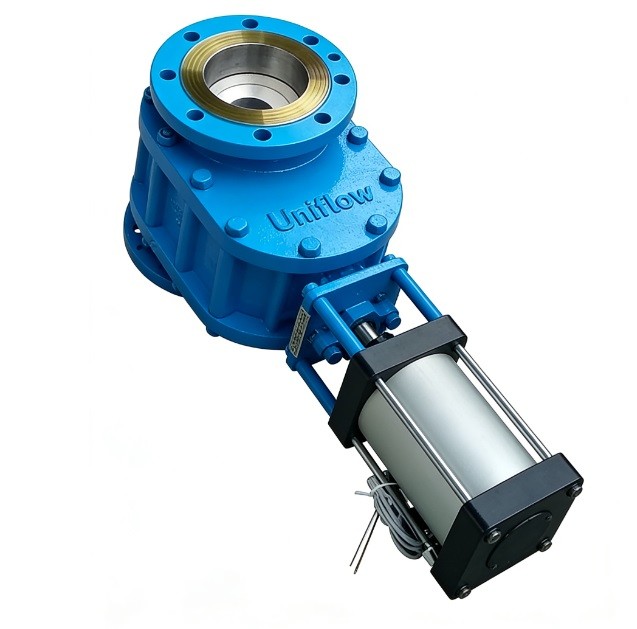

The Pneumatic Ceramic Lined Double Disc Knife Gate Valve is the ultimate solution for extreme abrasion and erosion. It features high-alumina ceramic liners on all wetted parts and a unique double-disc design that creates a pressurized seal. Driven by a pneumatic actuator, the discs rotate or slide to shear through hard scales and fly ash. This valve is specifically engineered for pneumatic conveying, mining tailings, and coal-fired power plant systems where standard metal valves fail within weeks
Technical Attributes: Ceramic Lined Double Disc Knife Gate Valve
Body Material,WCB / SS304 / SS316 (Lined with Ceramic)
Lining Material,Structural Ceramics (Al2O3 / ZrO2 / Si3N4)
Disc Material,Solid Ceramic or SS304 Ceramic Faced
Pressure Rating,PN6 / PN10 / PN16 / Class 150
Actuation,Pneumatic Cylinder (Double Acting)
Seal Design,Double Disc Parallel Sealing
Hardness,Ceramic Components > HRA 88
Size Range,DN50 - DN600 (2" to 24")
End Connection,Flanged / Wafer / Lug
Air Supply,4.0 - 7.0 bar (60−100 PSI)
Temperature Range,−29℃ to +450℃ (High temp optional)
Sealing Type,Bidirectional or Unidirectional
Service Media,"Fly Ash, Slag, Silicon Powder, Dry Solids"
Design Standard,ASME B16.34 / Manufacturer Standard
Face-to-Face,Manufacturer Standard (Extended for Lining)
Solenoid Valve,24VDC / 220VAC (Optional)
Position Feedback,Magnetic Switches / Proximity Sensors
Testing Standard,API 598 (Zero Leakage for Slurry)
