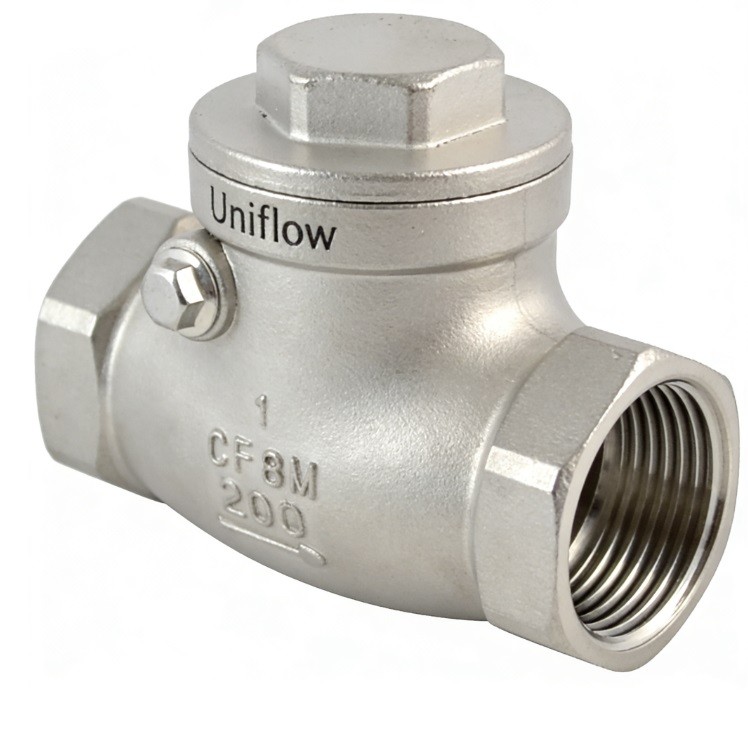

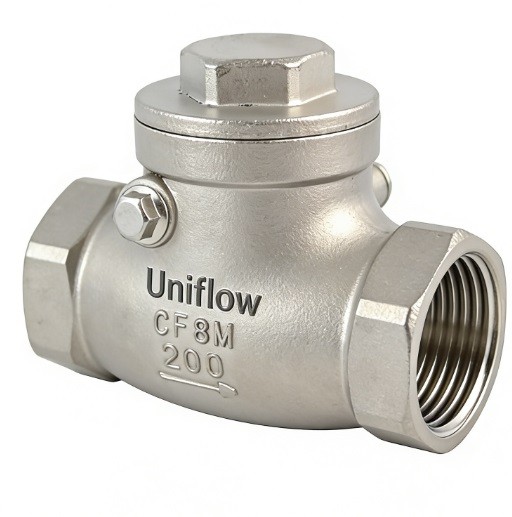

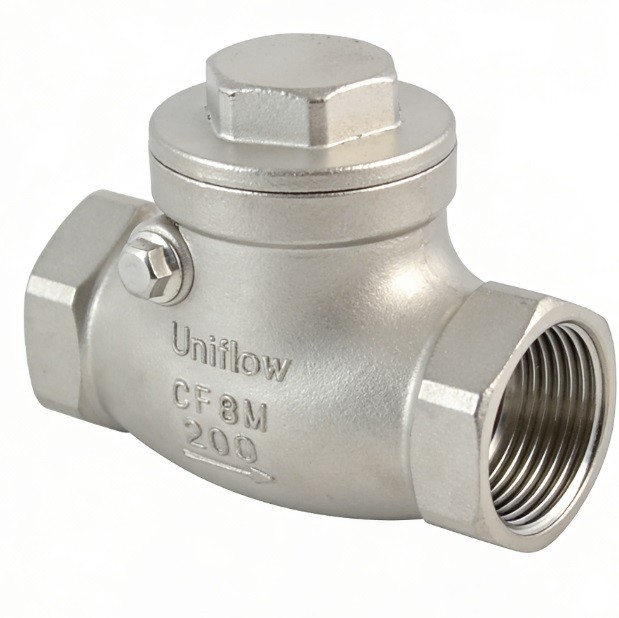

The Stainless steel screwed swing check valve is an automatic non-return valve used to prevent backflow in pipelines. It features a hinged "swing" disc that opens with forward pressure and closes via gravity or reverse flow. Crafted from SS316/SS304, it is highly resistant to corrosion. The screwed (NPT/BSP) ends facilitate easy installation in compact systems. It is best suited for horizontal flow in low-velocity water, oil, and gas applications where minimal pressure drop is required
Technical Attributes
1,Valve Type,Swing Check Valve (Non-Return)
2,Body Material,ASTM A351 CF8M (316) / CF8 (304)
3,Pressure Rating,200 PSI (WOG) / PN16 / 1000 PSI models available
4,Size Range,"1/2"" to 3"" (DN15 to DN80)"
5,End Connection,NPT / BSP / BSPT (Female Threaded)
6,Disc Material,SS316 / SS304 (Metal-to-Metal Seal)
7,Hinge Pin,Stainless Steel (Internal hidden pin design)
8,Cap Design,Screwed-in Cap (Allows for easy internal cleaning)
9,Seal Type,Metal-to-Metal or Viton/PTFE Soft Seat
10,Installation,Horizontal (Best) or Vertical (Upward flow only)
11,Cracking Pressure,Very Low (Operates on minimal differential pressure)
12,Flow Direction,Uni-directional (Cast arrow on body)
13,Body Design,Investment Casting (Precision wall thickness)
14,Testing Standard,API 598 (Seat and shell integrity)
15,Working Temp.,−20°C to +180°C (Standard SS seals)
