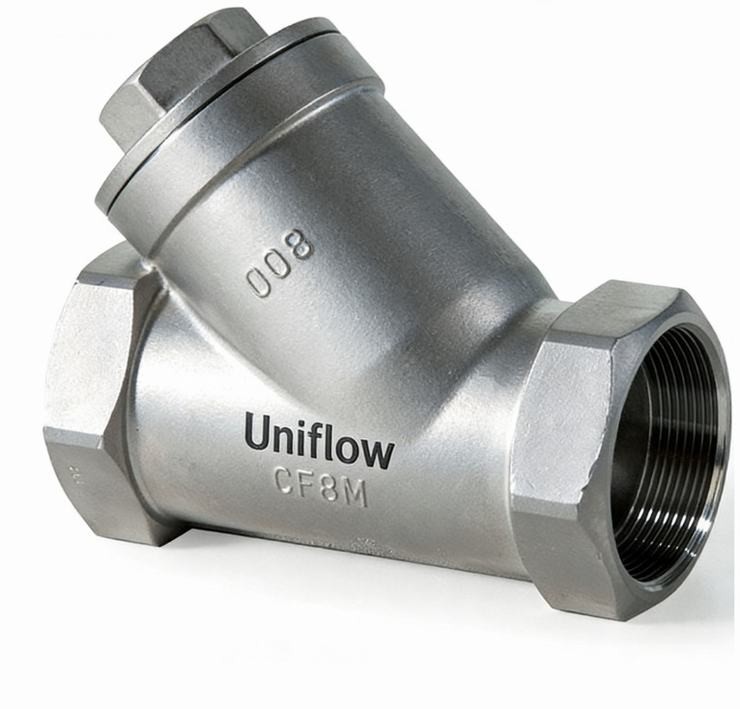

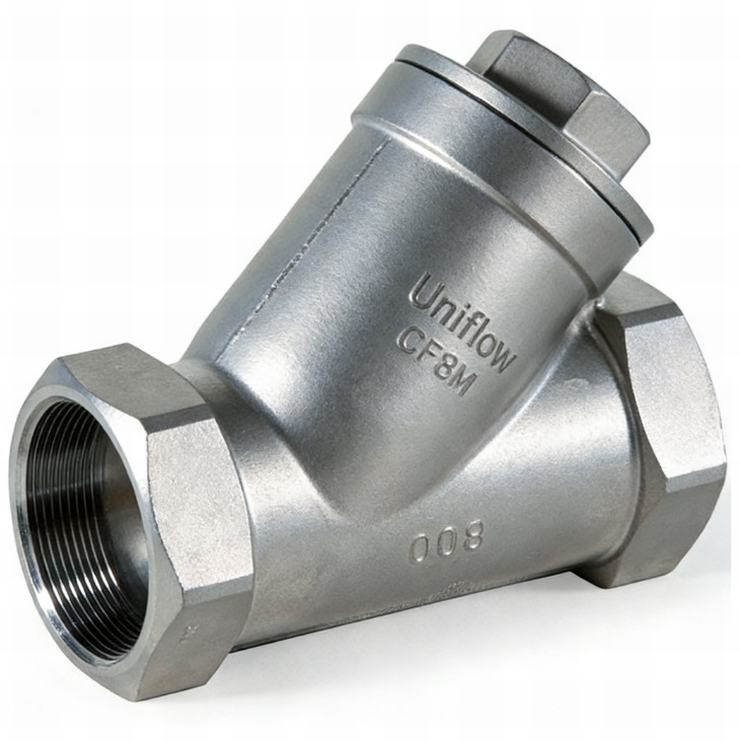

The Stainless Steel Screwed Y-Strainer is a vital filtration component used to protect downstream equipment from debris, scale, and sediment. Shaped like a "Y," the offset leg contains a perforated or wire mesh screen that traps particles while allowing fluid to pass. Made from SS316/SS304, it resists corrosion in harsh environments. The screwed (NPT/BSP) ends enable fast installation. It features a removable cap for easy screen cleaning and is suitable for horizontal or vertical flow.
Technical Attributes
1,Component Type,Y-Strainer (In-line Filter)
2,Body Material,ASTM A351 CF8M (316) / CF8 (304)
3,Pressure Rating,800 PSI / 1000 PSI (WOG) / PN63
4,Size Range,1/4" to 3" (DN8 to DN80)
5,End Connection,NPT / BSP / BSPT (Female Threaded)
6,Standard Screen,80 Mesh / 100 Mesh (Or Perforated Plate)
7,Screen Material,SS316 (For maximum acid/alkali resistance)
8,Cap Design,Screwed-on Cap with Blow-off Port option
9,Gasket Material,PTFE / Graphite (For high-temp steam)
10,Installation,Horizontal or Vertical (Down-flow only)
11,Maintenance,Removable screen for easy cleaning/replacement
12,Flow Direction,Uni-directional (Arrow cast on body)
13,Blow-off Port,Threaded plug in cap (for flushing debris)
14,Testing Standard,API 598 (Body/Shell pressure test)
15,Working Temp.,−20∘C to +200∘C
