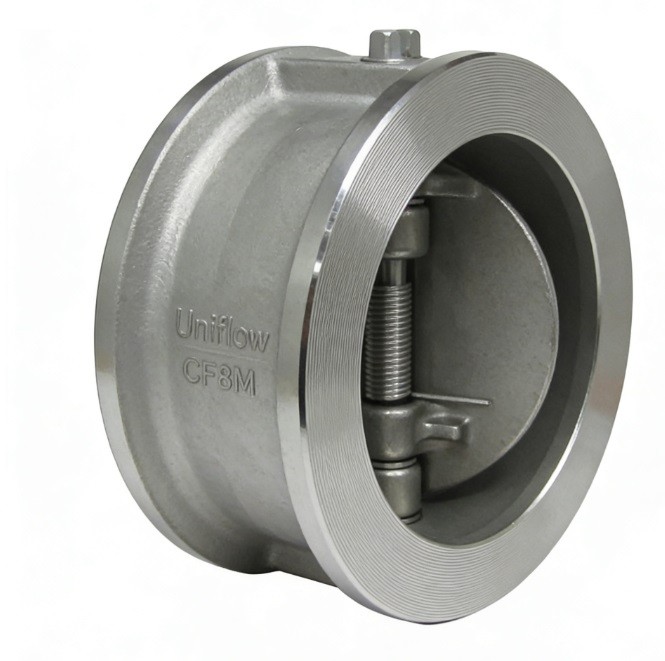

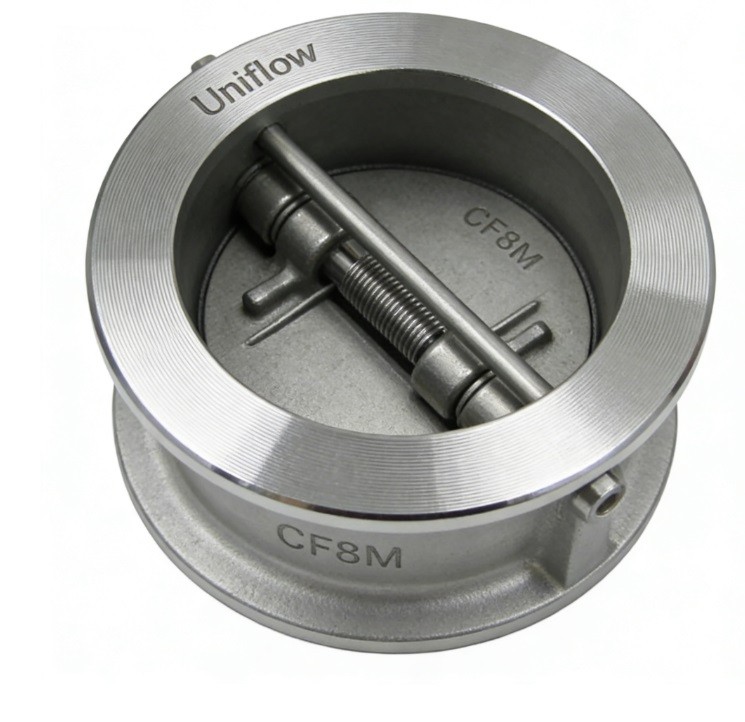

The Stainless Steel Dual Plate Wafer Type Check Valve is a space-saving, lightweight non-return valve. It features two spring-loaded plates hinged on a central pin. When flow starts, the plates open; when it stops, the springs snap them shut to prevent backflow and water hammer. Its wafer design fits between pipe flanges, making it much lighter and shorter than traditional swing check valves. Built from SS316, it is ideal for high-volume water, oil, and gas systems.
Technical Attributes
1,Valve Type,Dual Plate / Butterfly Check
2,Body Design,Wafer Type (Flangeless)
3,Body Material,ASTM A351 CF8M (316) / CF8 (304)
4,Pressure Rating,PN16 / PN25 / PN40 / Class 150 - 600
5,Size Range,DN50 to DN600 (2" to 24")
6,Disc/Plate Material,SS316 / Duplex Stainless Steel
7,Spring Material,Inconel X-750 / SS316 (High durability)
8,Seat Material,Viton / EPDM (Soft) or Metal-to-Metal
9,Stop Pin/Hinge Pin,Stainless Steel 316
10,Face-to-Face,API 594 (Short pattern)
11,Compatibility,Fits between ANSI / DIN / JIS Flanges
12,Installation,Horizontal or Vertical (Upward flow)
13,Flow Feature,Low Pressure Drop / High Cv
14,Testing Standard,API 598
15,Working Temp.,−40∘C to +200∘C (Subject to seat)
