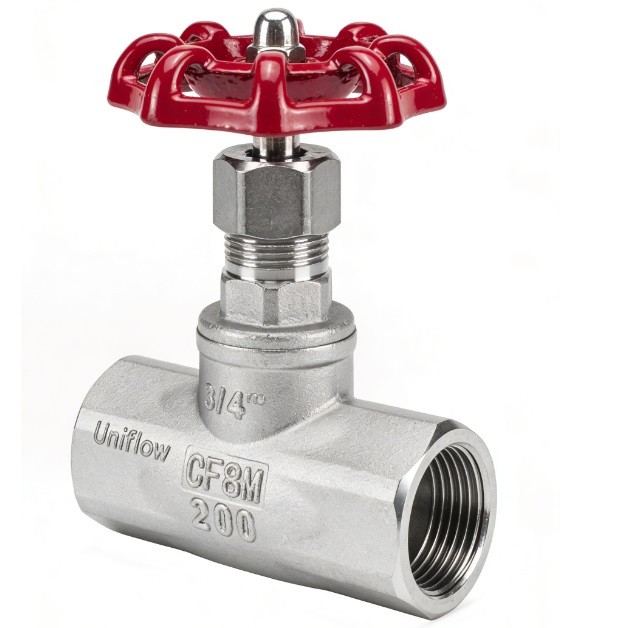

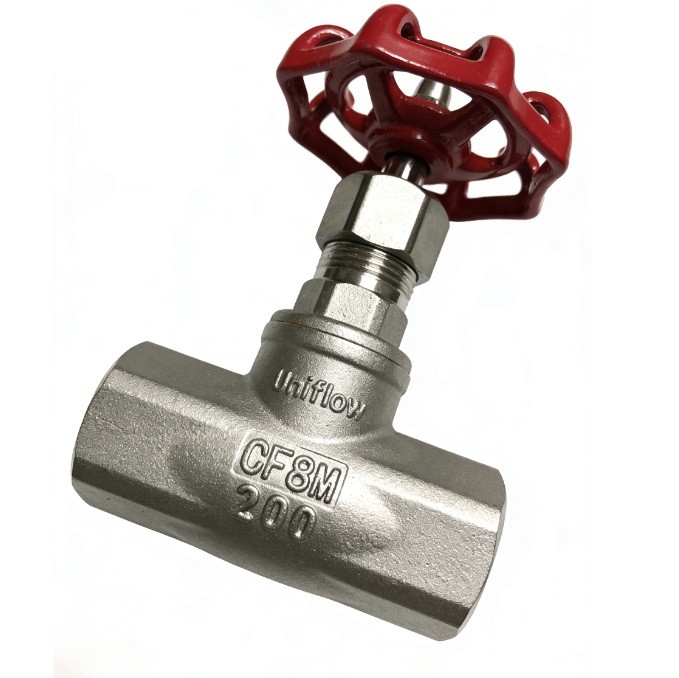

The Stainless Steel Threaded Globe Valve (200WOG) is a precision valve designed for flow regulation and frequent throttling. Unlike gate valves, it forces fluid through a S-shaped path, allowing for fine control. The 200WOG rating indicates a maximum pressure of 200 PSI for Water, Oil, or Gas. Built from SS316/SS304, it offers superior corrosion resistance. Its threaded ends ensure easy installation in compact piping systems where precise shut-off and durability are required.
Technical Attributes
1,Valve Type,Globe Valve (S-pattern body)
2,Body Material,ASTM A351 CF8M (316) / CF8 (304)
3,Pressure Rating,200 PSI (WOG) / PN16
4,Size Range,1/2" to 2" (DN15 to DN50)
5,End Connection,NPT / BSP (Female Threaded)
6,Disc/Plug Type,Swivel Disc (Conical or Flat profile)
7,Stem Type,Rising Stem (Outside Screw & Yoke / Inside Screw)
8,Bonnet Design,Screwed-in Bonnet (Maintenance-friendly)
9,Seat Type,Integral Stainless Steel Seat (Metal-to-metal)
10,Packing,PTFE (Standard) / Graphite (High-temp)
11,Operation,Handwheel (Multi-turn for precision)
12,Flow Direction,Uni-directional (Indicated by arrow on body)
13,Port Design,Standard Port (High resistance for control)
14,Testing Standard,API 598 / MSS SP-110
15,Working Temp.,−20°C to +150°C (Standard PTFE)
