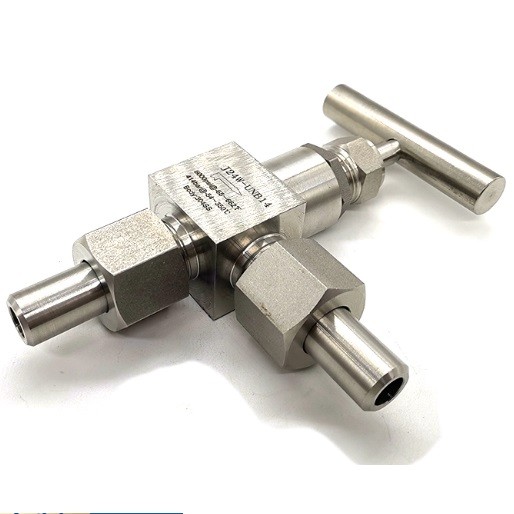

Stainless steel angle needle valve double ferrule 6000 psi

This instrumentation-grade angle pattern stainless steel needle valve features a 90-degree right-angle flow structure to transition tight piping runs smoothly. Rated for a heavy-duty 6000 PSI and equipped with integrated double ferrule compression tube ends, it ensures ultra-precise flow regulation and reliable leak-tight security across hazardous fluid networks.

Download

Detailed Product Introduction

The J24W series high-pressure stainless steel angle needle valve is an instrumentation-grade flow control component engineered for precise throttling, isolation, and directional flow transition in compact piping systems. CNC-machined from robust forged stainless steel bar stock, this valve features a distinctive 90-degree angle pattern flow design, allowing it to function simultaneously as both an efficient flow regulator and a sharp space-saving right-angle elbow. Equipped with high-integrity double ferrule compression tube ends, it provides a leak-free mechanical swaging seal on hard stainless steel tubing without requiring thermal welding or traditional tapered threads. Rated to manage severe system pressures up to 6000 PSI (414 Bar) and severe thermal peaks up to 662°F (350°C), this heavy-duty angle valve includes a hardened blunt-tip regulating stem, making it perfect for hydraulic control skids, high-purity laboratory sampling lines, chemical injection manifolds, and gas analysis systems.

Technical Specifications

Valve Classification: Instrumentation Quarter-Turn / Multi-Turn Angle Regulating Needle Valve
Flow Geometry Pattern: 90-Degree Right-Angle Flow Path Configuration
Design Model Series: J24W Heavy-Duty Instrumentation Class
Body Framework Pattern: High-density integrated single-piece forged square bar-stock architecture
Primary Body Metallurgy: Forged Stainless Steel 304 (SS304) / Highly resilient structural tier
Stem and Tip Engineering: Hardened regulating vee-tip stem ensuring ultra-smooth micro-flow throttling
Connection Interface Type: Integrated Double Ferrule (Twin Ferrule) Mechanical Compression Tube Ends
Available Tube O.D. Sizes: Imperial 1/4", 3/8", 1/2" or Metric 6mm, 8mm, 10mm, 12mm profiles
Maximum Mechanical Pressure: Rated for continuous heavy-duty service up to 6000 PSI (414 Bar / 41.4 MPa)
Maximum Thermal Rating: Certified for reliable service up to 662°F (350°C) under rated pressure loads
Cryogenic Temperature Threshold: Rated resilient down to extreme ambient exposures of -65°F (-54°C)
Stem Packing System: Multi-layer safety seal design utilizing high-grade adjustable PTFE / PEEK rings
Actuation Interface Handle: Ergonomic heavy-duty stainless steel T-bar handle for comfortable manual operation
Stem Protection Guard: Internal entry anti-blowout stem assembly ensuring ultimate field operator safety
Stem Thread Engineering: Upper-stem threads isolated from process media to prevent thread lubrication washouts
Sealing Performance Rating: Meets or exceeds EN 12266-1 Rate A and ANSI Class VI bubble-tight leakage thresholds
Internal Flow Passages: Precision-drilled internal orifices minimize flow turbulence and system erosion
Applicable Media Profile: High-pressure compressed gases, hydraulic oils, corrosive chemicals, and water emulsions
Shell Hydrostatic Validation: 100% factory verified through strict nitrogen gas high-pressure decay testing protocols
Exterior Shell Aesthetics: Matte-brushed fine sandblasted surface finish with permanently deep laser-etched operational metrics
Cleanliness Engineering: Clean-room degreased, particles evacuated, and fitted with thick plastic caps to protect tube inserts
