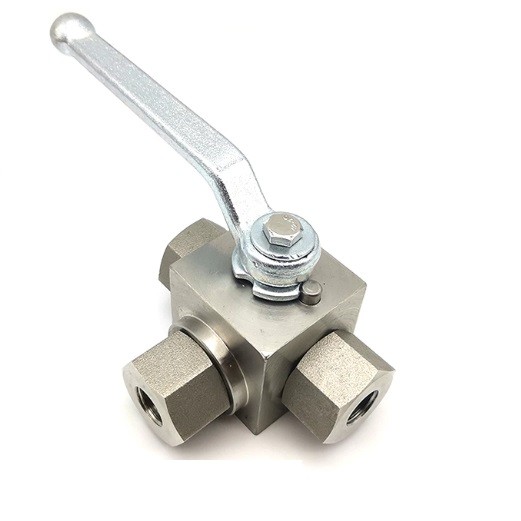

High pressure 3 way ball valve stainless steel L T port

Detailed Product Introduction

The heavy-duty series high-pressure stainless steel 3-way ball valve is an advanced multi-port fluid management component engineered for reliable flow diversion, mixing, and multi-directional isolation in critical process pipelines. Precision CNC-machined from a single block of high-density forged stainless steel bar stock, this compact square-body valve effectively eliminates the structural weaknesses and leakage risks associated with casting parts. Featuring customizable L-port or T-port internal ball geometries combined with precise female NPT or BSP threaded terminal interfaces, it allows users to switch, merge, or distribute complex gas and liquid paths with a simple quarter-turn manual operation. Outfitted with heavy-duty reinforced seats and an ergonomic long steel lever handle with internal mechanical stop pins, it delivers long-term bubble-tight sealing and smooth actuation under intense dynamic system surges, making it indispensable for high-pressure hydraulic power units, industrial gas manifolds, and aggressive petrochemical sampling systems.

Technical Specifications

• Valve Classification: Multi-Port 3-Way High-Pressure Fluid Directional Control Valve

• Body Framework Pattern: High-density integrated single-piece forged square bar-stock architecture

• Primary Body Metallurgy: Premium Forged Stainless Steel 316 (SS316) / Heavy-duty SS304

• Flow Configuration Options: L-Port (Flow Path Switching/Diverting) or T-Port (Flow Mixing/Blending/Bypassing)

• Connection Interface Type: High-precision Female Threaded Ports (Inlet and dual outlets)

• Thread Compliance Standards: Precision NPT, BSPT, or ISO metric threads according to ASME B1.20.1

• Available Connection Sizes: 1/4", 3/8", 1/2", 3/4", and 1" Female size profiles

• Maximum Mechanical Pressure: Rated for continuous severe services up to 6000 PSI / 414 Bar / 41.4 MPa

• Ball and Stem Metallurgy: Precision-ground micro-smooth solid stainless steel core preventing friction drag

• Valve Seat Material: High-density Molecular PEEK / PCTFE / Reinforced PTFE for resilient high-pressure cycling

• Stem Packing System: Anti-extrusion multi-layer seal design utilizing high-grade Fluorocarbon FKM O-rings and PTFE

• Temperature Operational Range: Secure performance from -54°C up to +232°C (-65°F to +450°F) based on seat material selection

• Actuation Interface Handle: Heavy-duty extended directional steel lever handle providing maximum manual leverage

• Handle Security Mechanisms: Heavy-walled internal structural stop pins guarantee precise 90-degree rotational alignment

• Stem Engineering Protections: Advanced internal entry anti-blowout stem assembly ensuring ultimate field operator safety

• Sealing Performance Rating: Meets or exceeds EN 12266-1 Rate A and ANSI Class VI bubble-tight leakage thresholds

• Internal Flow Passages: Optimized smooth-bore fluid pathways minimize system cavitation and pressure drops

• Applicable Media Profile: High-pressure hydraulic oils, compressed natural gas, chemical solvents, steam, and water emulsions

• Shell Hydrostatic Validation: 100% factory verified through strict nitrogen gas high-pressure decay testing protocols

• Exterior Shell Aesthetics: Matte-brushed fine sandblasted surface finish with permanently deep laser-etched operational metrics
