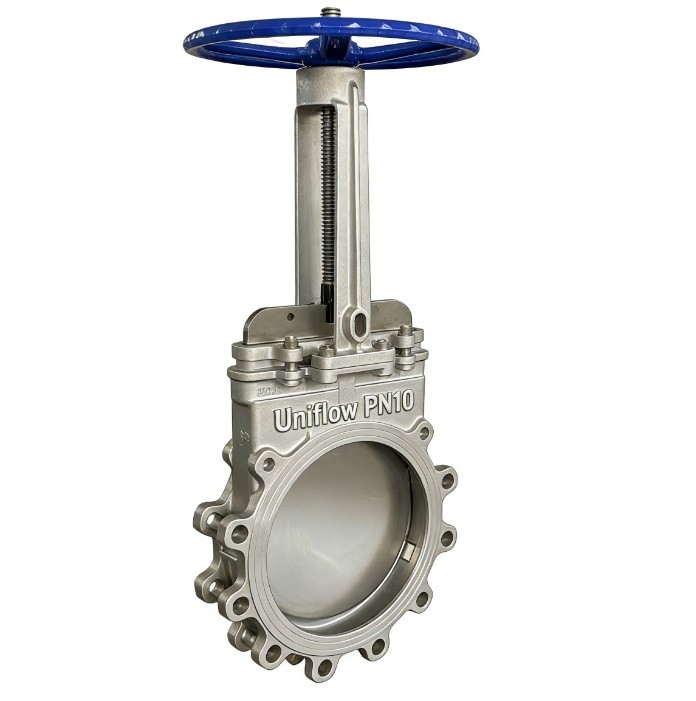

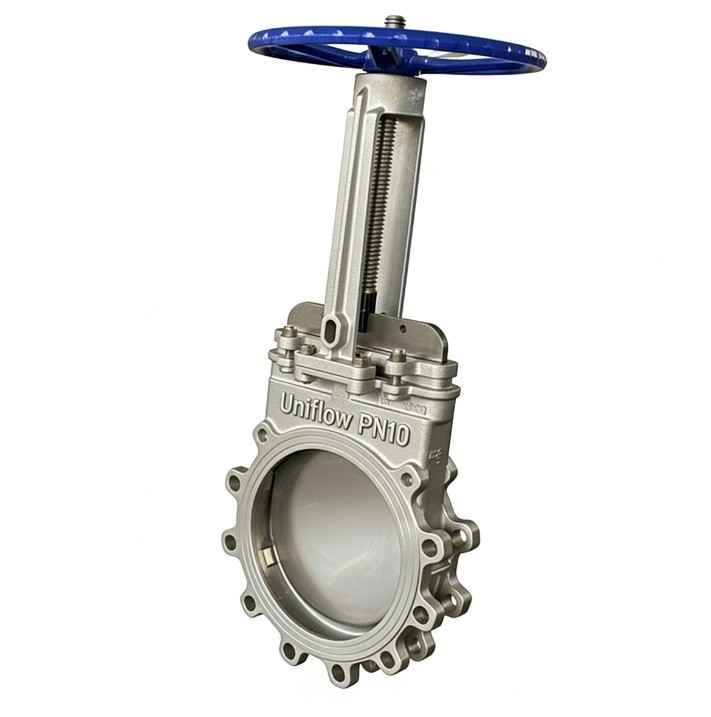

The Stainless Steel 304 Metal-Seated Knife Gate Valve is engineered for high-temperature and abrasive service where resilient seats fail. The SS304 (CF8) body and gate provide exceptional corrosion resistance against harsh chemicals and oxidized media. Featuring a metal-to-metal seat, it excels in handling hot ash, pulp, and dry solids. The beveled gate "knifes" through thick slurries, ensuring reliable manual isolation in mining, power, and chemical processing plants.
Technical Attributes: SS304 Metal-Seated Knife Gate Valve
Body Material,ASTM A351 CF8 (Stainless Steel 304)
Gate Material,AISI 304 Stainless Steel (Beveled Edge)
Seat Type,Metal-to-Metal (Integral or Replaceable)
Sealing Direction,Unidirectional (Standard)
Operation,Manual Handwheel / Bevel Gear
Size Range,DN50 - DN600 (2" to 24")
Pressure Rating,PN10 / PN16 / Class 150
Design Standard,MSS SP-81 / ASME B16.34
Face-to-Face,MSS SP-81 (Short Pattern)
End Connection,Wafer / Lug Type
Stem Design,Rising Stem / Non-rising (Optional)
Temperature Range,−29∘C to +425∘C
Packing Material,PTFE / Braided Graphite / Kevlar
Surface Finish,Natural Stainless (Pickled & Passivated)
Applicable Media,"Slurry, Ash, Pulp, Pellets, Wastewater"
Gate Coating,Hard Chrome Plated (Optional for Hardness)
Testing Standard,API 598 / MSS SP-81 (Metal Seat Leakage)
Mounting Flange,ISO 5211 (Optional for Automation)
