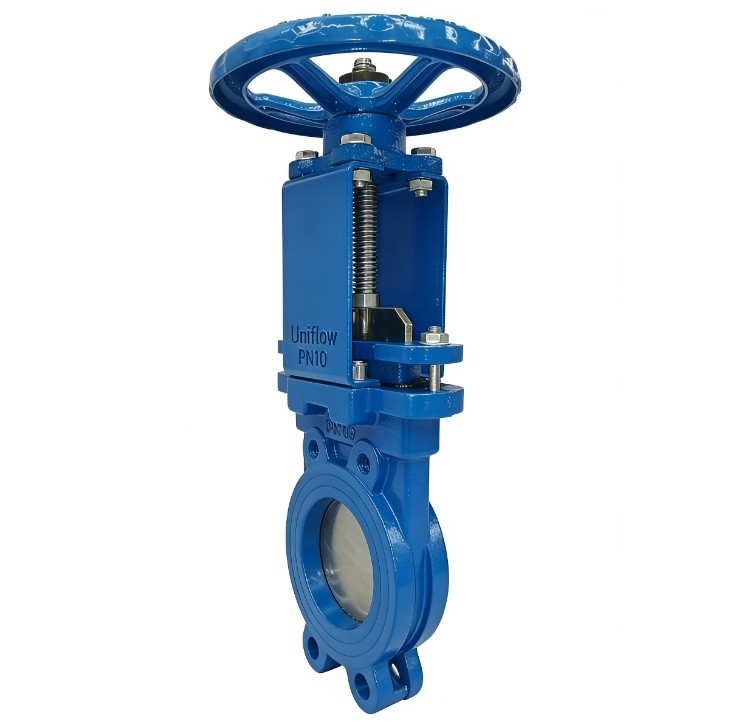

PN 10 Bidirectional knife gate valve with handwheel rising stem GGG50 epoxy coated Body NBR Seat AISI304 Gate

The PN10 Bidirectional Knife Gate Valve is a versatile isolation valve designed for handling slurries, pulp, and wastewater. Its Bidirectional sealing capability ensures leak-proof performance regardless of flow direction. The GGG50 Ductile Iron body is fully Epoxy Coated for superior corrosion resistance, while the AISI 304 Stainless Steel gate and NBR seat provide a resilient, bubble-tight seal. Featuring a rising stem for visual status and a manual handwheel, it is a durable choice for industrial fluid control.

Download

Technical Attributes: PN10 Bidirectional Knife Gate Valve

Body Material,Ductile Iron (EN-GJS-500-7 / GGG50)

Pressure Rating,PN10 (1.0 MPa)

Sealing Type,Bidirectional (Dual-seat Sealing)

Gate Material,AISI 304 Stainless Steel (Polished)

Seat Material,NBR (Nitrile Butadiene Rubber)

Stem Type,Rising Stem (Visual Position Indication)

Operation,Manual Handwheel

Body Coating,Fusion Bonded Epoxy (Min. 250 microns)

Connection,Wafer / Lug Type (Fits between PN10 Flanges)

Packing,PTFE / Synthetic Fiber with NBR Core
