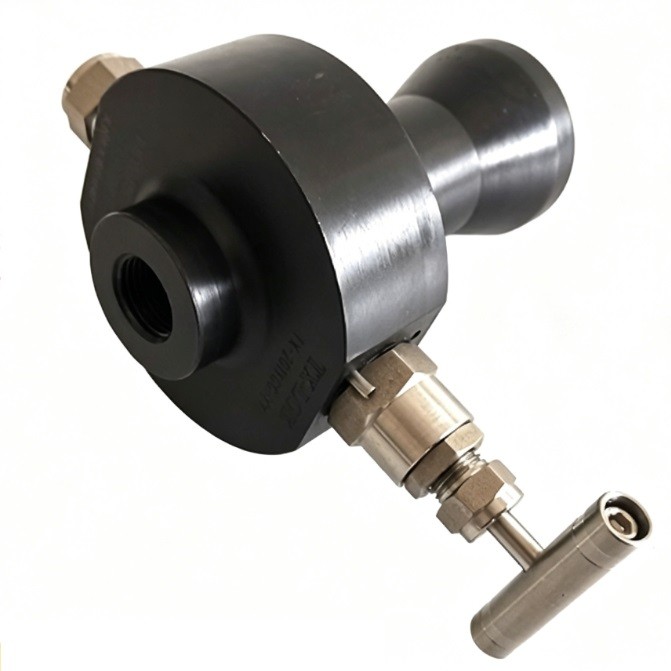

Integrally Reinforced Vessel Root Valve

This high-performance, integrally reinforced forged root valve is precision-engineered for direct welding onto natural gas pipelines. Combining a robust heavy-wall body with a built-in needle isolation and vent valve, it significantly eliminates critical vibration stress and leak pathways, ensuring reliable, high-pressure instrument connection and process fluid sampling.

Download

The integrally reinforced welded instrument root valve (often termed a "weldopot" or "flange adapter root valve") is designed for heavy-wall run pipes where high structural strength and reliable isolation are paramount. Machined from a single block of forged stainless steel, this valve features an extended welding hub that interfaces directly with the main pipeline, completely replacing unstable traditional nipple-and-valve hookups. Its compact design features integrated high-pressure needle valves for process isolation and venting, providing unmatched safety for downstream transmitters, line sampling, and pressure measurement in oil and gas distribution networks.

Technical Specifications

Valve Structure: Integrally Reinforced Forged Root Valve / Welded Gauge Block Valve
Body Material: 316/316L Stainless Steel (Standard carbon steel or exotic alloys optional)
Isolation Element: Heavy-duty metal-to-metal seating needle valve
Inlet/Process Connection: Butt-Weld (BW) / Socket Weld (SW) integrated extended branch hub
Outlet/Instrument Connection: 1/2" NPT Female thread (customizable to compression fitting)
Vent/Bleed Connection: Integrated 1/4" NPT Female with purge valve or hex plug
Nominal Pressure Rating: Class 2500 / 6000 psi (Up to 41.3 MPa / 413 bar)
Maximum Working Temperature: Up to 538°C (1000°F) with graphite packing option
Stem Packing Material: Pure PTFE for chemical inertness / Flexible Graphite for severe thermal service
Handle Configuration: T-bar metallic handle with non-rotating tip design
Sealing Mechanism: Hardened stem tip providing bubble-tight, zero-leakage shut-off
Stem Design: Anti-blowout lower stem configuration preventing blowout under system pressure
Vibration Resistance: Monoblock design dramatically cuts fatigue risks from acoustic or fluid pulsation
Media Suitability: Natural gas, sour gas, refined hydrocarbons, superheated steam, and corrosive fluids
NACE Compliance: Meets NACE MR0175 / ISO 15156 standards for harsh sour gas service
Fugitive Emissions: Low-emission shaft seal certified to meet ISO 15848-1 requirements
Body Surface Treatment: Pickled and passivated stainless steel body for superior oxidation protection
Testing Standard: Factory hydrostatic and pneumatic shell/seat tested in accordance with API 598
Traceability: Permanent laser-etched heat code marking on the forged body shell
Quality Certification: Supplied with certified Material Test Report (MTR) according to EN 10204 3.1
