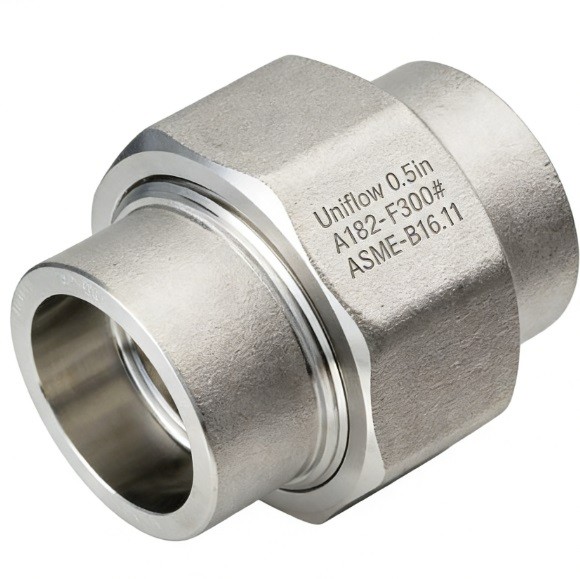

The ASME B16.11 Stainless Steel 3000# Socket Weld Union is a high-pressure three-piece fitting designed for quick assembly and disassembly of piping sections. Forged from grades like 316L or 316Ti, it features a ground joint for a metal-to-metal seal, offering superior leak resistance without gaskets. The socket ends facilitate easy pipe alignment and welding. Rated for 3000 PSI, it is essential in process lines requiring frequent maintenance or component replacement in corrosive environments.
Technical Attributes: SS 3000# Socket Weld Union
Standard,ASME B16.11 / MSS SP-83
Material Grades,"ASTM A182 F304/L, F316/L, F316Ti, F321"
Fitting Type,Socket Weld Union (3-Piece)
Pressure Rating,3000 LBS (Class 3000)
Size Range,1/8" to 3" (NPS)
Parts,"Male Part, Female Part, Nut"
Seal Type,Ground Joint (Metal-to-Metal Seat)
End Connection,Socket Weld (SW)
Manufacturing,"Forged, Solution Annealed, Machined"
Chromium Content,16.0%–20.0%
Nickel Content,8.0%–14.0%
Molybdenum (316L),2.0%–3.0%
Tensile Strength,≥485 MPa (70 ksi)
Yield Strength,≥170–205 MPa
Hardness,≤192 HBW
Testing Standard,"PMI, PT (Liquid Penetrant), Hydrostatic"
Surface Finish,Pickled and Passivated
Certification,EN 10204 3.1 / MTR
Primary Use,Detachable Pipe Joints / Maintenance
