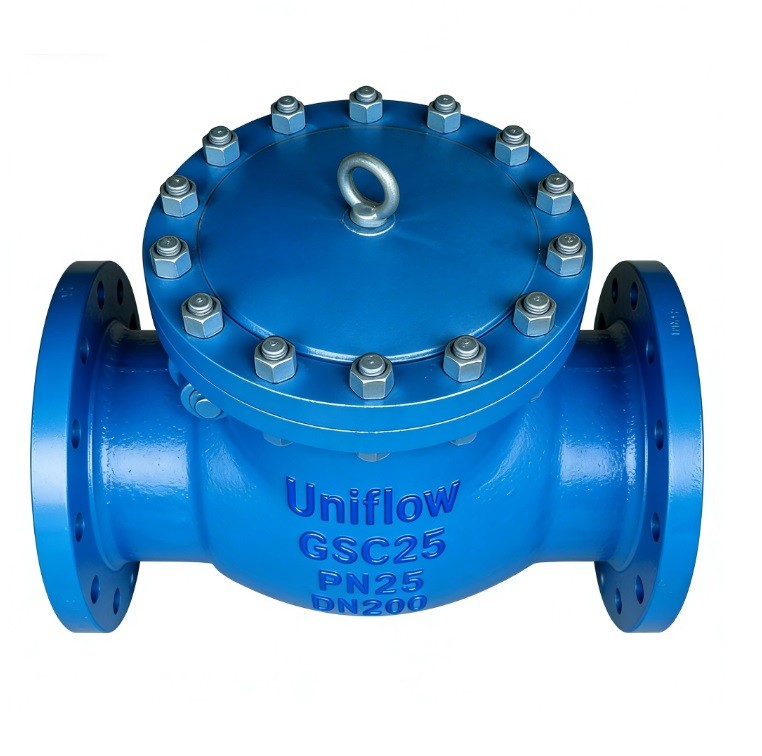

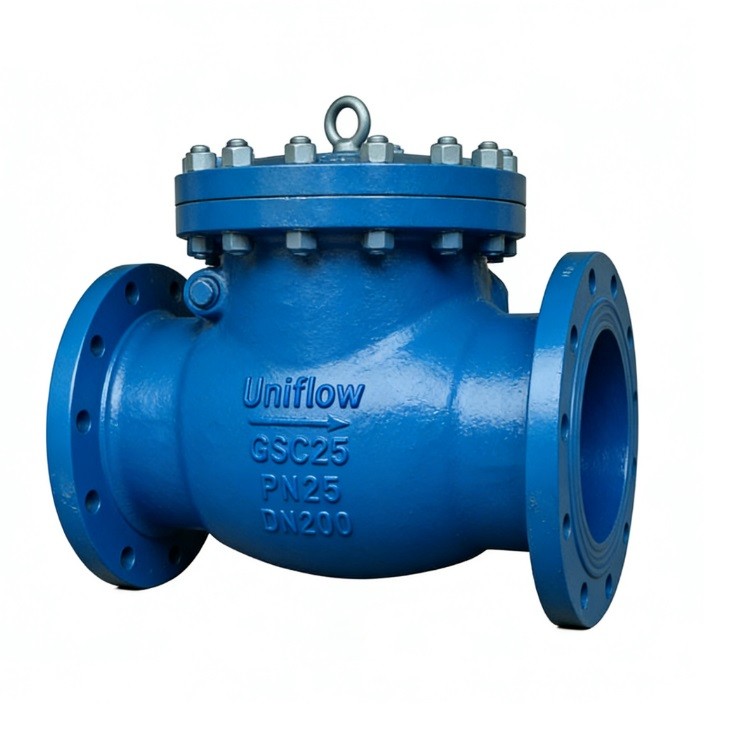

The DIN3202 F6 PN25 Cast Steel Swing Check Valve (DN200) is a heavy-duty non-return valve designed for large-scale industrial pipelines. The F6 standard specifies a specific face-to-face length, while the PN25 rating ensures it handles up to 25 bar of pressure.
Its swing-disc design allows for full-flow capacity with minimal pressure drop. Built from cast steel, it is durable and ideal for preventing backflow in water, oil, and steam systems.
Technical Attribute Table: DIN 3202 F6 PN25 (DN200)
No.,Attribute,Specification / Standard
1,Design Standard,DIN EN 14341 / DIN 3356
2,Face-to-Face,DIN 3202 F6 / EN 558 Series 48
3,Nominal Diameter,DN200
4,Pressure Rating,PN25 (2.5 MPa)
5,Body Material,Cast Steel (GP240GH / 1.0619 / WCB)
6,Disc Material,Cast Steel + 13Cr Stainless Overlay
7,Seat Ring,Stainless Steel (SS304/SS316) or Stellite
8,Hinge Pin,Stainless Steel (X20Cr13)
9,Bonnet Type,Bolted Bonnet (Removable for maintenance)
10,Flange Dimension,DIN EN 1092-1 Type 21 (PN25 Drilling)
11,Gasket Material,Spiral Wound SS304 + Graphite
12,Internal Hinge,Internal Bolt Design (Prevents shell leakage)
13,Flow Direction,Uni-directional (Arrow on body)
14,Installation,Horizontal (Preferred) or Vertical (Flow Up)
15,Working Temp.,−29∘C to +425∘C
16,Shell Test (Hydro),3.75 MPa (37.5 Bar)
17,Seat Test (Hydro),2.75 MPa (27.5 Bar)
18,Leakage Class,EN 12266-1 Rate A/B
19,Bolting,ASTM A193 B7 Studs / A194 2H Nuts
20,Finish,Anti-corrosive Blue or Silver Coating
