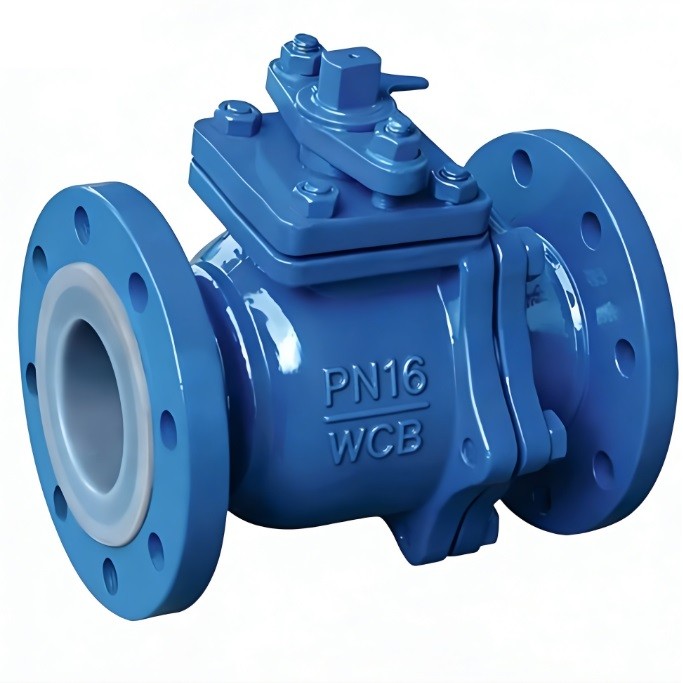

Cast steel flanged PFA lined ball valve with lever PN16 is a corrosion-resistant isolation valve designed for aggressive chemical and highly corrosive fluid applications. The cast steel body (typically WCB or equivalent) provides robust structural strength, while the PFA lining (perfluoroalkoxy) offers exceptional chemical inertness, non-stick properties, and resistance to virtually all acids, solvents, and caustics . The flanged ends comply with PN16 (16 bar / 232 psi) standards, ensuring secure, leak-proof connections. Featuring a lever-operated, quarter-turn ball mechanism, this valve enables quick, reliable shut-off. The PFA lining is applied to all wetted parts, including the ball and seat, providing complete isolation of the metallic body from corrosive media . These valves are widely used in chemical processing, pharmaceutical, acid handling, and semiconductor industries .
Technical Attributes & Specifications
1. **Body Material:** ASTM A216 WCB (Cast Carbon Steel) or Stainless Steel.
2. **Lining Material:** High-purity PFA (Perfluoroalkoxy) or FEP.
3. **Pressure Rating:** PN16 (1.6 MPa / 16 Bar).
4. **Connection Type:** Flanged ends according to EN 1092-1 or ASME B16.5.
5. **Ball Design:** PFA-lined stainless steel or solid ceramic ball.
6. **Sealing Principle:** Soft-seated (PTFE/RPTFE) for bubble-tight shut-off.
7. **Lining Thickness:** Typically 3mm to 5mm for maximum protection.
8. **Vacuum Resistance:** Lining is anchored to the body to prevent collapse.
9. **Operation:** Manual lever with optional locking device.
10. **Design Standard:** ASME B16.34, API 608, or DIN 3357.
11. **Face-to-Face:** EN 558 Series 1 (DIN 3202 F1) or ASME B16.10.
12. **Stem Design:** Blow-out proof stem with PFA-lined wetted parts.
13. **Anti-Static Device:** Integrated to discharge static build-up on the ball.
14. **Service Temperature:** -29°C to +200°C (subject to lining material limits).
15. **Chemical Resistance:** Excellent against Sulfuric acid, Hydrochloric acid, and Aqua Regia.
16. **Mounting Pad:** ISO 5211 integrated for easy automation.
17. **Stem Packing:** Self-adjusting PTFE V-rings for low fugitive emissions.
18. **Testing Standards:** 100% Spark testing of the lining and pressure testing per API 598.
19. **Leakage Class:** Rate A (Zero Leakage) according to EN 12266-1.
20. **Applications:** Acid pickling, chlorine gas, pesticide production, and fine chemicals.
