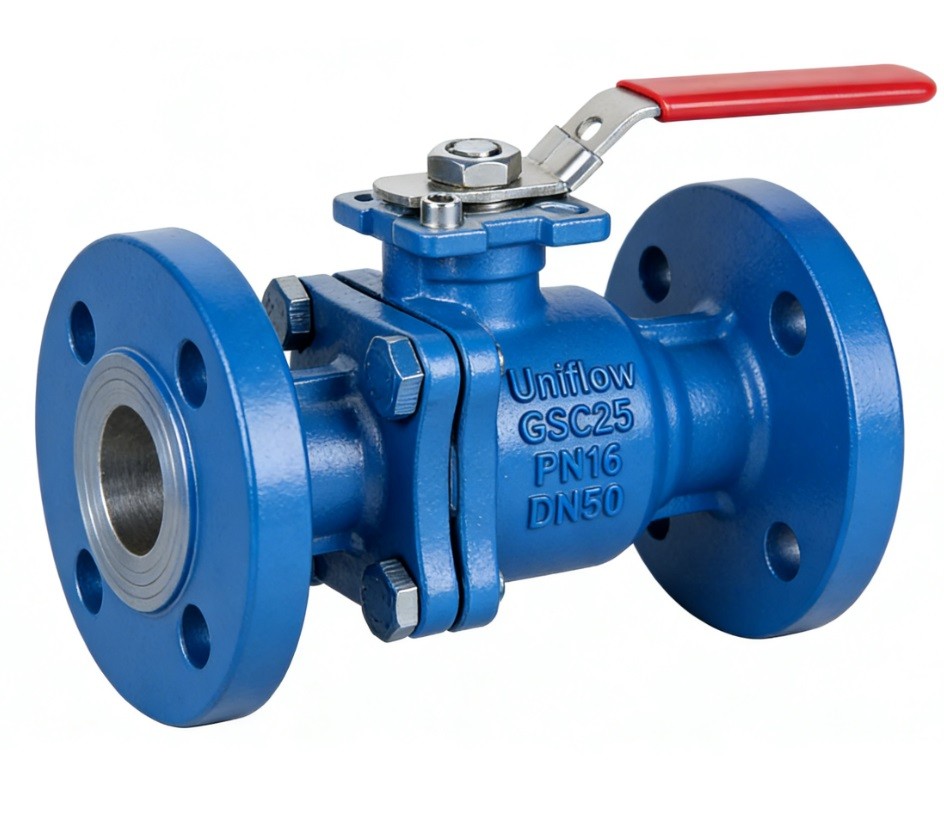

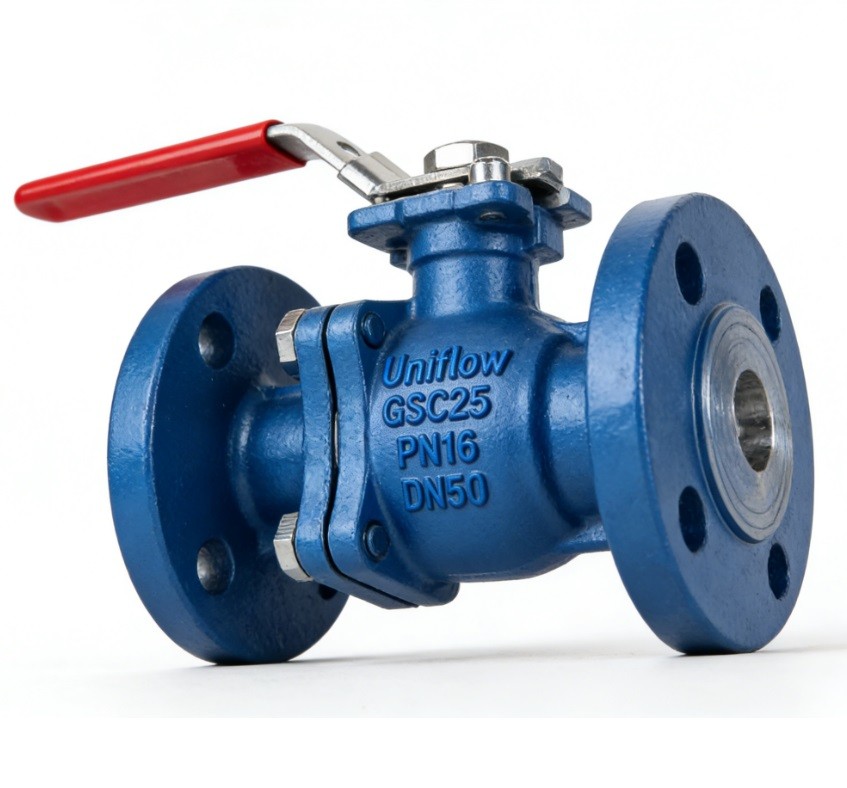

The DIN 3202 F5 Cast Steel Ball Valve is a "Long Pattern" isolation valve designed for industrial pipelines where a larger footprint is required. Adhering to the F5 face-to-face standard, it provides more space between flanges than the F4 version, easing maintenance and bolt access.
Built from GP240GH or WCB cast steel, it features a full-bore design for zero flow resistance. It is the preferred choice for heavy-duty service in oil, gas, and steam applications requiring a robust, quarter-turn shut-off.
Technical Attribute Table: DIN 3202 F5 Ball Valve
No.,Attribute,Specification / Standard
1,Design Standard,DIN EN 1983 / API 6D
2,Face-to-Face,DIN 3202 F5 / EN 558 Series 15
3,Pressure Rating,"PN16, PN25, PN40, PN64"
4,Body Material,Cast Steel (GP240GH / 1.0619 / ASTM A216 WCB)
5,Ball Material,Stainless Steel (SS304 / SS316)
6,Nominal Diameter,DN15 to DN300 (Standard Range)
7,Seat Material,PTFE / RPTFE / PEEK / Devlon
8,Bore Type,Full Bore (Maximum Flow Capacity)
9,Stem Design,Blow-out Proof Stem
10,Flange Connection,DIN EN 1092-1 Type 21
11,Anti-Static,Built-in Anti-static Device
12,Fire Safe,Optional to API 607 / ISO 10497
13,Operation,Manual Lever / Gear / Pneumatic Actuator
14,Stem Seal,V-Ring PTFE or Flexible Graphite
15,Mounting Pad,ISO 5211 (For direct automation)
16,Working Temp.,−29∘C to +200∘C (Soft Seat)
17,Shell Test Pressure,1.5× PN Rating
18,Seat Test Pressure,1.1× PN Rating
19,Tightness Class,EN 12266-1 Rate A
20,Surface Finish,Epoxy Coating or Heat-Resistant Paint
