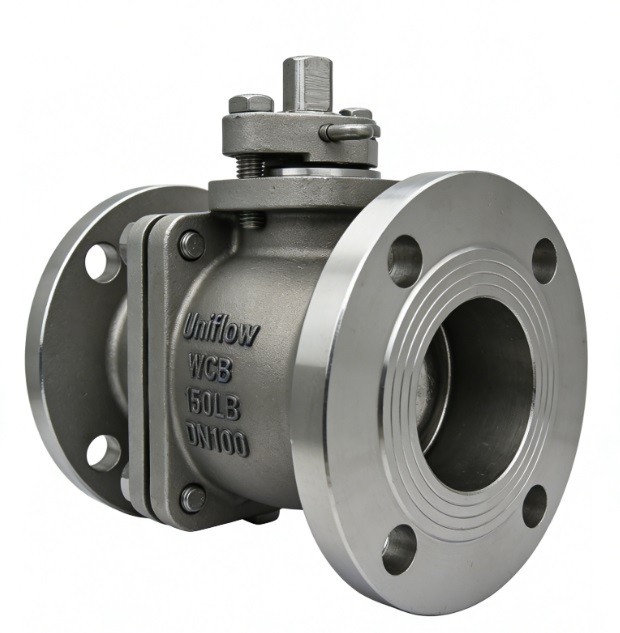

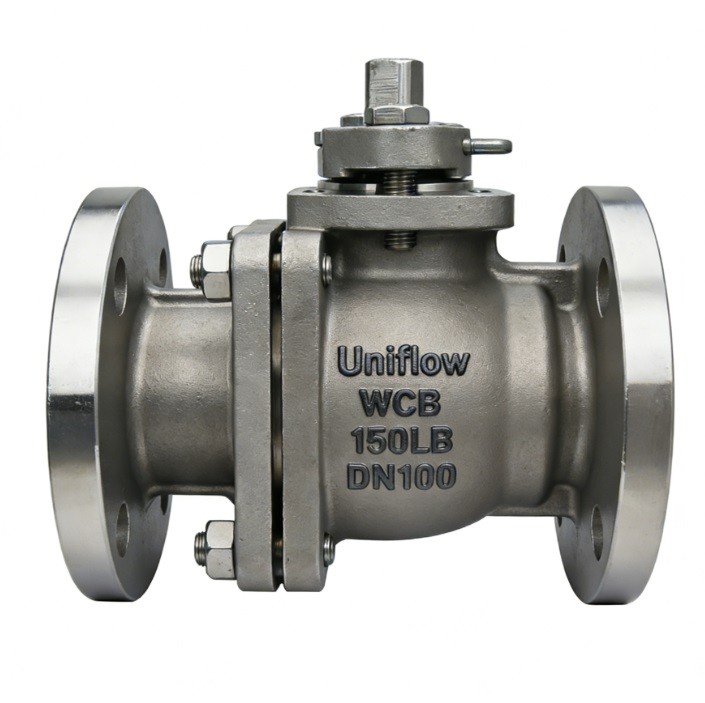

The ANSI/ASME Cast Steel Flanged 2-Piece Ball Valve is a standard industrial isolation valve. Its 2-piece body design allows for easy inspection and maintenance of internal components. Featuring a Full Port (Full Bore), the ball opening matches the pipe's inner diameter, ensuring zero flow restriction and minimal pressure drop. Built to ASME B16.34 standards, it is highly durable for oil, gas, and petrochemical applications where reliable shut-off is critical.
Technical Attribute Table: ASME 2-Piece Ball Valve
1,Design Standard,ASME B16.34 / API 6D / BS 5351
2,Face-to-Face,ASME B16.10
3,Flange Dimensions,ASME B16.5 (Raised Face/RTJ)
4,Pressure Class,"Class 150, 300, 600"
5,Body Material,ASTM A216 WCB / LCB / LCC
6,Ball Material,ASTM A105+ENP / SS304 / SS316
7,Seat Material,PTFE / RPTFE / Nylon / Devlon
8,Nominal Diameter,"1/2"" to 12"" (Standard range)"
9,Bore Type,Full Port (Full Bore)
10,Stem Design,Blow-out Proof Stem
11,Anti-Static Device,Spring-loaded (Ball-to-Stem-to-Body)
12,Fire Safe Design,API 607 / API 6FA Certified
13,Stem Packing,Flexible Graphite / PTFE V-Rings
14,Mounting Pad,ISO 5211 (For actuators)
15,Operation,Lever / Gear / Pneumatic / Electric
16,Working Temp.,−29℃ to +200℃ (Soft Seat)
17,Shell Test Pressure,1.5× Rated Working Pressure
18,Seat Test Pressure,1.1× Rated Working Pressure
19,Tightness Class,API 598 / MSS SP-61
20,Finish,Silver Aluminum or Epoxy Coating
