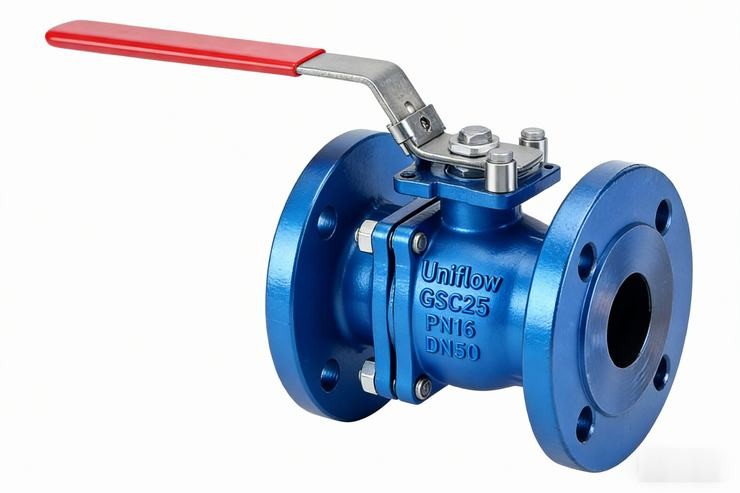

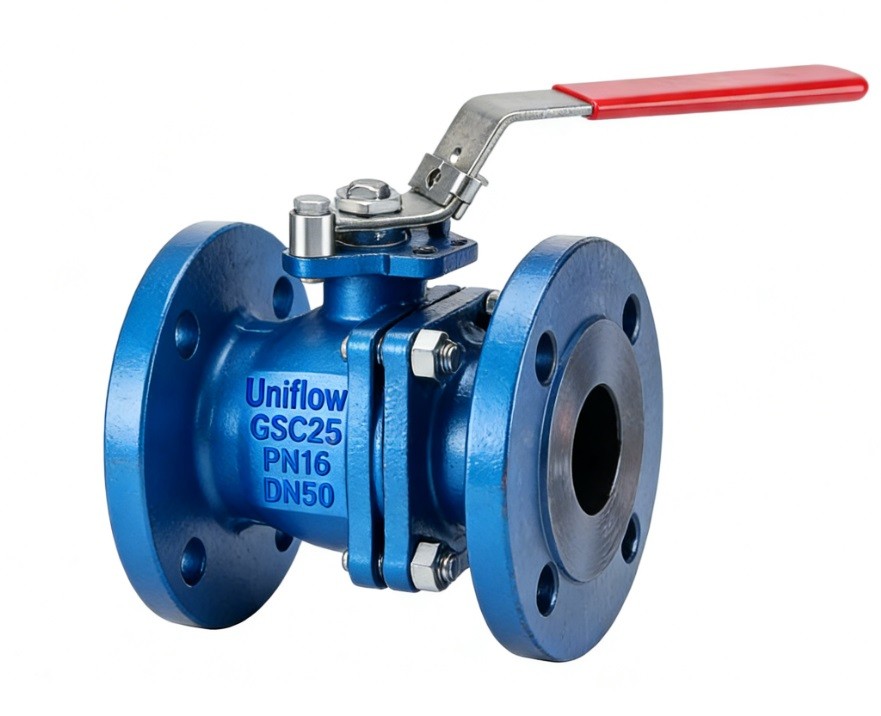

The DIN 3202 F4 Cast Steel Ball Valve is a high-performance quarter-turn valve used for quick shut-off in industrial pipelines. The F4 standard defines a "short" face-to-face length, making it ideal for compact spaces. Constructed from durable cast steel (e.g., GP240GH), it features a floating or trunnion-mounted ball that ensures a tight seal and low torque. It is widely used in oil, gas, and chemical industries for its reliability and ease of automation.
Technical Attribute Table: DIN 3202 F4 Ball Valve
1,Design Standard,DIN EN 1983 / API 6D
2,Face-to-Face,DIN 3202 F4 / EN 558 Series 14
3,Pressure Rating,"PN10, PN16, PN25, PN40"
4,Body Material,Cast Steel (GP240GH / 1.0619 / WCB)
5,Ball Material,Stainless Steel (SS304 / SS316)
6,Seat Material,PTFE / RPTFE / PEEK (Soft Seated)
7,Nominal Diameter,DN15 to DN200 (Standard F4 Range)
8,Flange Connection,DIN EN 1092-1
9,Stem Material,Stainless Steel (X20Cr13 / SS316)
10,Bore Type,Full Bore (No flow restriction)
11,Operation,Lever / Gear / Pneumatic / Electric
12,Anti-Static Device,Included (Spring-loaded ball)
13,Stem Design,Blow-out Proof Stem
14,Fire Safe Design,Optional (API 607 / ISO 10497)
15,Temperature Range,−29℃ to +200℃ (Soft Seat)
16,Shell Test Pressure,1.5× PN Rating
17,Seat Test Pressure,1.1× PN Rating
18,Leakage Class,EN 12266-1 Rate A (Bubble Tight)
19,Top Flange,ISO 5211 (For direct actuator mounting)
20,Suitable Media,"Water, Oil, Gas, Chemicals"
