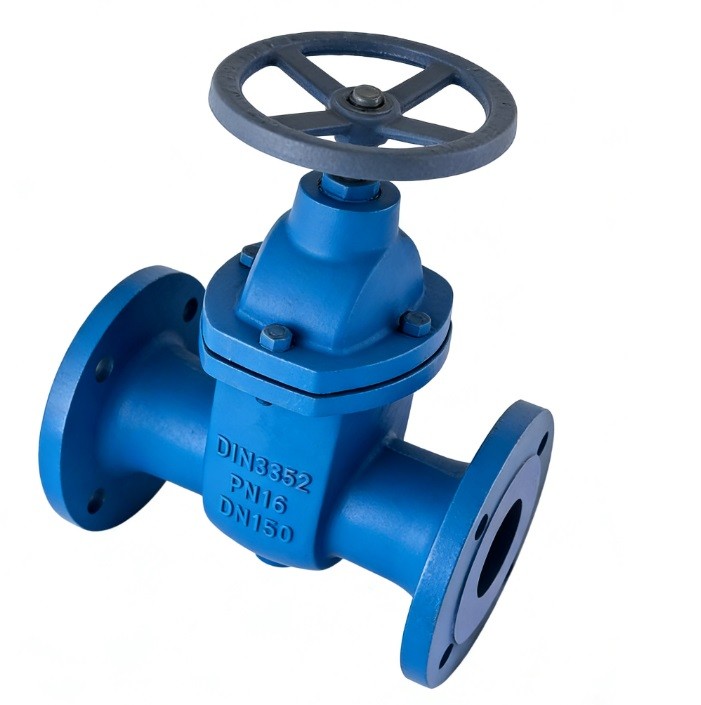

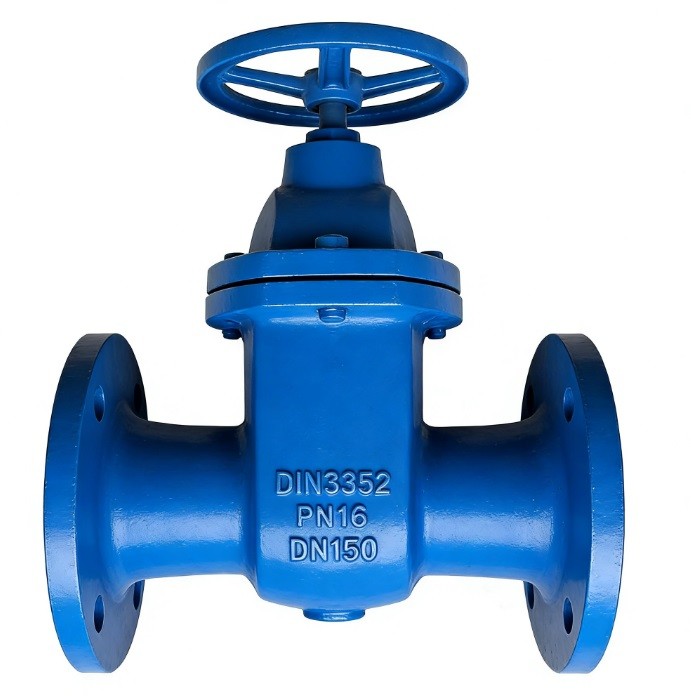

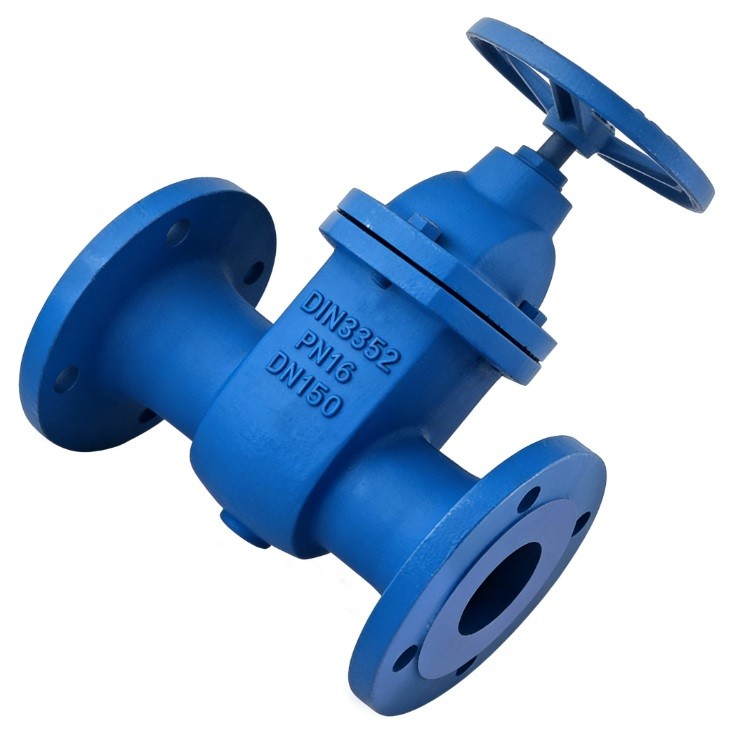

A DIN 3202 F5 NRS Metal Seated Gate Valve is a "Long Series" isolation valve designed for heavy-duty industrial and waterworks applications. It is characterized by its high-durability metal-to-metal sealing system, which makes it suitable for harsher conditions where resilient (rubber) seats might fail.
1. Key Terminology
DIN 3202 F5: This specifies the Long Series face-to-face dimension (EN 558 Series 15). The body is longer than the "F4" version, providing more space between flanges and often making it more robust for high-pressure or high-temperature environments.
NRS (Non-Rising Stem): The stem rotates to actuate the wedge but does not move vertically. This is a critical feature for underground installations or areas with overhead obstructions.
Metal Seated: The seal is formed by high-precision contact between metal rings (usually Brass, Bronze, or Stainless Steel) on the wedge and the valve body.
Technical Attributes
1,Design Standard,DIN 3352 Part 2 / EN 1171
2,Face-to-Face Length,DIN 3202 F5 (Long Series) / EN 558 Series 15
3,Stem Type,NRS (Non-Rising Stem) / Inside Screw
4,Pressure Class,PN10 / PN16 / PN25
5,Body Material,Cast Iron (GG25) or Ductile Iron (GGG40/50)
6,Bonnet Material,Same as Body (GG25 or GGG40/50)
7,Wedge Material,Cast Iron / Ductile Iron with Metal Face Rings
8,Body Seat Ring,"Brass, Bronze, or Stainless Steel
9,Wedge Seat Ring,"Brass, Bronze, or Stainless Steel
10,Stem Material,Stainless Steel AISI 420 / 304 / 316
11,Stem Nut,High Tensile Brass or Bronze
12,Stem Sealing,Adjustable Gland Packing (Graphite) or O-rings
13,Bore Type,Full Bore (Unobstructed flow)
14,Bottom Geometry,Sump-type (Includes groove for wedge seating)
15,Flange Connection,EN 1092-2 / DIN 2501
16,Tightness Class,EN 12266-1 Rate B or C
17,Shell Test Pressure,"1.5×PN (e.g., 24 Bar for PN16)"
18,Seat Test Pressure,"1.1×PN (e.g., 17.6 Bar for PN16)"
19,Temperature Range,0°C to +120°C (Up to +200°C with special packing)
20,Operation,"Handwheel, Square Nut, Gearbox, or Actuator"
21,Coating,Anti-corrosive primer or Fusion Bonded Epoxy (FBE)
