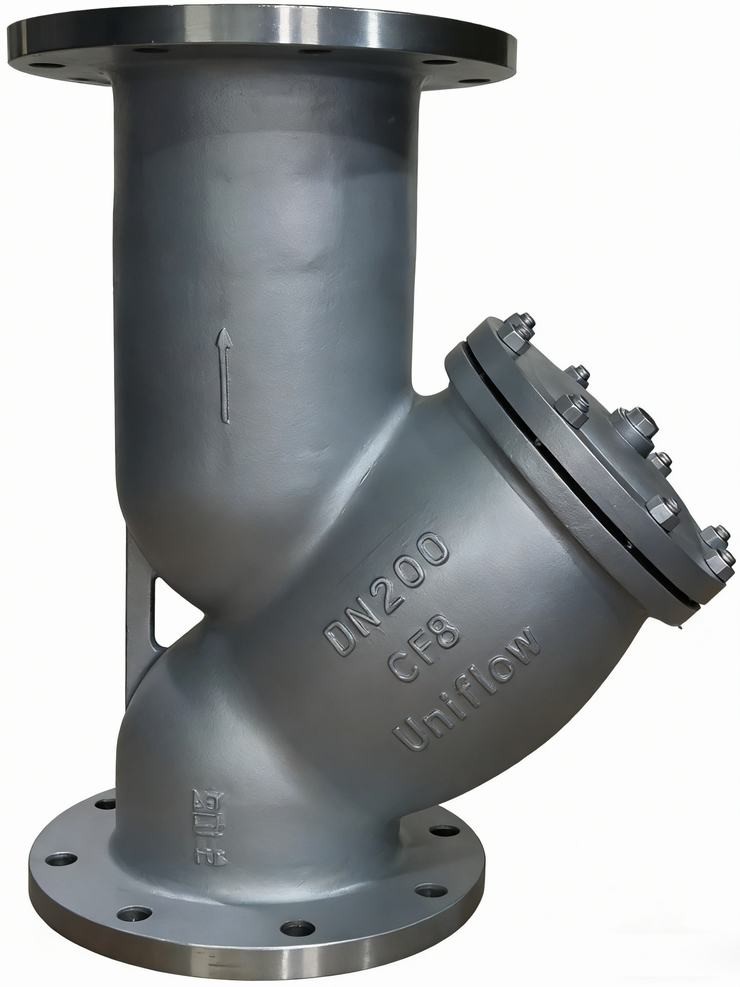

The DIN 3202 F1 PN10 Stainless Steel CF8 Y-Strainer (DN200) is a heavy-duty filtration solution designed to protect downstream equipment like pumps and meters. The F1 length specification follows DIN standards for easy interchangeability. Constructed from CF8 (304 Stainless Steel), it offers excellent resistance to oxidation and chemicals. Its large DN200 size and Y-shaped body optimize flow while trapping debris in a removable mesh screen, ensuring system longevity.
Technical Attributes: DIN 3202 F1 PN10 CF8 Y-Strainer
Body Material,ASTM A351-CF8 (304 Stainless Steel)
Nominal Diameter,DN200 (8 Inch)
Pressure Rating,PN10 (1.0 MPa)
Standardization,DIN 3202-F1 (Face-to-Face)
End Connection,Flanged (EN 1092-1 Type 21)
Screen Material,SS304 Perforated Mesh
Standard Mesh Size,1.5 mm to 3.0 mm (Customizable)
Gasket Material,PTFE / Graphite (High Temp)
Cover Type,Bolted Bonnet with Drain Plug
Drain Port Size,G1/2" or G3/4"
Testing Standard,DIN EN 12266-1
Design Standard,DIN 3356 / EN 12516
Face-to-Face Length,600 mm (M1/F1 Standard)
Working Temp,−20∘C to +200∘C
Internal Finish,Pickled and Passivated
Mounting Position,Horizontal or Vertical (Flow Down)
Bolt/Nut Material,A2-70 (304 Stainless Steel)
Media Type,"Water, Steam, Oil, Corrosive Fluids"
Flow Direction,Unidirectional (Arrow on Body)
Certifications,PED 2014/68/EU
