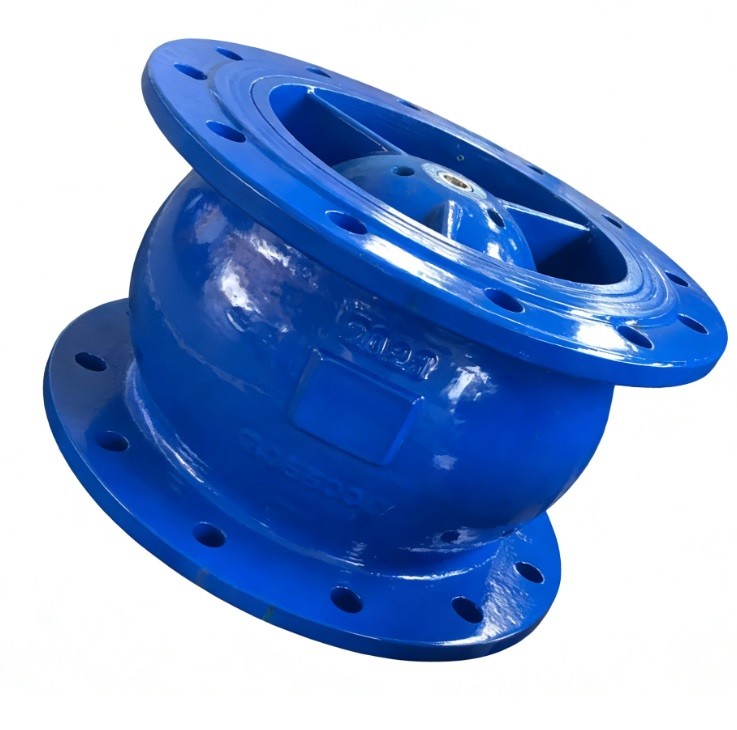

The DIN Ductile Iron Silent Nozzle Check Valve (PN10) is a high-efficiency non-return valve engineered to eliminate water hammer. Its streamlined "nozzle" internal geometry and spring-assisted disc ensure the valve closes before flow reversal occurs, protecting pumps and piping from shock. Built from robust Ductile Iron (GGG40/50) and rated for PN10, it features a short-stroke design for rapid, silent response in water distribution and HVAC systems.
Technical Attributes: DIN Ductile Iron Nozzle Check Valve
Body Material,Ductile Iron (EN-GJS-400-15 / GGG40)
Pressure Rating,PN10 (1.0 MPa)
Design Standard,DIN EN 12334 / BS EN 14341
Face-to-Face,DIN EN 558 Series 14 (Standard)
End Connection,Flanged (DIN EN 1092-2 PN10)
Disc Material,Ductile Iron / Stainless Steel (Optional)
Seat Material,EPDM / NBR / Metal-to-Metal
Spring Material,Stainless Steel (AISI 304 / 316)
Stem/Guide,Stainless Steel / Bronze
Nominal Diameter,DN50 - DN1200
Coating,Fusion Bonded Epoxy (Min. 250 microns)
Operating Temp,−10∘C to +80∘C (Seat dependent)
Closure Speed,Fast / Spring-Assisted (Non-Slam)
Flow Geometry,Streamlined Venturi-style Nozzle
Installation,Horizontal or Vertical (Flow Up)
Testing Standard,DIN EN 12266-1
Body Color,Blue (Standard for Water Service)
Media Compatibility,"Potable Water, Sewage, Neutral Liquids"
Maintenance,Maintenance-free Internal Design
Hydraulic Loss,Low Pressure Drop (Low ΔP)
