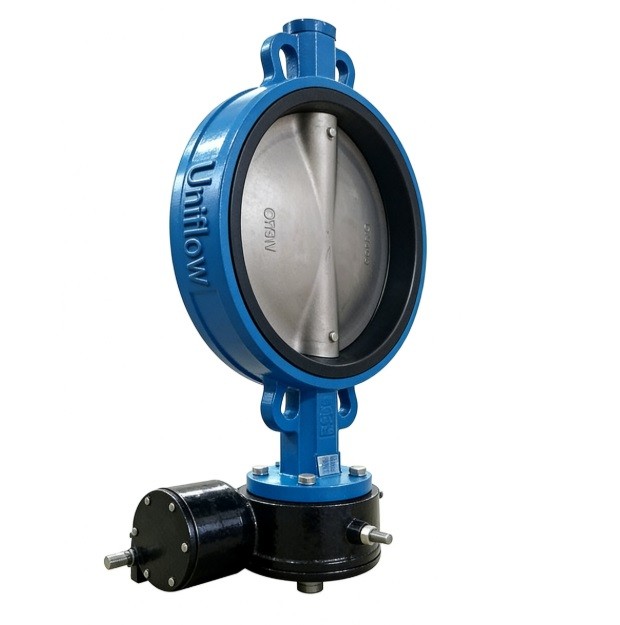

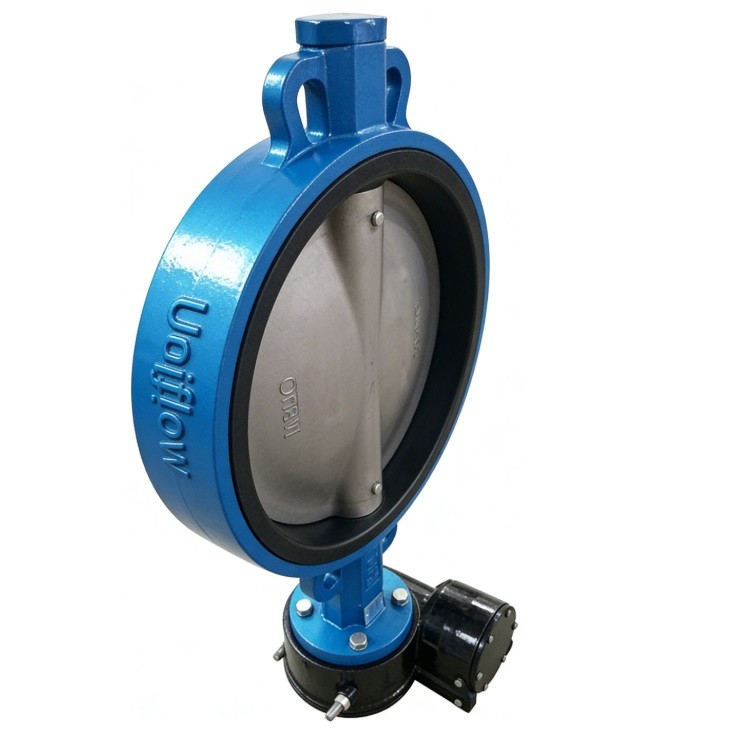

The GG50 Body EPDM Seat Wafer Butterfly Valve is a robust industrial workhorse. Featuring a Ductile Iron (GGG50) body for high mechanical strength and an AISI 316 Stainless Steel disc for superior corrosion resistance, it is built for longevity. The EPDM seat provides a bubble-tight seal in water and steam applications. Equipped with a Gearbox, it allows for precise flow regulation and easy manual operation on larger sizes, meeting both PN10 and PN16 standards.
Technical Attributes: GGG50 Butterfly Valve with Gearbox
Body Material,Ductile Iron (EN-GJS-500-7 / GGG50)
Disc Material,AISI 316 Stainless Steel (CF8M)
Seat Material,EPDM (Ethylene Propylene Diene Monomer)
Stem Material,SS410 / SS420 / SS316
Operation Type,Manual Worm Gearbox with Handwheel
Body Type,Wafer (Centric Design)
Pressure Rating,Universal PN10 / PN16 Dual-Drilling
Nominal Diameter,DN50 - DN1200
Face-to-Face,EN 558 Series 20 / ISO 5752
Top Flange Pad,ISO 5211 Standard
Working Temp,−15℃ to +120℃
Media Compatibility,"Water, Waste Water, Low-Pressure Steam"
Coating,Fusion Bonded Epoxy (FBE) - Blue
Shaft Design,One-Piece or Two-Piece Spline/Square
Leakage Class,Zero Leakage (Class A / Class VI)
Bushing Material,PTFE or Bronze
Installation,"Fits between DIN, ANSI, or BS Flanges"
Testing Standard,API 598 / EN 12266-1
Design Standard,API 609 / EN 593
Gearbox IP Rating,IP65 / IP67 (Weatherproof)
