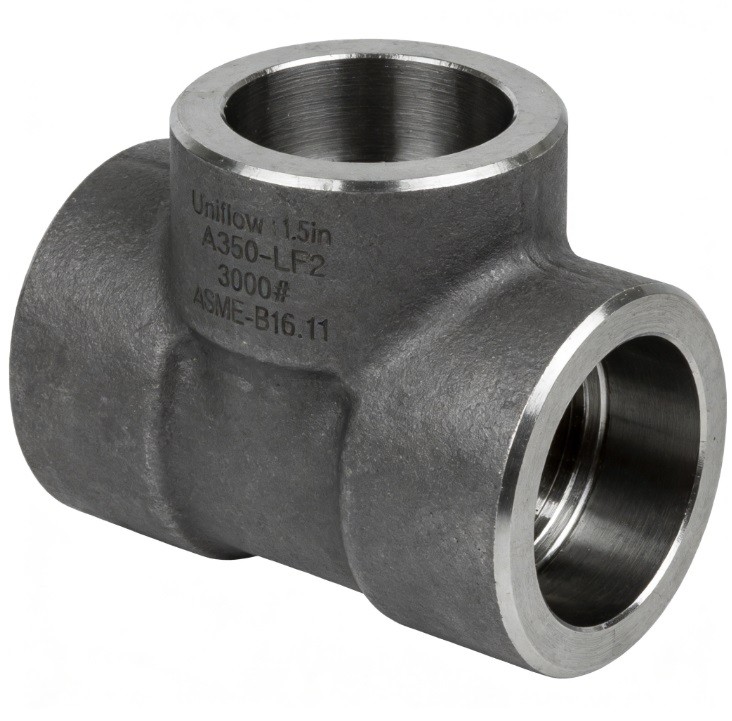

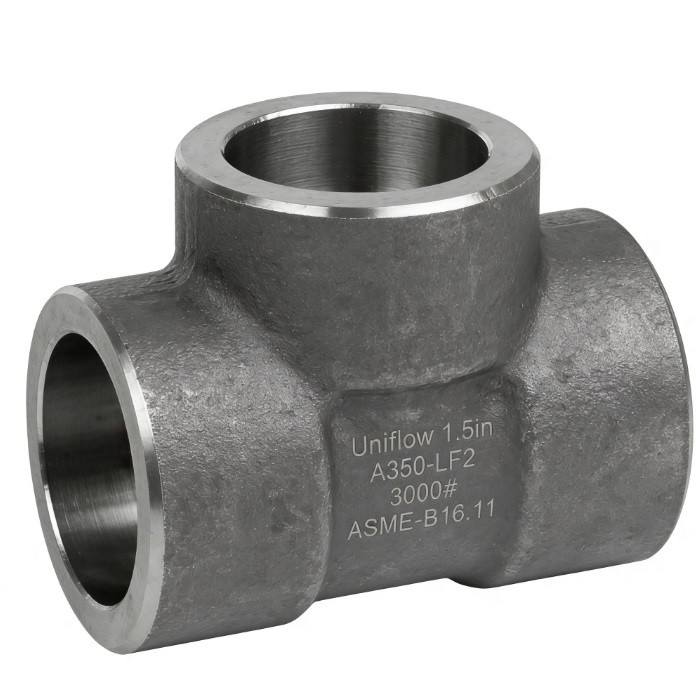

The ASME B16.11 A350 LF2 Socket Weld Tee is a high-pressure branching fitting specifically engineered for low-temperature and cryogenic service. Forged from fine-grained carbon-alloy steel, it is normalized to ensure exceptional toughness down to -46℃ (-50°F). The 3000# rating provides the strength required for high-pressure gas headers, LNG processing, and refrigeration units. Its socket design allows for rapid, precise pipe alignment and a permanent, leak-proof seal in extreme environments.
Technical Attributes: A350 LF2 3000# Socket Weld Tee
Standard,ASME B16.11 / ASTM A350
Material Grade,ASTM A350 LF2 Class 1
Fitting Type,Straight Tee (Equal Tee)
Pressure Class,3000 LBS (Class 3000)
Size Range,1/8" to 4" (NPS)
Manufacturing,"Forged, Fine-Grain Practice, Machined"
End Connection,Socket Weld (SW)
Service Temp,Down to −46∘C (−50∘F)
Tensile Strength,485–655 MPa (70–95 ksi)
Yield Strength,≥250 MPa (36 ksi)
Carbon Content,≤0.30%
Manganese Content,0.60%–1.35%
Impact Energy,≥20 J (Charpy V-Notch at −46∘C)
Heat Treatment,Normalizing or Quenching & Tempering
Hardness,≤197 HBW
Testing Standard,"Charpy Impact, UT, MT, Hardness"
Surface Finish,Anti-rust Oil / Black Phosphated
Certification,EN 10204 3.1 / MTR
Primary Use,"LPG, LNG, and Arctic Gas Transmission"
