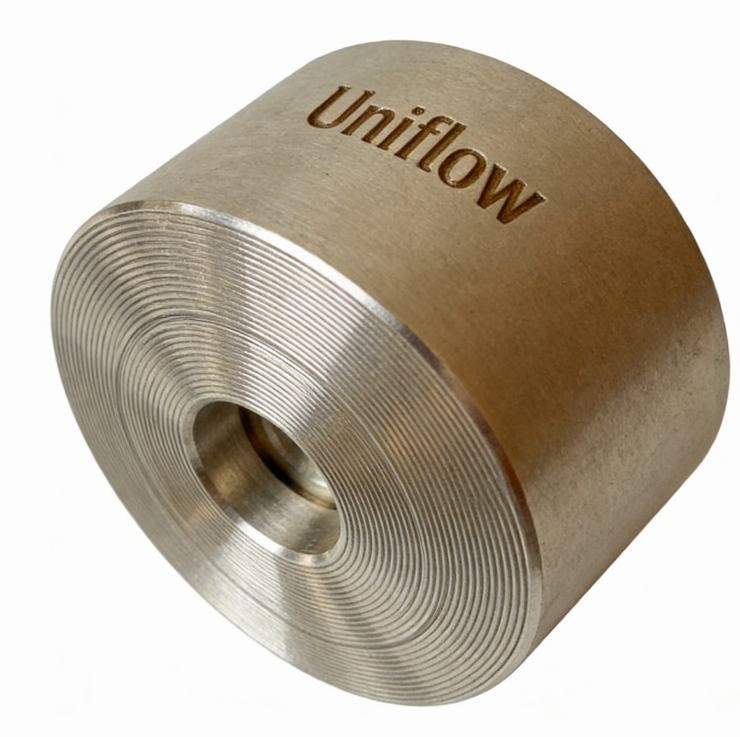

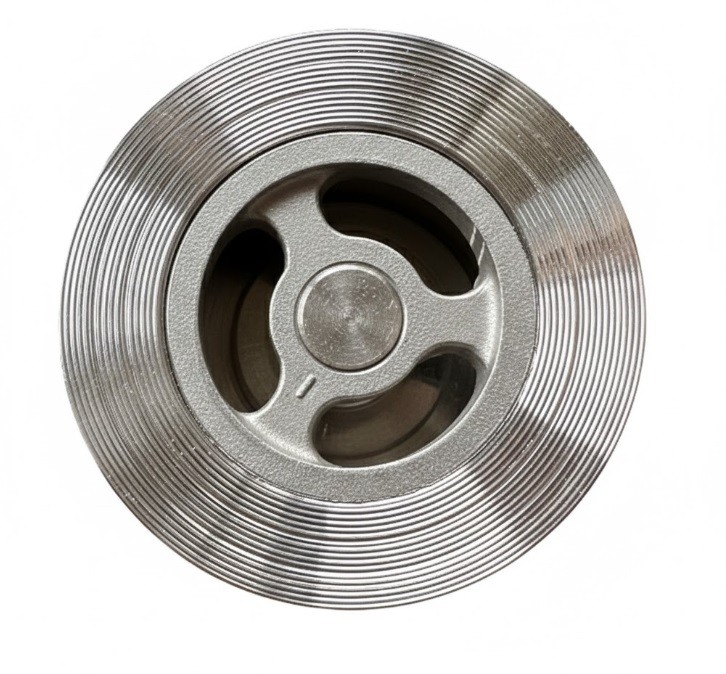

The CF8 Class 300 Metal Seat Wafer Spring Check Valve is a high-performance, single-plate valve designed for extreme industrial environments. The CF8 (304 Stainless Steel) body offers excellent corrosion resistance, while the metal-to-metal seat ensures durability in high-temperature or abrasive services where soft seats would fail. Its compact wafer design fits between flanges to save space and weight, with a spring-assisted closure that prevents water hammer and backflow.
Technical Attributes: CF8 Class 300 Metal Seat Wafer Check Valve
Body Material,ASTM A351-CF8 (304 Stainless Steel)
Pressure Class,ASME Class 300
Seat Type,Metal-to-Metal (Integral or Overlay)
Design Standard,API 594 / ASME B16.34
Connection Style,Wafer (Flangeless)
Face-to-Face,API 594 / ASME B16.10
Size Range,1/2" to 24" (DN15 - DN600)
Spring Material,SS304 / SS316 / Inconel (Optional)
Disc Material,SS304 (CF8)
Maximum Pressure,740 PSI (5.1 MPa) at Ambient
Temperature Range,−196℃ to +538℃ (Varies by application)
Applicable Flanges,ASME B16.5 Class 300
Closing Mechanism,Spring-Assisted Silent Closure
Installation,Horizontal or Vertical (Upward flow)
Cracking Pressure,0.02 to 0.05 bar (Standard Spring)
Flow Coefficient (Cv),High Flow Efficiency (Streamlined Disc)
Testing Standard,API 598 (High Pressure Shell/Seat)
Surface Finish,Machined Seating Surfaces
Media Compatibility,"Steam, Thermal Oil, Chemicals, High-Temp Gas"
Anti-Corrosion,Natural Passivated Stainless Steel
