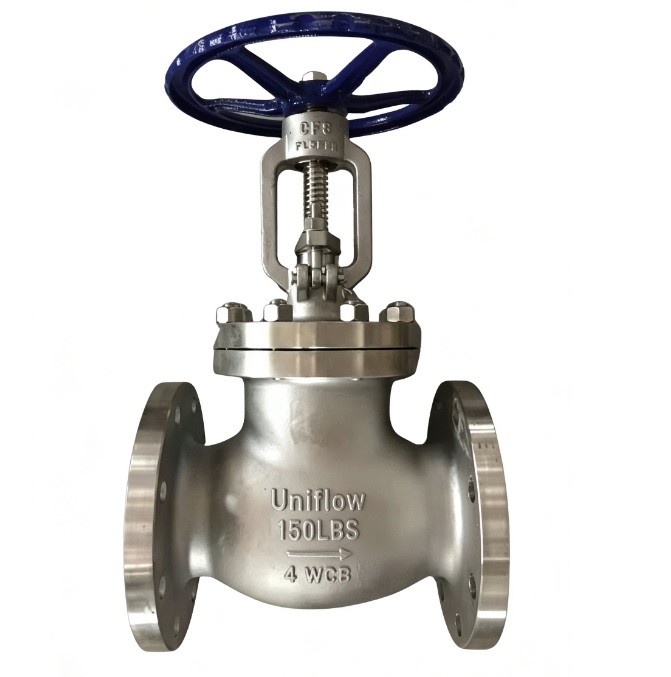

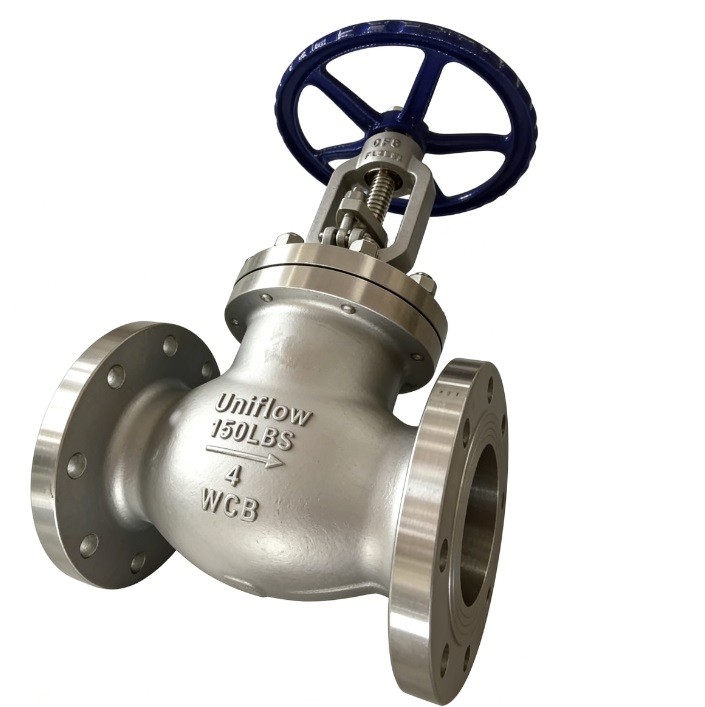

ANSI 150# Globe valve flanged Stainless steel CF8 BODY TRIM 5

Technical Attributes: ANSI 150# CF8 Globe Valve (Trim 5)

Attribute,Specification / Value

Body Material,ASTM A351-CF8 (304 Stainless Steel)

Pressure Class,ASME Class 150

Standard Trim,API Trim 5 (Full Hard-faced)

Seat Material,Stellite Faced (Co-Cr Alloy)

Plug/Disc Material,CF8 + Stellite Faced

Stem Material,ASTM A182-F304

Design Standard,BS 1873 / ASME B16.34

Face-to-Face Dim,ASME B16.10

Flange Standard,ASME B16.5 (Raised Face)

Size Range,2" to 12" (DN50 - DN300)

Bonnet Style,Bolted Bonnet

Stem Type,Rising Stem & Handwheel (OS&Y)

Packing Material,PTFE or Graphite

Body Gasket,SS304 + Graphite Spiral Wound

Flow Characteristic,Linear / Throttling

Temperature Range,−29℃ to +425℃

Pressure Rating,275 PSI @ Ambient

Testing Standard,API 598

Backseat Design,Integral Stainless Steel Backseat

Operation,Handwheel (Impact type for larger sizes)
