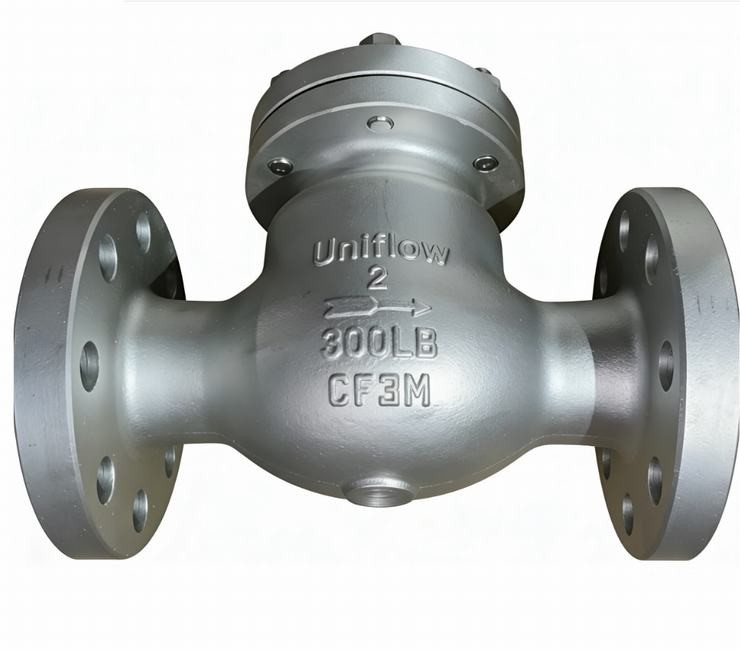

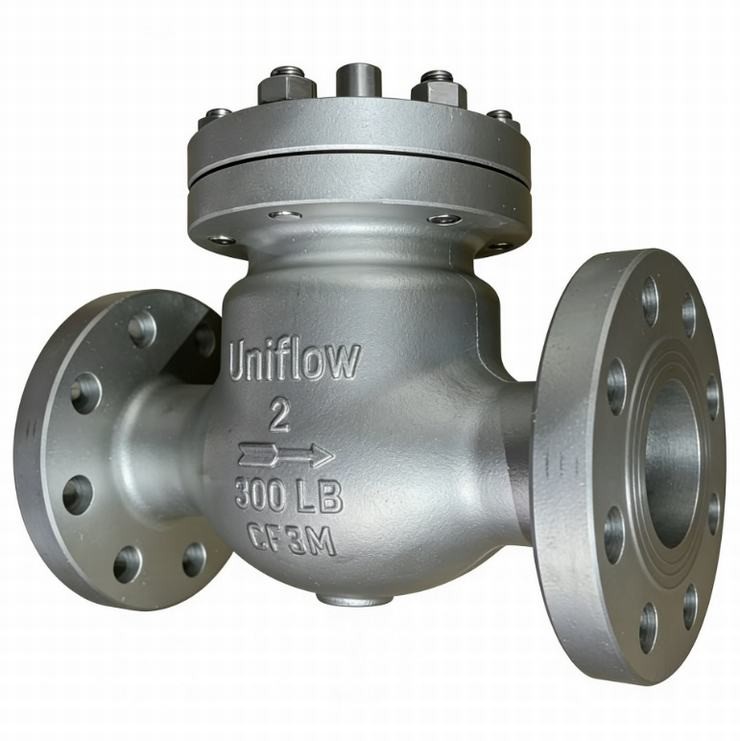

The BS1868 ASTM A351 CF3M Swing Check Valve is a heavy-duty non-return valve designed for high-corrosion environments. The CF3M (316L equivalent) stainless steel body features low carbon content to prevent sensitization during welding. With an ASME Class 300 rating, it handles higher pressures than standard utility valves. The swing-type disc provides a full-flow path with minimal pressure drop, making it ideal for chemical, pharmaceutical, and offshore applications.
Technical Attribute Table: BS1868 CF3M Class 300 Check Valve
1,Design Standard,BS 1868 / ASME B16.34
2,Pressure Class,Class 300 (300 LBS)
3,Body Material,ASTM A351 CF3M (316L Stainless Steel)
4,Trim Material,API Trim No. 12 (SS316L)
5,Nominal Diameter,"2"" to 24"""
6,End Connection,Flanged Raised Face (RF)
7,Flange Standard,ASME B16.5
8,Face-to-Face,ASME B16.10
9,Cover Design,Bolted Cover (BC)
10,Disc Design,Swing Type (Self-aligning)
11,Seat Ring,Renewable or Integral SS316L
12,Hinge Pin,ASTM A479 316L
13,Gasket,Spiral Wound SS316L + Graphite
14,Flow Characteristic,Full Port / Low Resistance
15,Orientation,Horizontal or Vertical (Upward flow)
16,Temp. Range,−196℃ to +450℃
17,Shell Test Pressure,7.7 MPa (approx. 1125 psi)
18,Seat Test Pressure,5.7 MPa (approx. 825 psi)
19,Leakage Rate,API 598
20,Surface Finish,Pickled and Passivated
