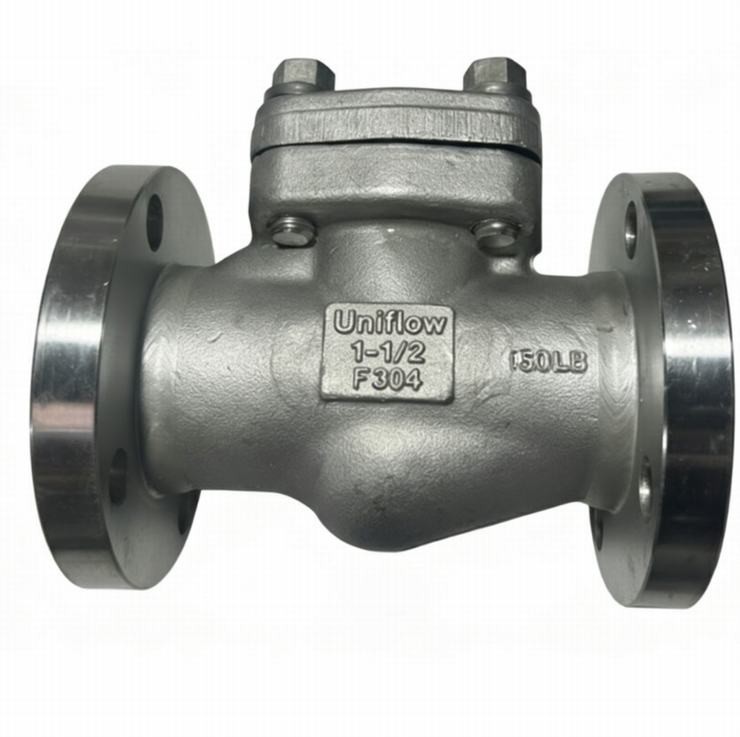

The API 602 Flanged 150lbs Forged Steel F304 Swing Check Valve is a high-strength non-return valve designed for smaller-bore piping systems. Unlike cast valves, the forged (F304) body offers superior structural integrity and resistance to thermal fatigue. Featuring ASME Class 150 flanges with a Raised Face (RF), it automatically prevents backflow using a swinging disc. It is a reliable choice for chemical processing and steam services where leak prevention is vital.
Technical Attribute Table: API 602 F304 Swing Check Valve
No.,Attribute,Specification / Standard
1,Design Standard,API 602 / ASME B16.34
2,Pressure Class,Class 150 (150lbs)
3,Body Material,Forged Stainless Steel ASTM A182 F304
4,Trim Material,API Trim No. 10 (SS304)
5,Nominal Diameter,1/2" to 2" (Standard API 602 range)
6,End Connection,Flanged Raised Face (RF)
7,Flange Standard,ASME B16.5
8,Face-to-Face,ASME B16.10
9,Cover Type,Bolted Cover (BC)
10,Disc Type,Swing Type (Self-aligning)
11,Seat Material,Integral or Renewable SS304
12,Hinge Pin,Stainless Steel (SS304 / SS316)
13,Gasket,SS304 + Flexible Graphite (Spiral Wound)
14,Flow Direction,Uni-directional (Arrow on body)
15,Installation,Horizontal or Vertical (Flow Up)
16,Working Temp.,−196℃ to +538℃ (Material limit)
17,Shell Test Pressure,450 PSI (3.1 MPa)
18,Seat Test Pressure,315 PSI (2.2 MPa)
19,Bolting,ASTM A193 B8 / A194 Gr.8
20,Finish,Pickled and Passivated
