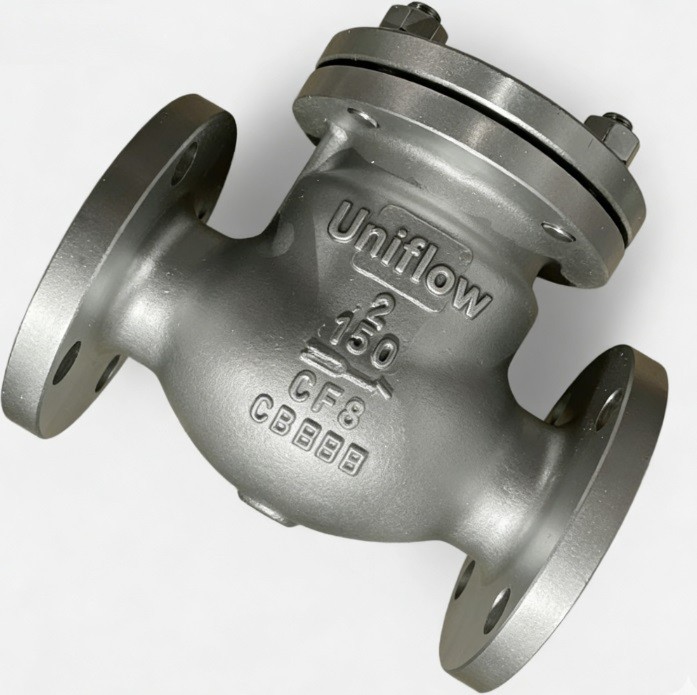

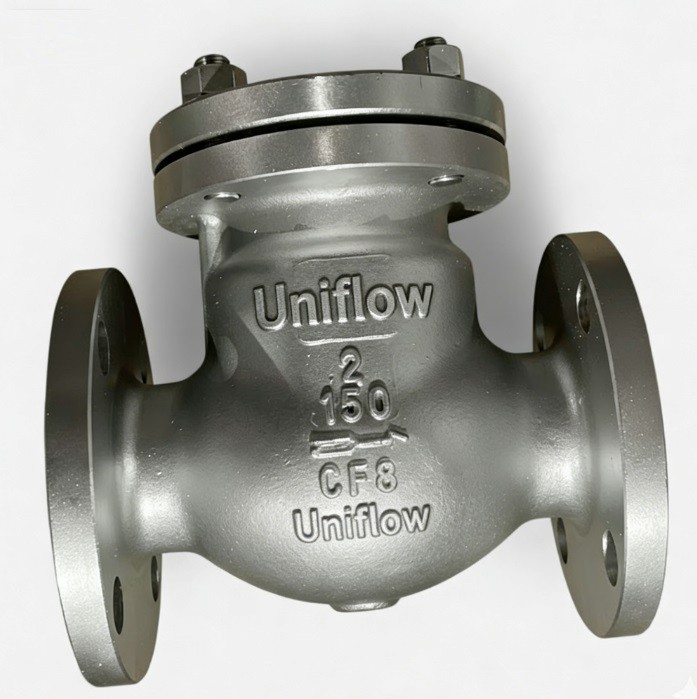

The BS1868 ASTM A351 CF8 Swing Check Valve is a standard industrial non-return valve designed to prevent backflow in stainless steel piping. The CF8 (304 equivalent) material provides excellent corrosion resistance for water, oil, and chemical services. Operating at 150lbs (Class 150), it features a bolted cover for easy internal maintenance. Its swing-type disc offers a clear, full-bore flow path, minimizing pressure loss and ensuring efficiency in low-pressure systems.
Technical Attribute Table: BS1868 CF8 Class 150 Check Valve
1,Design Standard,BS 1868 / ASME B16.34
2,Pressure Class,Class 150 (150 LBS)
3,Body Material,ASTM A351 CF8 (304 Stainless Steel)
4,Trim Material,API Trim No. 2 (304 / 304)
5,Nominal Diameter,2" to 36"
6,End Connection,Flanged Raised Face (RF)
7,Flange Standard,ASME B16.5
8,Face-to-Face,ASME B16.10
9,Cover Design,Bolted Cover (BC)
10,Disc Design,Swing Type (Gravity closure)
11,Seat Type,Integral or Renewable Seat Ring
12,Hinge Pin,Stainless Steel (SS304)
13,Gasket,SS304 + Graphite (Spiral Wound)
14,Flow Direction,One-way (As indicated on body)
15,Orientation,Horizontal or Vertical (Upflow only)
16,Temp. Range,−196℃ to +538℃
17,Shell Test Pressure,3.1 MPa (approx. 450 psi)
18,Seat Test Pressure,2.2 MPa (approx. 320 psi)
19,Leakage Rate,API 598
20,Surface Finish,Shot Blasted / Pickled and Passivated
