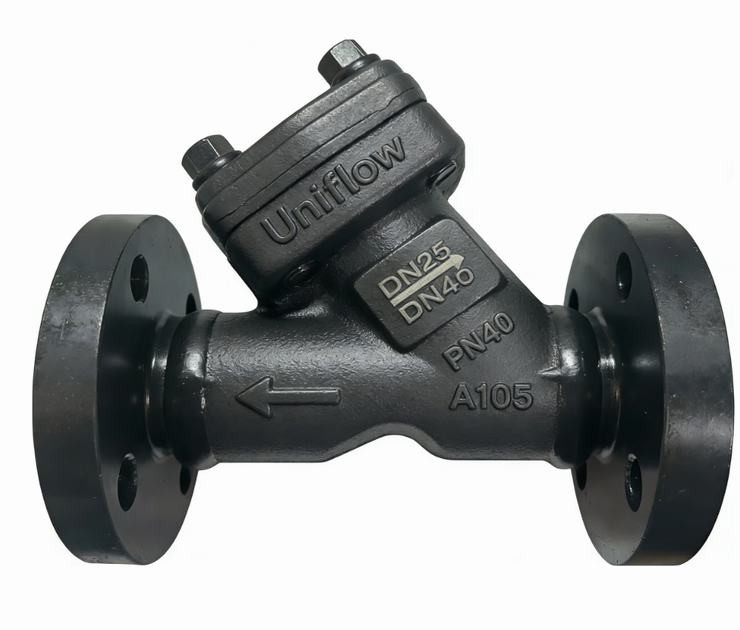

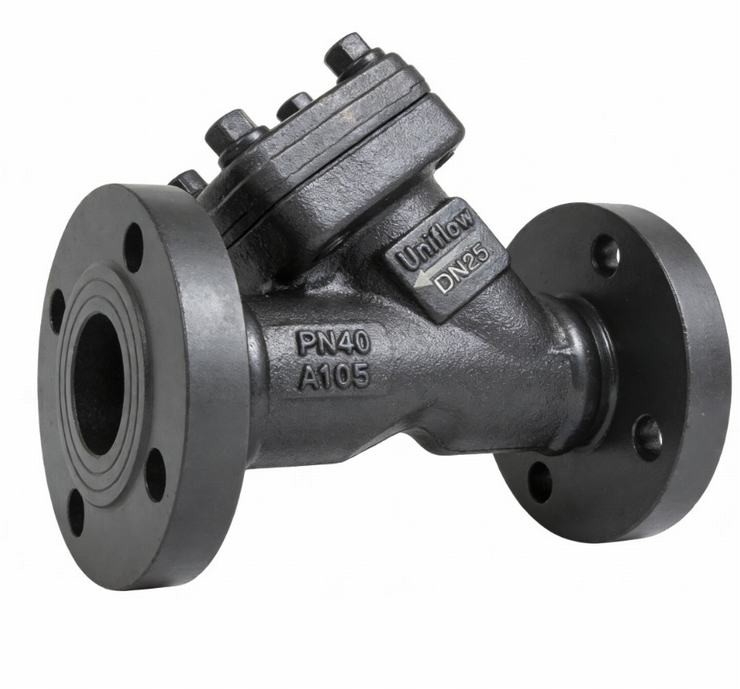

The PN40 DIN3202 F1 Forged Steel A105 Y-Strainer is a high-pressure filtration component used to protect downstream equipment from debris. The forged A105 body provides superior strength compared to cast versions, making it ideal for steam and high-temp oil service. The F1 (Long Pattern) face-to-face dimension ensures a larger filtration area within the "Y" chamber. Its flanged design and PN40 rating make it a robust choice for heavy industrial and power plant piping.
Technical Attribute Table: PN40 A105 Y-Strainer
1,Design Standard,DIN EN 12516 / ASME B16.34
2,Face-to-Face,DIN 3202 F1 / EN 558 Series 1
3,Pressure Rating,PN40 (4.0 MPa / 40 Bar)
4,Body Material,Forged Carbon Steel ASTM A105
5,Screen/Mesh Material,Stainless Steel (SS304 / SS316)
6,Nominal Diameter,DN15 to DN50 (Standard Forged Range)
7,Flange Connection,DIN EN 1092-1 Type 21 RF
8,Screen Hole Size,0.8mm to 2.0mm (Customizable)
9,Mesh Count,20 to 200 Mesh
10,Bonnet/Cover Type,Bolted Bonnet with Drain Plug
11,Drain Plug Size,1/2" or 3/4" NPT/G
12,Gasket Material,SS304 + Graphite (Spiral Wound)
13,Flow Direction,Uni-directional (Arrow on body)
14,Installation,Horizontal or Vertical (Downflow)
15,Temperature Range,−29℃ to +425℃
16,Shell Test Pressure,6.0 MPa (60 Bar)
17,Bolting Material,ASTM A193 B7 / A194 2H
18,Filtration Area,Large (F1 Long Pattern Design)
19,Surface Finish,Anti-corrosive Painting / Blackened
20,Cleaning Access,Removable Screen via Bolted Cover
