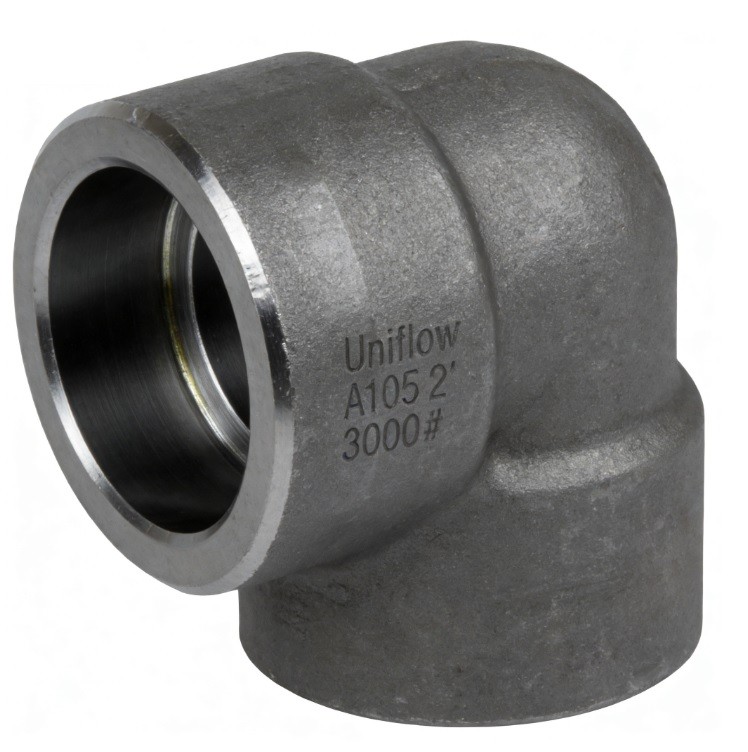

The ASME B16.11 Forged Carbon Steel Socket Weld Elbow is a high-pressure fitting designed for small-bore piping systems (typically $\le$ 2"). Unlike butt-weld elbows, the pipe is inserted into a recessed "socket" before welding, ensuring easy alignment and high structural strength. Forged from ASTM A105, these elbows are rated for 3000#, 6000#, or 9000# service. They are essential for hydraulic lines, steam distribution, and chemical plants where leak-proof, permanent joints are required in confined spaces
Technical Attributes: Socket Weld Forged Elbow
Standard,ASME B16.11 / BS 3799
Material Grade,ASTM A105 / A105N (Normalized)
Fitting Type,90° or 45° Socket Weld Elbow
Pressure Class,"3000#, 6000#, 9000#"
Size Range,1/8" to 4" (NPS)
Manufacturing,"Forged, Heat Treated, Machined"
End Connection,Socket Weld (SW)
Carbon Content,≤0.35%
Manganese Content,0.60%–1.05%
Tensile Strength,≥485 MPa (70 ksi)
Yield Strength,≥250 MPa (36 ksi)
Hardness,≤187 HBW
Heat Treatment,Normalizing / Quenching & Tempering
Testing Standard,"UT, MT, Dimensional, Hardness"
Surface Finish,Anti-rust Oil / Galvanized / Black Paint
Dimensional Check,Socket Dia (B) & Depth (C) per B16.11
Certification,EN 10204 3.1 / MTR
Traceability,Heat Number & Rating Hard Stamped
Primary Use,High-Pressure Small Bore Piping
