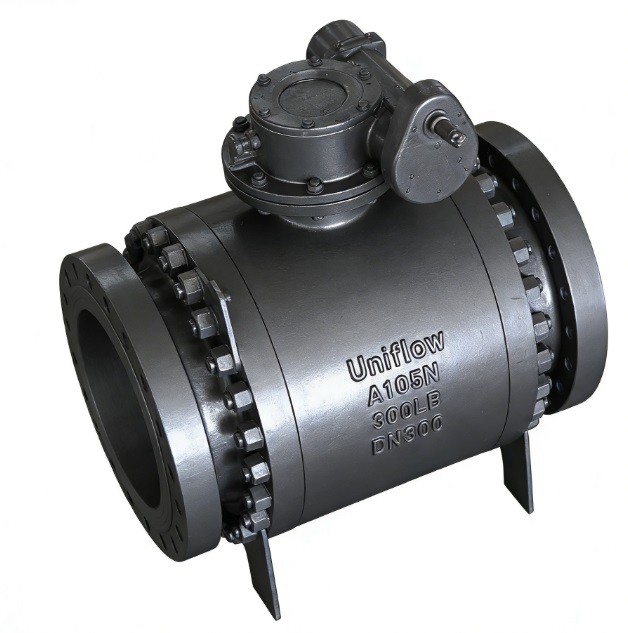

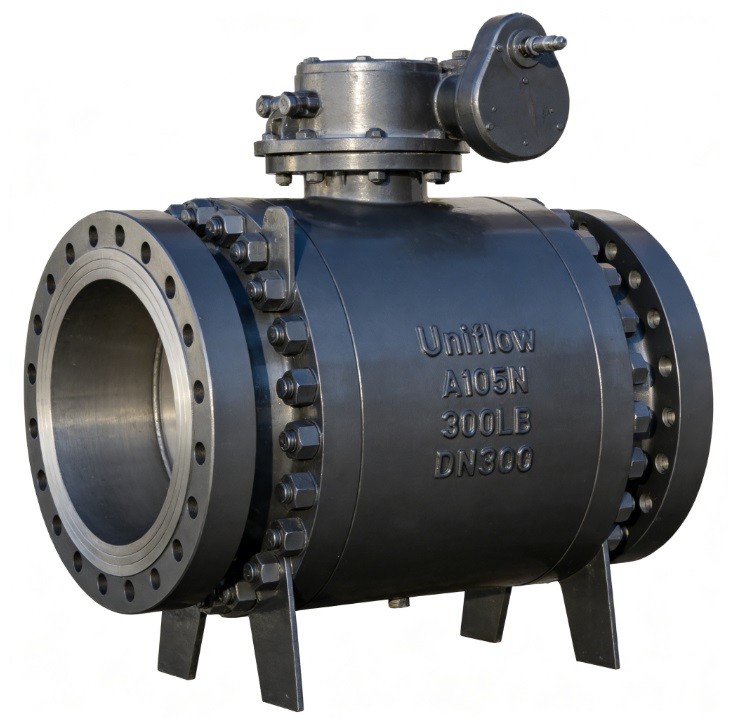

The ASME Side Entry Resilient Seated Ball Valve features a trunnion-mounted design where the ball is held by fixed bearings. The "Side Entry" construction allows for the valve to be assembled through the side of the body, offering easy access to internal components. "Resilient Seated" means it uses soft materials (like PTFE) to ensure a bubble-tight, zero-leakage seal at lower temperatures. It is a workhorse for mid-range pressure applications in oil, gas, and water distribution.
Technical Attribute Table: Side Entry Resilient Trunnion Ball Valve
1,Design Standard,API 6D / ASME B16.34
2,Body Construction,2-Piece or 3-Piece Side Entry
3,Pressure Class,"ASME Class 150, 300, 600"
4,Body Material,ASTM A216 WCB / A350 LF2 / A105
5,Ball Material,A105+ENP / SS304 / SS316
6,Seat Material,PTFE / RPTFE / Devlon / Nylon
7,Nominal Size,"2"" to 36"""
8,Bore Type,Full Port (Standard) or Reduced Port
9,Stem Design,Blowout Proof Stem
10,Sealing Type,Resilient (Soft) Seated
11,Fire Safe Design,API 607 / API 6FA
12,Feature,Double Block and Bleed (DBB)
13,Anti-Static,Built-in Anti-static Device
14,Operation,Gearbox / Pneumatic / Electric Actuator
15,Mounting Pad,ISO 5211
16,Stem Sealing,O-Rings + Graphite Packing
17,Shell Test,1.5× Working Pressure
18,Seat Test,1.1× Working Pressure (Low/High)
19,Temperature Range,−29℃ to +150℃ (Soft Seat Limit)
20,Emergency Seal,Sealant Injection Fittings
