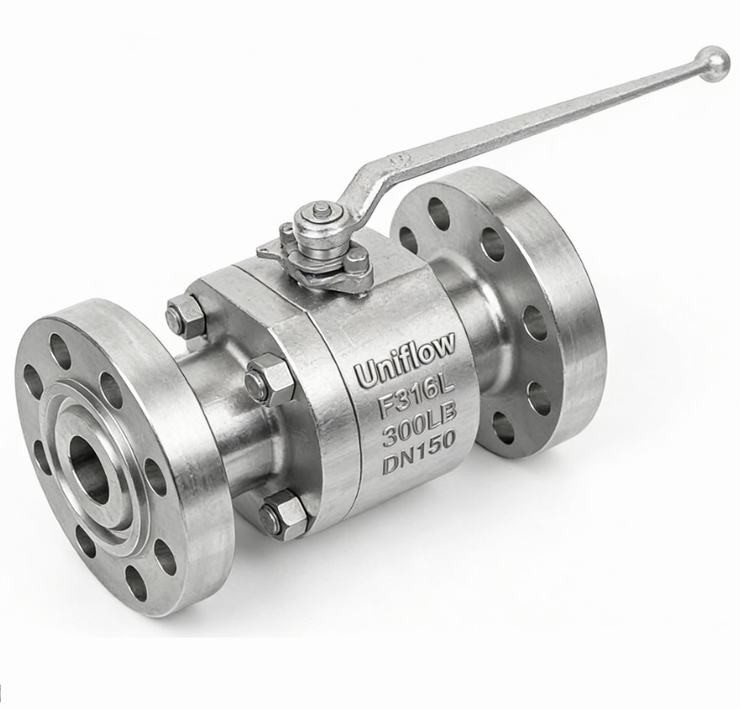

The Forged Stainless Steel Floating Ball Valve (F304/F316) is a high-strength isolation valve available in 2-piece (standard) or 3-piece (easy maintenance) designs. Unlike cast valves, the forged body eliminates porosity, making it ideal for high-pressure or high-purity service. The "floating" ball is held by seats and moves slightly to ensure a tight downstream seal. It is a top choice for chemical, pharmaceutical, and food-grade pipelines.
Technical Attribute Table: Forged Stainless Steel Ball Valve
1,Design Standard,ASME B16.34 / API 608 / ISO 17292
2,Body Type,2-Piece or 3-Piece Bolted
3,Manufacturing,"Forged (A182 F304, F316, F316L)"
4,Pressure Class,Class 150 – 800 (or PN16 – PN100)
5,Nominal Size,1/2" to 4" (Standard floating range)
6,Ball Material,Stainless Steel (F304 / F316)
7,Seat Material,PTFE / RPTFE / PEEK / Kel-F
8,Stem Design,Blow-out Proof Stem
9,Bore Type,Full Port or Reduced Port
10,End Connection,"Threaded (NPT/BSPT), SW, or Flanged"
11,Fire Safe Design,API 607 (Optional)
12,Anti-Static,Integrated Spring-and-Ball device
13,Stem Seal,V-Ring Packing / O-Rings
14,Operation,Lever with Locking Device (Standard)
15,Mounting Pad,ISO 5211 (For actuators)
16,Max Temp (Soft),Up to 200∘C (RPTFE)
17,Shell Test,1.5× Rated Pressure
18,Seat Test,1.1× Rated Pressure
19,Surface Finish,Machined / Electropolished (Optional)
20,Suitable Media,"Acids, Chemicals, Food, Potable Water"
