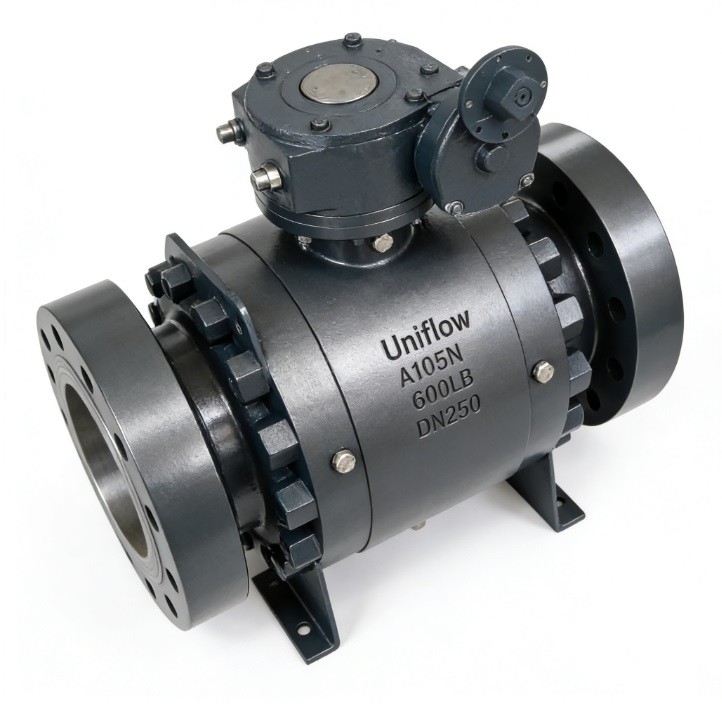

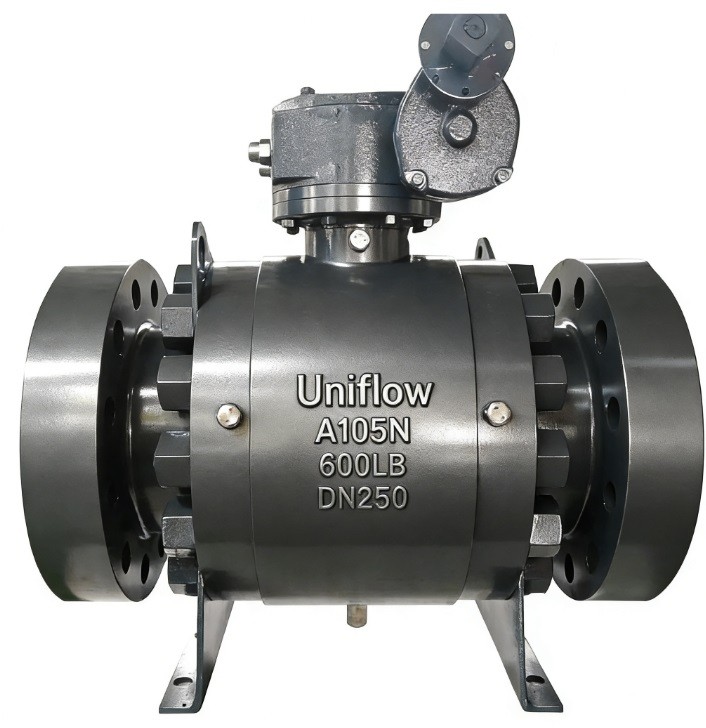

The ASME Trunnion Subsea Ball Valve is a specialized, high-integrity valve designed for deep-water environments. It features a blowout-proof stem and a fixed-ball (trunnion) design to manage high pressures and extreme external depths. Engineered for durability, it utilizes corrosion-resistant materials and specialized seals to prevent seawater ingress. These valves are critical for subsea manifolds and pipelines where maintenance is difficult and zero-failure reliability is mandatory.
Technical Attribute Table: Subsea Trunnion Ball Valve
1,Design Standard,API 6DSS / ASME B16.34
2,Pressure Class,Class 150 – 2500
3,Body Material,ASTM A694 / Duplex SS / Super Duplex
4,Ball & Stem,Inconel 625 Clad or Solid Duplex
5,Seat Design,Metal-to-Metal with Tungsten Carbide Coating
6,Stem Design,Blowout Proof (Internal Entry)
7,Sealing System,Triple Stem Seals (Seawater Protection)
8,Operation,ROV (Remote Operated Vehicle) Interface
9,Depth Rating,"Up to 3,000 meters (10,000 ft)"
10,Fire Safe,API 607 / API 6FA Certified
11,Design Life,20 to 30 Years (Maintenance-Free)
12,End Connections,Flanged (ASME B16.5) or Butt-Weld
13,Bore Type,Full Port (Pigging Capable)
14,Feature,Double Block and Bleed (DBB)
15,Anti-Static,Integrated Internal Grounding
16,Bolting,Inconel 718 / B7M (Zinc Plated/Coated)
17,Coating,Fusion Bonded Epoxy (FBE) / Xylan
18,Hyperbaric Test,Per API 6DSS / ISO 14723
19,Temperature,−46℃ to +121℃ (Subsea range)
20,Tightness Class,ISO 5208 Rate A / API 6D
