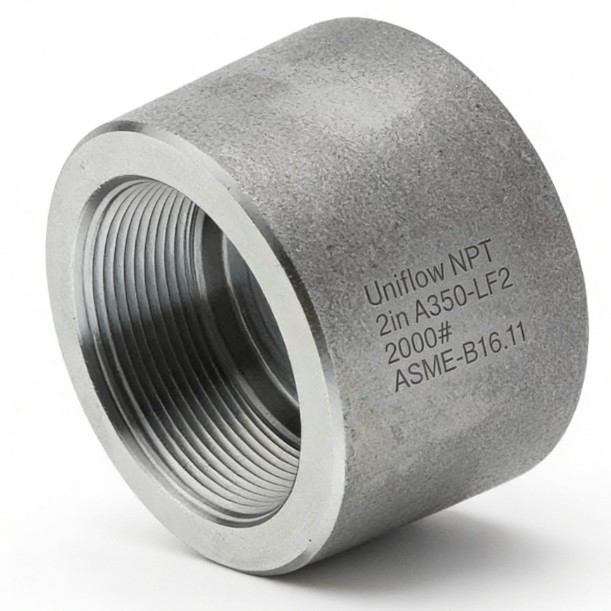

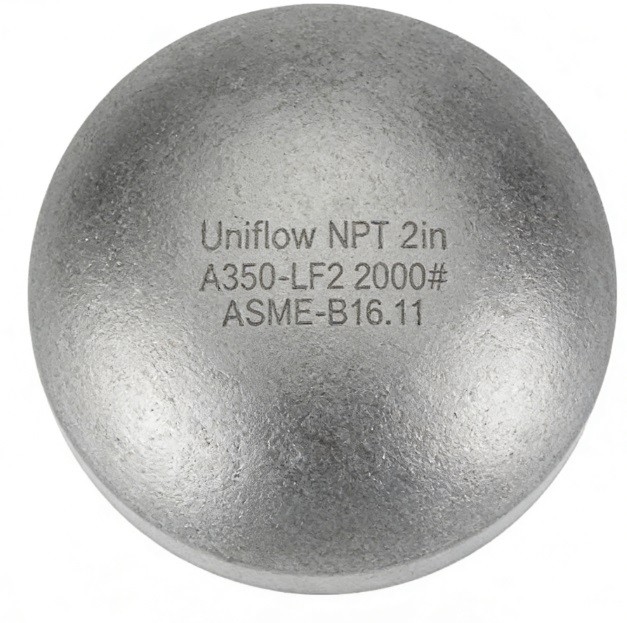

The ASME B16.11 A350 LF2 Threaded Cap is a high-pressure forged fitting designed for low-temperature and cryogenic pipe termination. Forged from fine-grained alloy steel, it maintains superior notch toughness down to -46℃. Precision internal NPT threads ensure a leak-proof seal without the need for welding. Rated for 2000 PSI, it is the industry standard for sealing branch ends, sampling points, and headers in LNG processing and arctic oil and gas facilities.
Technical Attributes: A350 LF2 2000# Threaded Cap
Standard,ASME B16.11 / BS 3799
Material Grade,ASTM A350 LF2 Class 1
Fitting Type,Threaded End Cap
Pressure Class,2000 LBS (Class 2000)
Size Range,1/8" to 4" (NPS)
Thread Type,NPT (ASME B1.20.1 Tapered)
Service Temp,Down to −46∘C (−50∘F)
Impact Energy,≥20 J (Charpy V-Notch at −46∘C)
Tensile Strength,485–655 MPa
Yield Strength,≥250 MPa
Manufacturing,"Forged, Fine-Grain Practice, Machined"
Heat Treatment,Normalizing or Quenching & Tempering
Hardness,≤197 HBW
Testing Standard,"Charpy Impact, UT, MT, Thread Gauging"
Surface Finish,Anti-rust Oil / Galvanized / Phosphated
Wall Thickness,Reinforced for 2000# Rating
Certification,EN 10204 3.1 / MTR
Marking,"Grade, Rating, Size, Heat No"
Primary Use,Cryogenic & Low-Temp End Sealing
