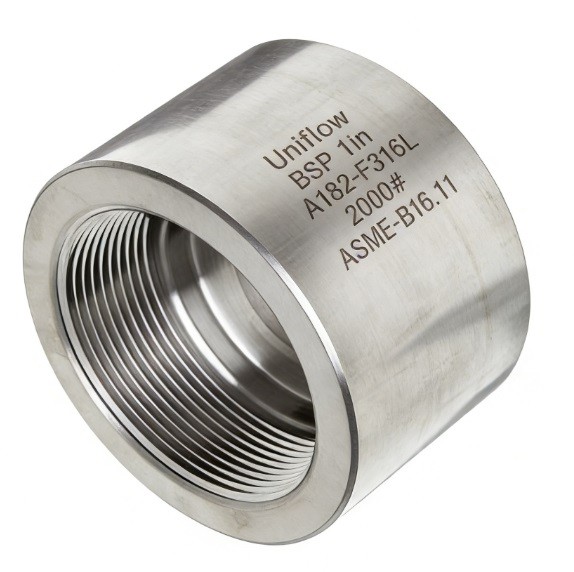

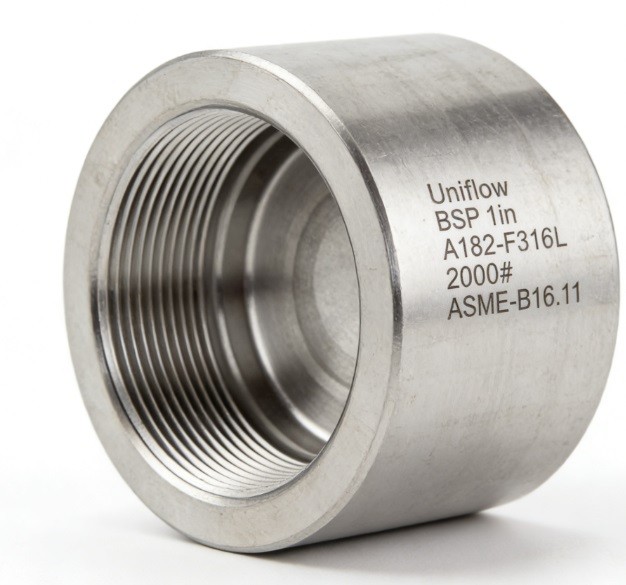

The ASME B16.11 Stainless 2000# NPT Threaded Cap is a high-pressure forged fitting used to seal the end of a piping run. Forged from grades like 316L or 316Ti, it provides exceptional resistance to chemical corrosion and oxidation. Its precision-machined internal NPT threads allow for a secure, leak-proof termination without welding. Rated for 2000 PSI, it is a critical component for instrumentation, sampling ports, and temporary line closures in pharmaceutical and marine industries.
Technical Attributes: SS 2000# Threaded End Cap
Standard,ASME B16.11 / BS 3799
Material Grades,"ASTM A182 F304/L, F316/L, F316Ti, F321"
Fitting Type,Threaded Cap (End Closure)
Pressure Class,2000 LBS (Class 2000)
Size Range,1/8" to 4" (NPS)
Thread Type,NPT (ASME B1.20.1 Tapered)
Manufacturing,"Forged, Solution Annealed, Machined"
Chromium Content,16.0%–20.0%
Nickel Content,8.0%–14.0%
Molybdenum (316L),2.0%–3.0%
Titanium (316Ti),Stabilized against sensitization
Tensile Strength,≥485 MPa (70 ksi)
Yield Strength,≥170–205 MPa
Heat Treatment,Solution Annealing & Water Quench
Testing Standard,"PMI, PT (Liquid Penetrant), Thread Gauging"
Hardness,≤192 HBW
Surface Finish,Pickled and Passivated
Certification,EN 10204 3.1 / MTR
Primary Use,High-Pressure Pipe End Sealing
