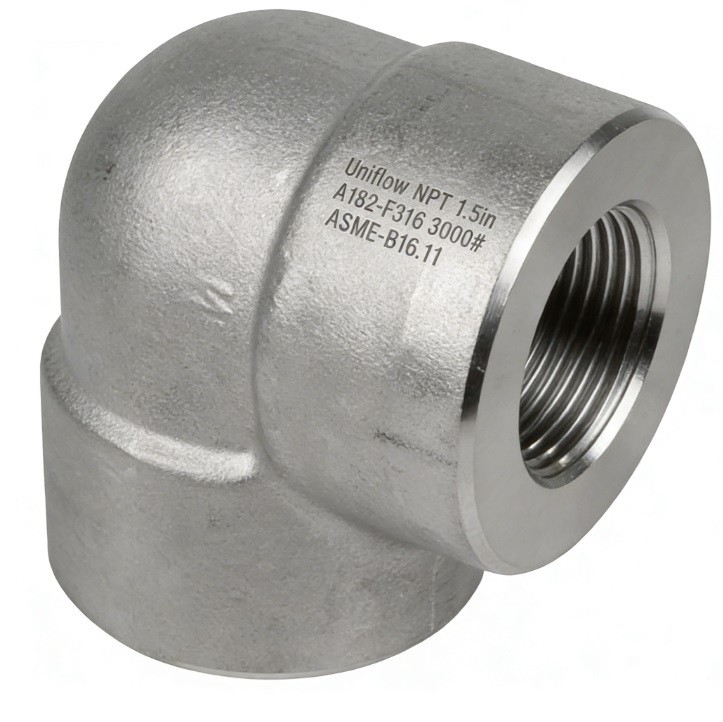

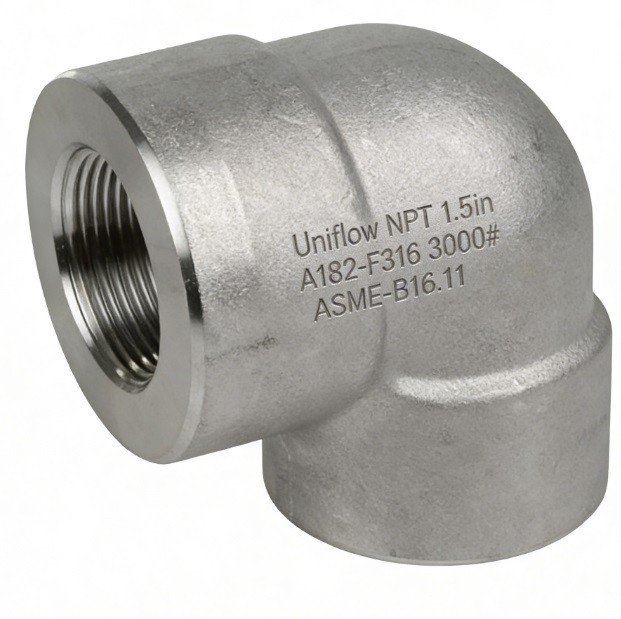

The ASME B16.11 Stainless Steel 3000# Threaded Elbow is a high-pressure fitting for directional changes in corrosive piping. Forged from grades like 316L or 316Ti, it provides exceptional resistance to pitting and oxidation. Featuring precision NPT or BSP threads, it allows for secure, weld-free assembly in pharmaceutical and chemical plants. Rated for 3000 PSI, it combines structural toughness with hygienic integrity, making it ideal for high-pressure instrumentation and process lines.
Technical Attributes: SS 3000# Threaded Elbow
Standard,ASME B16.11 / BS 3799
Material Grades,"ASTM A182 F304/L, F316/L, F316Ti, F321"
Fitting Type,90° or 45° Threaded Elbow
Pressure Class,3000 LBS (Class 3000)
Size Range,1/8" to 4" (NPS)
Thread Type (NPT),ASME B1.20.1 (Tapered)
Thread Type (BSP),BS 21 / ISO 7-1 (Tapered or Parallel)
Manufacturing,"Forged, Solution Annealed, Machined"
Chromium Content,16.0%–20.0%
Nickel Content,8.0%–14.0%
Molybdenum (316L),2.0%–3.0%
Titanium (316Ti),5×(C+N) min –0.70% max
Tensile Strength,≥485 MPa (70 ksi)
Yield Strength,≥170–205 MPa
Heat Treatment,Solution Annealing & Water Quench
Testing Standard,"PMI, PT (Liquid Penetrant), Thread Gauging"
Hardness,≤192 HBW
Surface Finish,Pickled and Passivated
Certification,EN 10204 3.1 / MTR
Primary Use,"Chemical, Food, & Marine High-Pressure Lines"
