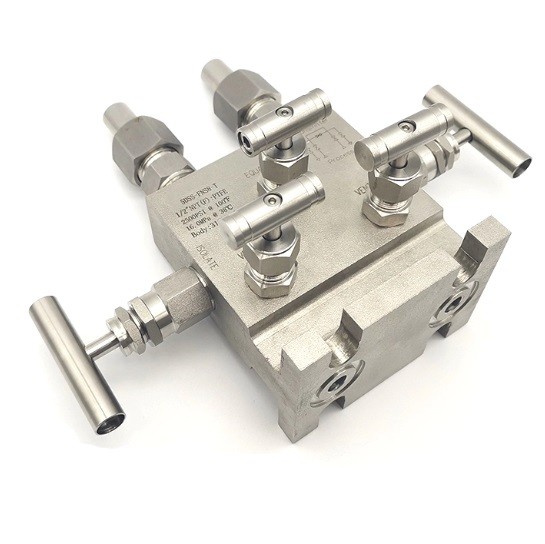

5 Way Manifold Valve T Type

The T-type (horizontal inline/T-shaped) 5-way instrumentation manifold valve is a comprehensive fluid control solution designed for direct integration with differential pressure transmitters. Machined from a single block of heavy-duty forged 316 stainless steel, it features five distinct needle valves: two for process isolation, one for equalization, and two for controlled venting or bleeding. This intricate layout allows operators to completely isolate process media, vent residual pressure trapped within the instrument chambers, and equalize pressure lines safely during standard routine zero-point adjustments and field maintenance, ensuring zero external emissions and maximal grid protection.

Technical Specifications

• Manifold Design Configuration: T-Type / Horizontal Inline / 丁字型 5-Way Instrument Manifold

• Valve Component Layout: Two Isolation Valves, One Equalizing Valve, and Two Vent/Bleed Valves

• Body Material Construction: High-grade Forged 316 Stainless Steel (ASTM A182 F316)

• Stem Tip Configuration: Non-rotating hardened chrome-plated stem tip to prevent seat scratching and galling

• Process Side Connection: 1/2" NPT Female threads (equipped with front-facing twin-ferrule compression unions)

• Instrument Side Connection: Direct flange-mount face matching standard differential pressure transmitters

• Flange Center Distance: Industry standard 2-1/8 inch (54mm) center-to-center spacing

• Nominal Pressure Rating: 2500 psi / 16.0 MPa (Can be customized up to 6000 psi / 42.0 MPa)

• Maximum Temperature (PTFE Seals): Up to 232°C (450°F) for aggressive chemical environments

• Maximum Temperature (Graphite Seals): Up to 648°C (1200°F) severe thermal steam application

• Packing Seal Compound: Chevron-style Teflon (PTFE) standard for low-torque performance

• Handle Assembly Design: Ergonomic heavy-duty metallic T-bar handles with safe locking set-screws

• Safety Mechanism: Anti-blowout lower stem configuration preventing stem ejection under severe line shocks

• Orifice Clearance Size: 0.156 inch (4.0mm) precision straight bore for lag-free signal transmission

• Flow Coefficient (Cv Rating): 0.52 fully unseated for optimized response times

• Flange Gasket Interface: Precision-machined ring grooves complete with dual high-integrity sealing O-rings

• Testing Guidelines Met: 100% factory hydrostatic shell and pneumatic seat integrity tested to API 598

• Environmental Compliance: Certified low-emission packing systems conforming to ISO 15848-1 standards

• Sour Gas Compatibility: Designed and documented to comply with NACE MR0175 / ISO 15156 standards

• Traceability Protocols: Heat code tracking, shell rating, and material stamp permanently laser-etched on the forged block
