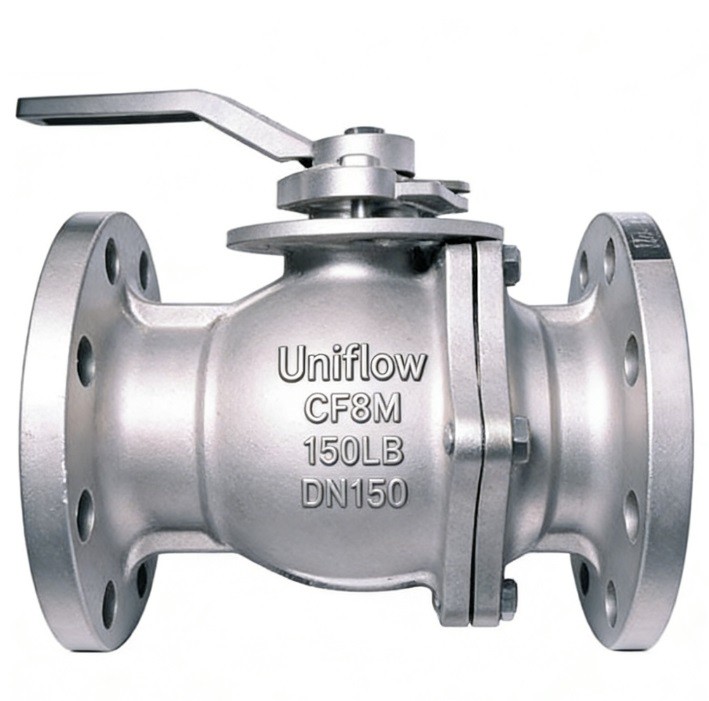

The 150LBS Stainless Steel Full Bore Floating Ball Valve is a versatile isolation valve designed for low-to-medium pressure systems. Its Full Bore construction ensures the internal diameter matches the pipeline, eliminating flow resistance and pressure drop. The "floating" ball is pushed against the downstream seat by line pressure to create a bubble-tight seal. Made from high-grade stainless steel (CF8/CF8M), it offers excellent corrosion resistance for chemical, food, and water industries.
Technical Attribute Table: 150LBS SS Floating Ball Valve
1,Design Standard,ASME B16.34 / API 608 / ISO 17292
2,Pressure Class,ASME Class 150 (150LBS)
3,Body Material,ASTM A351 CF8 / CF8M / CF3M
4,Ball Material,SS304 / SS316 / SS316L
5,Nominal Diameter,1/2" to 10" (Floating Type Limit)
6,Bore Type,Full Bore (Maximum Flow)
7,Face-to-Face,ASME B16.10
8,Flange Connection,ASME B16.5 RF (Raised Face)
9,Seat Material,PTFE / RPTFE (Reinforced PTFE)
10,Stem Design,Blow-out Proof Stem
11,Anti-Static Device,Included (Spring-loaded contact)
12,Fire Safe Design,Optional to API 607 / ISO 10497
13,Stem Seal,PTFE V-Ring / Flexible Graphite
14,Operation,Lever / Gear / Actuator
15,Mounting Pad,ISO 5211 (For direct automation)
16,Temperature Range,−29℃ to +180 (Soft Seat)
17,Shell Test Pressure,3.1 MPa (approx. 450 psi)
18,Seat Test Pressure,2.2 MPa (approx. 320 psi)
19,Tightness Class,API 598 / EN 12266-1 Rate A
20,Surface Finish,Pickled/Passivated or Shot Blasted
