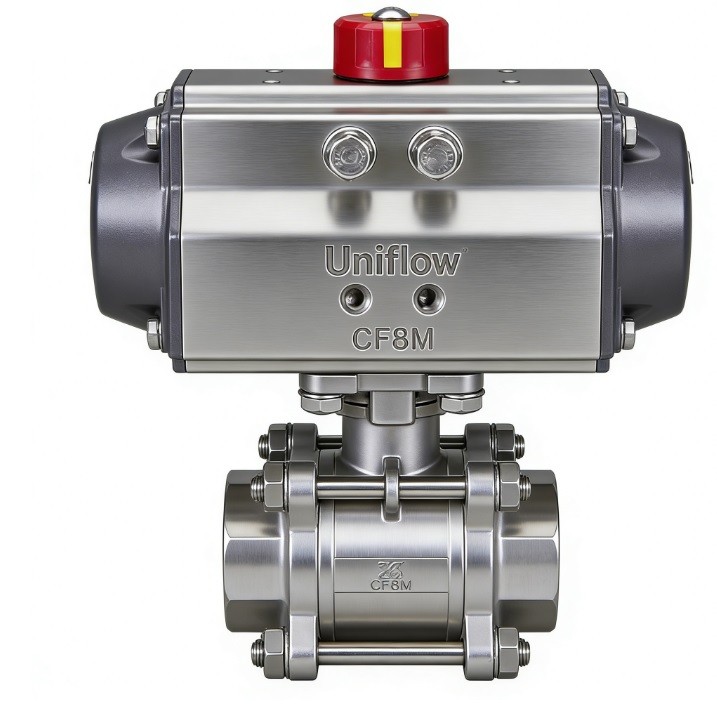

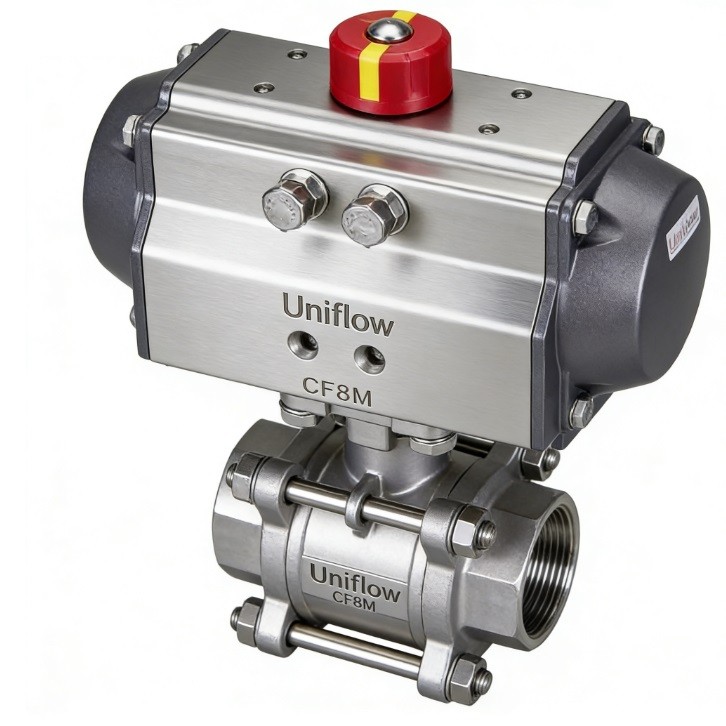

The 3-piece pneumatic ball valve is a high-performance automated solution for industrial flow control. Its "3-piece" body features a center section and two end caps, allowing for easy in-line maintenance without disturbing the pipework.
The full bore design ensures the internal diameter matches the pipe, providing zero flow restriction and minimal pressure drop. Powered by a pneumatic actuator, it offers rapid, reliable on/off cycling for water, oil, or gas systems.
Technical Attributes
1,Body Design,3-Piece (Swing-out design for easy maintenance)
2,Bore Type,Full Bore (Port diameter equals pipe diameter)
3,Size Range,DN15 to DN100 (1/2" to 4")
4,Pressure Rating,1000 PSI (PN63) / 2000 PSI / PN16-PN40
5,Body Material,Stainless Steel (CF8M / SS316) or Carbon Steel (WCB)
6,Seat Material,PTFE / RPTFE (Standard) or PPL (High Temp)
7,Stem Design,Blow-out Proof Stem with Anti-Static Device
8,Actuator Type,Pneumatic Rack & Pinion (Double Acting or Spring Return)
9,Air Supply Pressure,2 to 8 Bar (Typically 5.5 Bar / 80 PSI)
10,End Connections,"Threaded (NPT/BSP), Socket Weld, or Butt Weld"
11,Actuator Housing,Anodized Aluminum / Stainless Steel / Technopolymer
12,Mounting Pad,ISO 5211 (Direct mount for easy automation)
13,Working Temp.,−20∘C to +180∘C (Standard PTFE seats)
14,Optional Accessories,"Limit Switch Box, Solenoid Valve, Positioner"
15,Tightness Class,API 598 / EN 12266-1 Rate A (Bubble Tight)
