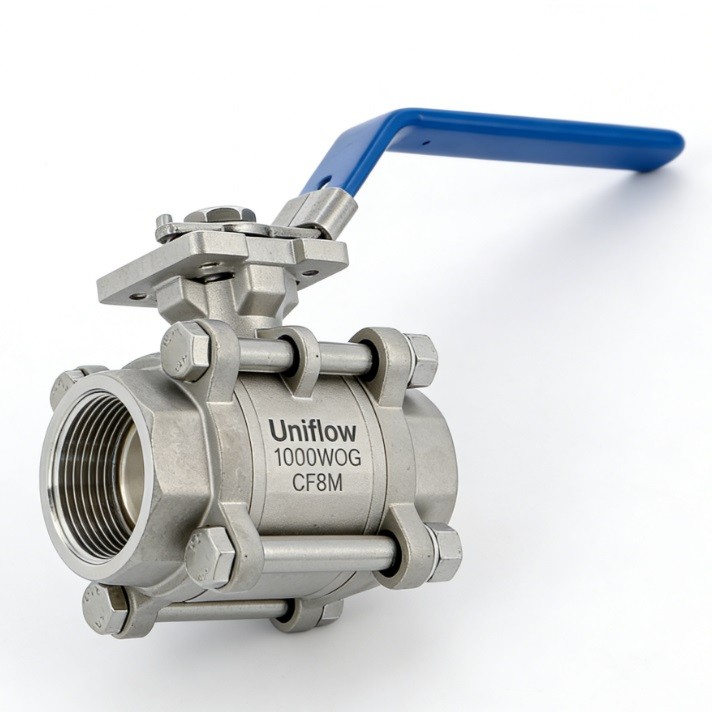

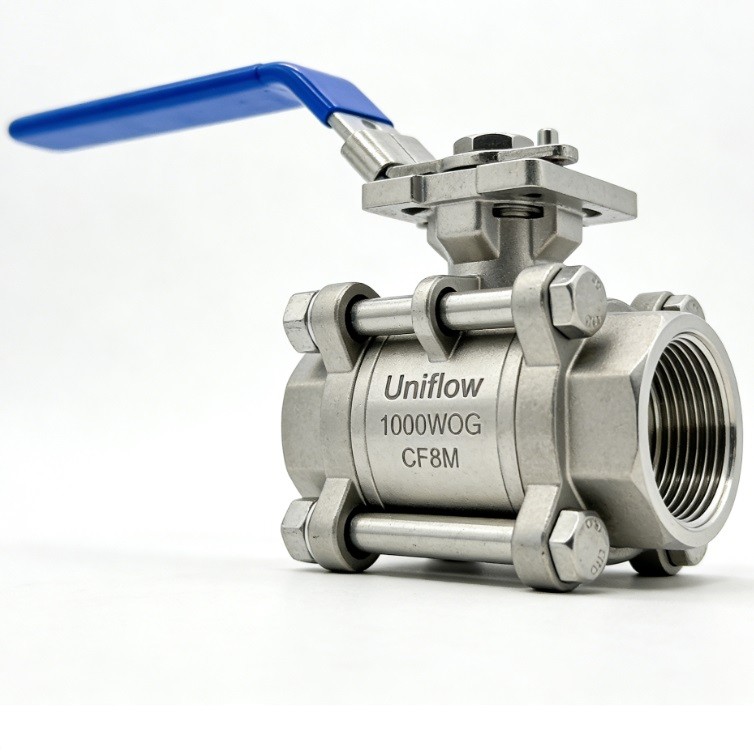

3-Piece Full Bore DIN 3202 M3 Ball Valves are high-performance valves built to European dimensional standards. The M3 length specification ensures the face-to-face dimensions are standardized, allowing for easy interchangeability in existing pipelines. Featuring a 3-piece swing-out design and 316 Stainless Steel construction, they offer a Full Bore flow path and a PN 63 rating. They are the professional choice for European chemical, food, and pharmaceutical processing.
Technical Attributes: 3-Piece Full Bore DIN 3202 M3 Ball Valve
Standardization,DIN 3202-M3 (Face-to-Face Length)
Body Construction,3-Piece Bolted (Two End Caps + One Center Body)
Bore Design,Full Bore (Unrestricted Flow)
Pressure Rating,PN 63 (1000 PSI / 6.3 MPa)
Material Grade,1.4408 (CF8M / 316 Stainless Steel)
End Connections,Female Threaded (DIN 2999) or Butt Weld / Socket Weld
Size Range,DN8 to DN100 (1/4" to 4")
Seat Material,TFM 1600 or RPTFE (Reinforced Teflon)
Stem Design,Blow-out Proof Stem / Anti-Static Device
Temperature Range,−25∘C to +180∘C
Handle Style,Heavy Duty Lever with Locking Device
Testing Standard,DIN EN 12266-1 / API 598
Compliance,PED 2014/68/EU & AD2000-W0
