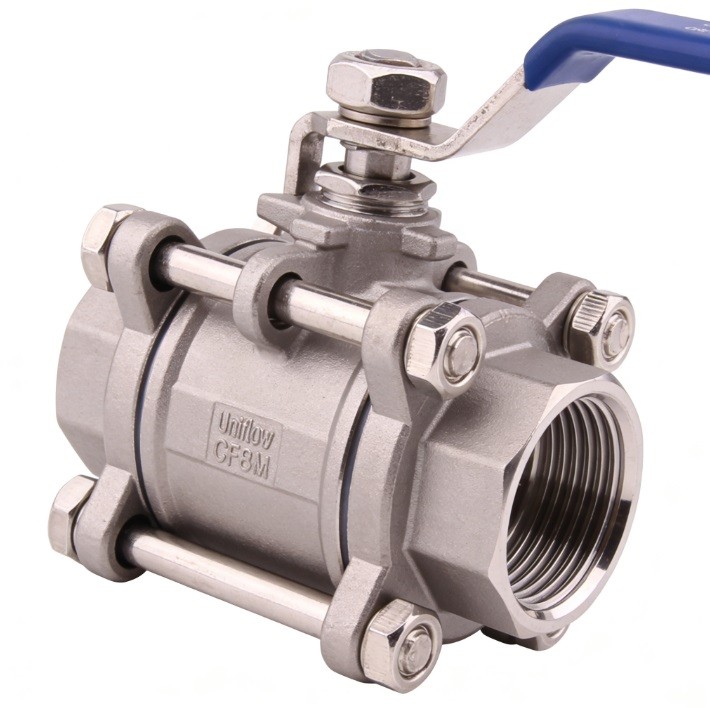

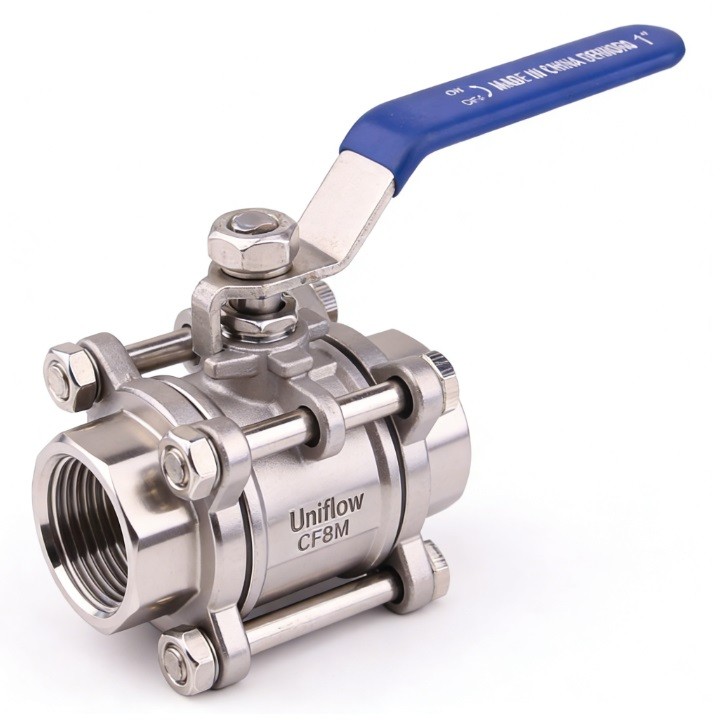

The 3-piece full bore NPT ball valve is a versatile industrial valve designed for easy maintenance. Its three-piece body allows the center section to be removed for seal replacement without unscrewing the end caps from the pipe. The full bore design matches the pipe's inner diameter, ensuring maximum flow and zero pressure drop. Featuring NPT (National Pipe Thread) ends, it provides a secure, tapered seal for high-pressure water, oil, and gas applications.
Technical Attributes
1,Body Configuration,3-Piece (Center section swings out for maintenance)
2,Port Design,Full Bore (Unrestricted flow path)
3,End Connection,NPT Threaded (ASME B1.20.1)
4,Size Range,1/4" to 4" (DN8 to DN100)
5,Pressure Rating,1000 PSI (WOG) / 2000 PSI / PN63
6,Body Material,Stainless Steel (CF8M / 316) or Carbon Steel (WCB)
7,Seat Material,PTFE / Reinforced PTFE (RPTFE)
8,Stem Design,Blow-out Proof with adjustable packing
9,Operation,Heavy-duty Locking Lever Handle (Manual)
10,Safety Feature,Integrated Locking Device (on handle)
11,Mounting Pad,ISO 5211 (Optional for future automation)
12,Working Temp.,−20∘C to +180∘C (Standard PTFE seats)
