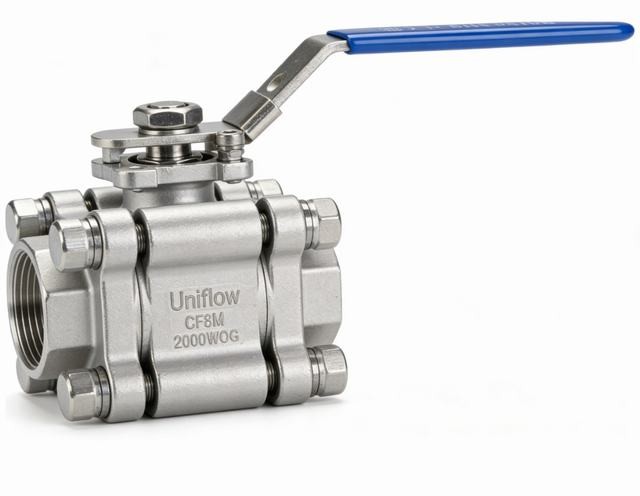

The 3-PC 2000WOG High Pressure Ball Valve is a heavy-duty industrial valve designed for extreme conditions. The 2000WOG rating signifies it can handle 2000 PSI of Water, Oil, or Gas pressure at ambient temperatures. Its 3-piece body allows for easy in-line maintenance, while the full port design ensures maximum flow with zero restriction. Built typically from forged or cast stainless steel, it is the standard for hydraulic, oilfield, and high-pressure process systems.
Technical Attributes
1,Pressure Rating,2000 PSI (WOG) / PN140
2,Body Design,3-Piece (Bolted construction)
3,Size Range,1/4" to 2" (Typical for high pressure)
4,Port Design,Full Bore (Full Port)
5,Body Material,ASTM A351 CF8M (316 SS) / WCB Carbon Steel
6,Seat Material,Delrin / PEEK / Reinforced PTFE (RPTFE)
7,End Connections,"NPT Threaded, Socket Weld, or Butt Weld"
8,Stem Construction,Internal Entry / Blow-out Proof
9,Seal Quality,High-density encapsulated seats
10,Handle Type,Heavy-duty SS handle with vinyl sleeve & lock
11,Testing Standard,API 598 (High-pressure shell & seat test)
12,Working Temp.,−20∘C to +120∘C (Depending on seat)
