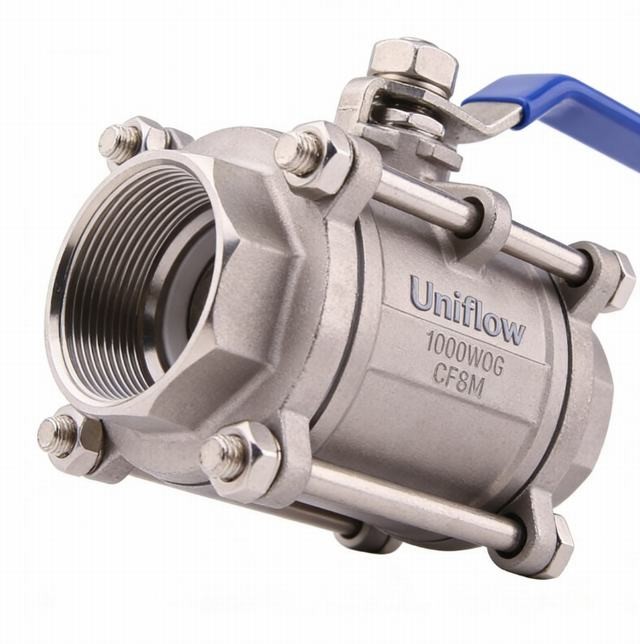

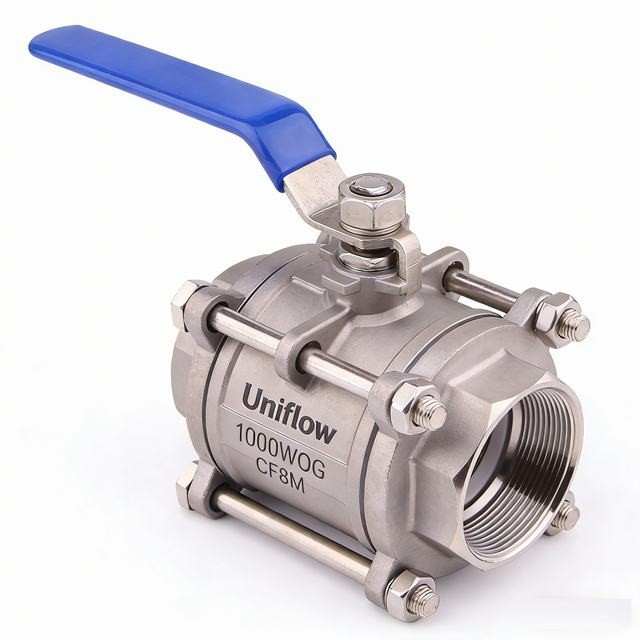

3-Piece Full Bore Economic Ball Valves are designed for maximum versatility and ease of maintenance. The "3-Piece" structure allows the center section containing the ball and seats to be swung out for cleaning or repair without disconnecting the ends from the pipe. The "Economic" model optimizes material weight for cost-efficiency while maintaining a PN 63 (1000 PSI) rating. With a Full Bore and 316 Stainless Steel build, they are the standard for process lines requiring frequent servicing.
Technical Attributes: 3-Piece Full Bore Economic Ball Valve
Body Construction,3-Piece (Two End Caps and One Center Body)
Bore Design,Full Bore (Unrestricted Flow)
Pressure Rating,PN 63 (1000 PSI / 6.3 MPa)
Material Grade,ASTM A351-CF8M (316 Stainless Steel)
End Connections,Female Threaded (NPT/BSP) or Socket Weld
Size Range,1/4" to 4" (DN8 - DN100)
Seat Material,PTFE (Teflon)
Stem Design,Blow-out Proof Stem
Body Seal,PTFE Gaskets
Temperature Range,−20∘C to +150∘C
Handle Style,Heavy Duty Lever with Locking Device
Bolt/Nut Material,304 Stainless Steel
