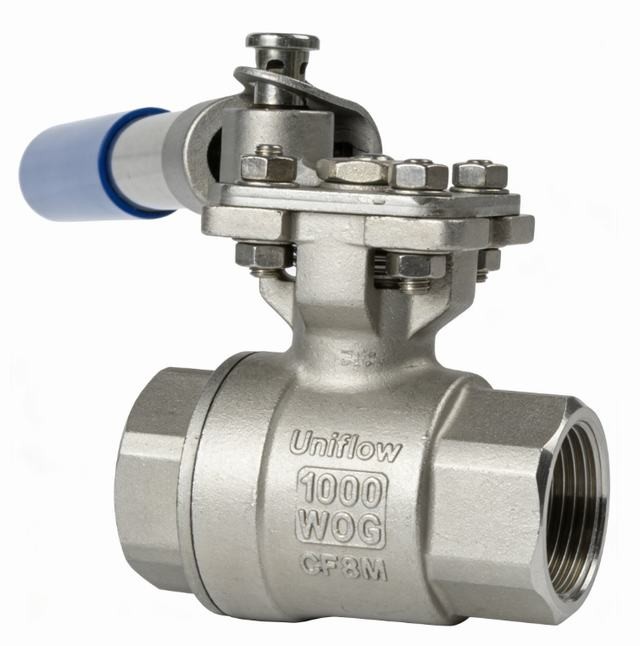

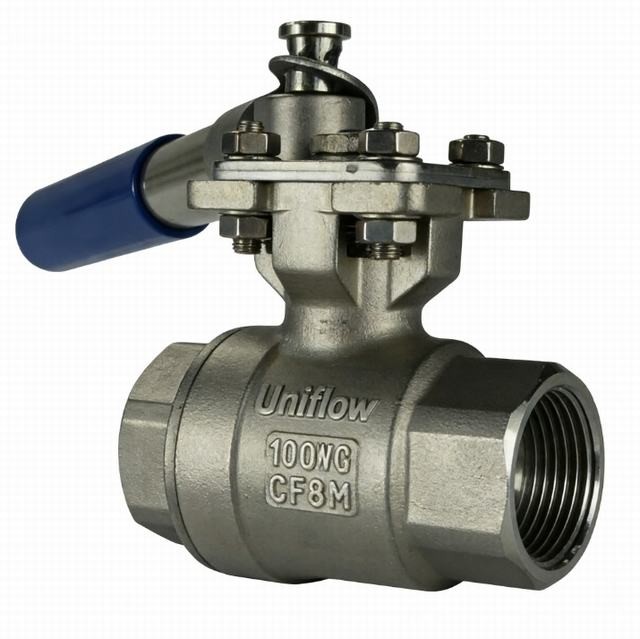

2-Piece Threaded Ball Valves with Spring Return Levers (also known as "Deadman" valves) are critical safety components designed for automatic closure. The spring-loaded handle ensures the valve returns to the fail-safe position (usually closed) the moment the operator releases it. This prevents accidental spills or discharge. Built from 316 Stainless Steel with a Full Bore and PN 63 rating, they are ideal for fuel loading, sampling, and hazardous chemical transfer.
Would you like the technical attributes table for these spring-return valves?
Technical Attributes: 2-PC Ball Valve with Spring Return Lever
Body Construction,2-Piece Bolted / Threaded Body
Fail-Safe Action,Spring-to-Close (Standard) or Spring-to-Open
Bore Design,Full Bore (Unrestricted Flow)
Pressure Rating,PN 63 (1000 PSI / 6.3 MPa)
Material Grade,ASTM A351-CF8M (316 Stainless Steel)
End Connections,Female to Female (F/F) NPT or BSPP
Seat Material,Reinforced PTFE (RPTFE) for durability
Stem Design,High-Cycle Blow-out Proof Stem
Handle Mechanism,Integrated Heavy-Duty Torsion Spring
Temperature Range,−20∘C to +180∘C
Testing Standard,API 598 / EN 12266-1
Size Range,1/4" to 2" (Larger sizes require high torque)
